Product Description
Rotary Drum Dryer Wood Shavings Dryer Machine

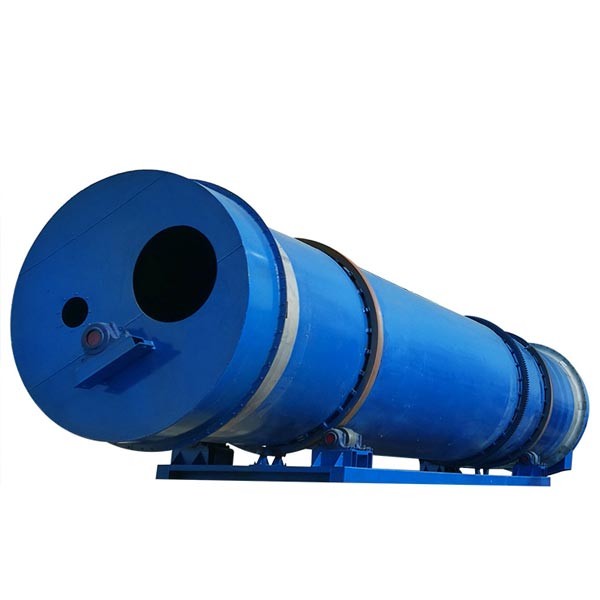

Introduction to the rotary drum dryer
This rotary drum dryer is also called a roller dryer due to its constructions. It is widely used for drying various materials straw, charcoal, wood chips, sawdust, and so on. Taking wood chips as an example, this drum dryer by ThoYu Machinery can reduce the wood chips moisture content from 40-55% to below 10% according to the specific requirements.

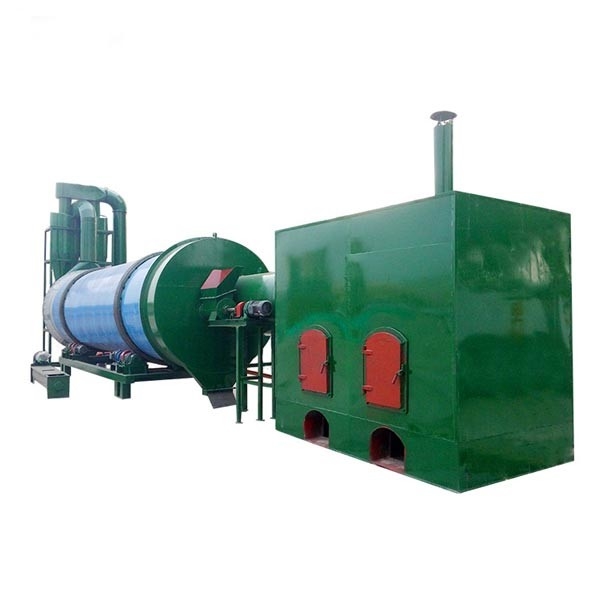

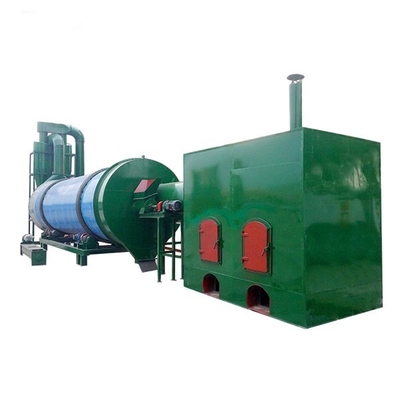

The rotary drum dryer mainly comprises a horizontally inclined rotating drum, air tube, hot air furnace, high-pressure draught fan, electric control box, etc. The drum dryer is very simple to operate to control the pressure, temperature, and moisture within the drum, and the speed of drum rotation.
Technical parameters of rotatory drum dryer
| Model |
Capacity(t/d) |
Vaporization Capacity(t/h) |
Early Moisture(%) |
Final Moisture(%) |
Drying Temperature(℃) |
Total Motor Power(kW) |
Total Weight(kg) |
Cover Area(m²) |
| TYGT1210 |
44.0-19.5 |
0.565 |
35-50% |
12-15% |
270±30℃ |
28 |
13500 |
5m×15m |
| TYTG1409 |
46.5-20.5 |
0.595 |
34 |
15500 |
5m×15m |
| TYGT1615 |
88.0-39.0 |
1.130 |
45 |
19500 |
6m×22m |
| TYTG2010/3 |
144.5-63.5 |
1.850 |
78 |
25000 |
8m×18m |
| TYTG2210/3 |
154.0-67.5 |
1.976 |
85 |
27000 |
8m×18m |
| TYTG2510/3 |
193.0-83.5 |
2.427 |
110 |
35000 |
10m×18m |
| TYTG2512/3 |
227.0-100.0 |
2.912 |
125 |
38000 |
10m*20m |
| TYTG2912/3 |
268.0-120.0 |
3.432 |
135 |
43500 |
10m*22m |
Rotary drum wood chips dryer advantages
1. Highly adjustable. The parameters of the drum dryer such as pressure, temperature, moisture, and rotation speed can be adjusted.
2. Large amount processing capacity.
3. Easy to maintain and clean.
4. High efficiency and low energy consumption.
5. Environment friendly.
