95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-60 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYTG2512/3

Detail Information

Product Name: Three Layers Rotary Drum Wood Chip Dryer Day Capacity: 100-227 T/d
Early Moisture: 35%-50% Final Moisture: 10%-15%
Motor Power: 125 KW Dimension: 10m*20m
High Light:

Rotary Drum Wood Chip Dryer

,

Three Layers Wood Chip Dryer

,

rotary vacuum dryer

Product Description

95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer



Introduction of 95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer

Three layers rotary drum wood chip dryer is designed for drying wood chips, sawdust, and wood shavings, improve its thermal efficiency, and protect the environment.

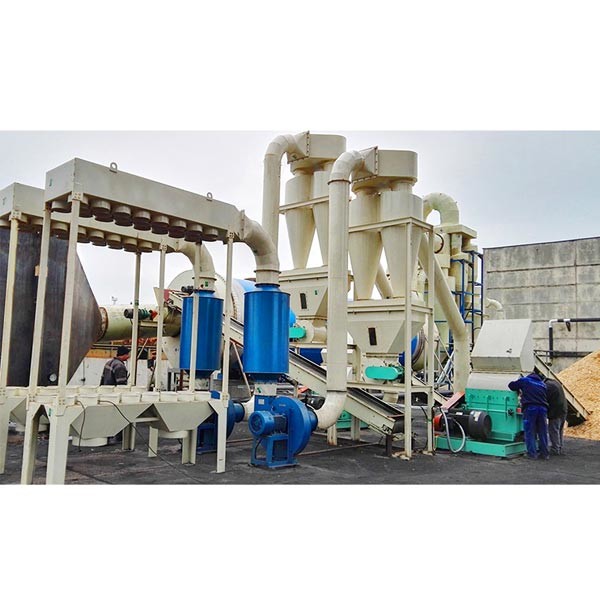

Three layers rotary drum wood chip dryer plant includes heating part, feeding machine, rotary dryer, discharging machine, and cyclone dust collector. ThoYu is a professional sawdust dryer manufacturer, has got popular at home and abroad.

95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer 0

Technical Parameters of Three Layers Rotary Drum Wood Chip Dryer

Model

Capacity

(t/d)

Vaporization Capacity(t/h)

Early Moisture

(%)

Final Moisture

(%)

Drying Temperature

(℃)

Total Motor Power

(kW)

Total Weight

(kg)

Cover Area(m²)
TYGT1210 44.0-19.5 0.565 35-50% 12-15% 270±30℃ 28 13500 5m×15m
TYTG1409 46.5-20.5 0.595 34 15500 5m×15m
TYGT1615 88.0-39.0 1.130 45 19500 6m×22m
TYTG2010/3 144.5-63.5 1.850 78 25000 8m×18m
TYTG2210/3 154.0-67.5 1.976 85 27000 8m×18m
TYTG2510/3 193.0-83.5 2.427 110 35000 10m×18m
TYTG2512/3 227.0-100.0 2.912 125 38000 10m×20m
TYTG2912/3 268.0-120.0 3.432 135 43500 10m×22m




95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer 1

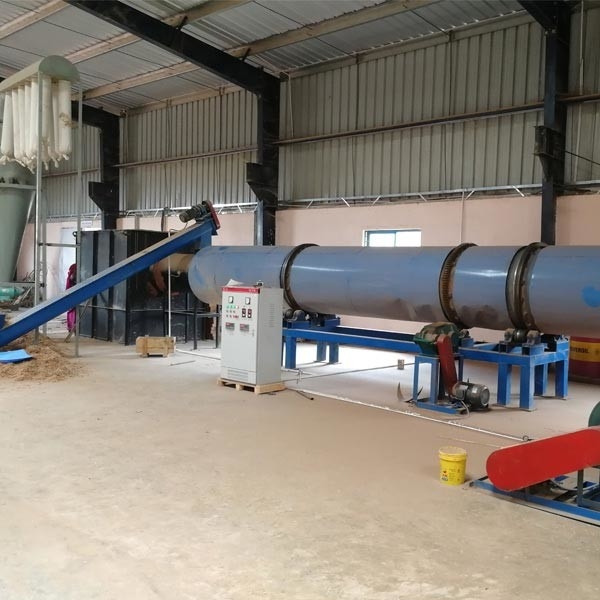

Three Layers Rotary Drum Wood Chip Dryer Working Principle
The wet material will be conveyed into the inner layer with hot air first, then go to the second layer and outer layer until it exhausts with hot air.
At the same time, the hot air and raw material will make the hot exchange. The inside angle plate is designed to scatter wet wood or power to make a more hot exchange.

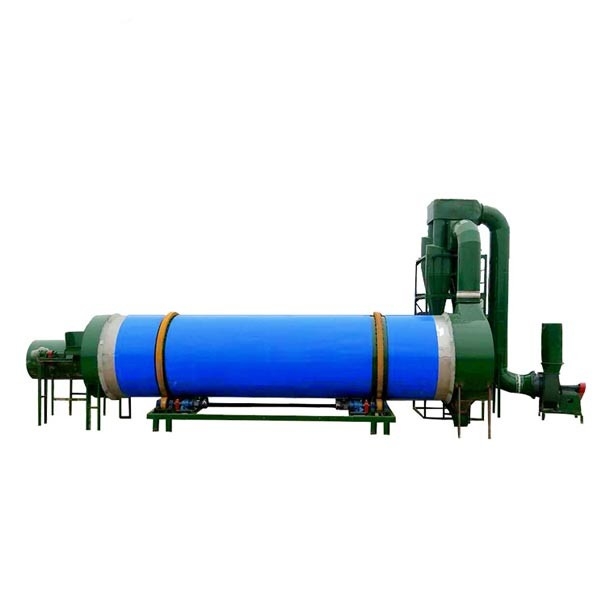

Three Layers Rotary Drum Wood Chip Dryer Advantages

  1. Multiple heating sources. Customers can choose the heating source according to their situation, we can design customized solutions.
  2. Designed inner structure for sawdust material. High drying efficiency to 90-95%.
  3. The system is equipped with a PLC system and video monitoring system, with a high degree of automation and simple operation.
  4. The system has a unique sealing structure and no thermal energy leakage.
  5. Low investment, low operating cost, and short investment recovery time.
  6. Use the best quality parts, make sure the safe and reliable operation.

95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer 2

What we can assure our client?

  1. Fully technology support, free factory design, and reasonable drying plant layout.
  2. 1-year guarantee.
  3. 100% carry out a contract.
  4. We can send the engineer overseas to install at the site.
  5. Reasonable price and use good raw materials.



95% Drying Efficiency Three Layers Rotary Drum Wood Chip Dryer 3
