Hot Air Flow Pipe Sawdust Wood Shavings Chips Dryer

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYQL-30

Detail Information

Product Name: Air Flow Pipe Dryer Total Power: 7.5 KW
Capacity Per Hour: 800 Kg Pipe Diameter: 220-320 Mm
Pipe Thickness: 2 Mm Supply Air Volume: 9000 M3/h
High Light:

Feed Grain Wood Chip Dryer


Hot Air Flow Wood Chip Dryer


Wood Chips Rotary Dryers

Product Description

Multi-Purpose Hot Air Flow Pipe Dryer For Sawdust Wood Shavings Chips


Air flow pipe dryer is to use hot air flow to dry materials containing a large amount of moisture, this equipment can not only dry granular wet materials but also wet sawdust, wet wood chips, is a multi-purpose drying equipment.


The air flow pipe dryer is mainly composed of air heater, feeder, airflow drying tube, cyclone separator, fan, and several important parts.


Due to the high airflow velocity, material dispersion, the entire surface of the material can be used as the drying area, so the drying area increases, and at the same time, due to the dispersal and agitation during drying, the gasification surface is constantly renewed, so the intensity of the drying heat transfer process, drying time is short, the contact time between the material and the air is short, the drying time is generally 0.5 to 5 seconds, for heat-sensitive or low-voltage dryer, the drying time is generally 0.5 to 5 seconds. Melting point does not cause overheating or decomposition that could affect the quality of the material.


Air flow pipe dryer technical parameters


Air Flow Pipe Dryer
Model TYQL-30 TYQL-40
Power (kW) 7.5 7.5
Capacity (kg/h) 800 900
Big pipe diameter (mm) 320 400
Small pipe diameter (mm) 220 320
Pipe thickness (mm) 2 2
Supply air volume (m3/h) 9000 10000
Energy efficiency index 85% 85%
Moisture content of raw materials 20% 30%
Note: customized service is available.

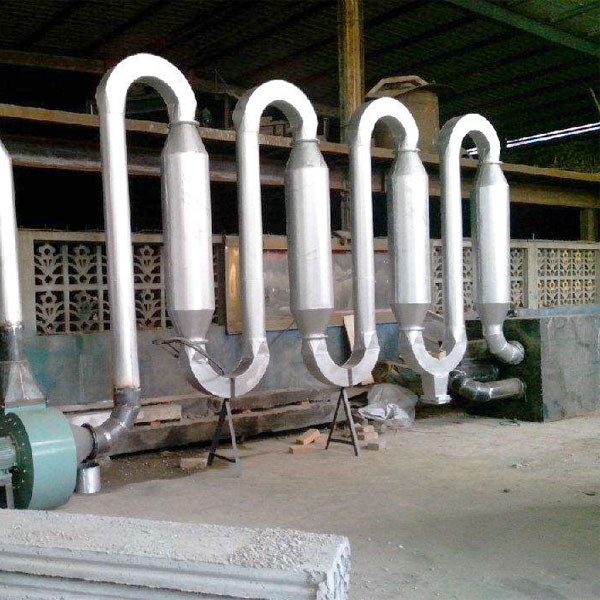

Hot Air Flow Pipe Sawdust Wood Shavings Chips Dryer 0


Air flow pipe dryer working principle


The drying principle is relatively simple to understand, mainly using a screw conveyor to transport wet materials to the drying tube, in the high-speed transport and dispersion of hot air currents, wet materials in the hot air currents, full contact, so that the moisture in the wet material evaporation, powder or granular dry products, and then complete the drying process of materials.


Air flow pipe dryer technical features

  1. Short drying time, a drying is about 0.5-5s.
  2. strong drying capacity, the material is suspended in the airflow dryer, full contact with the hot stream, high drying efficiency.
  3. The airflow dryer adopts the serpentine tubular structure, which can be applied to various spaces and occupies a small area.
  4. The airflow dryer has a long service life and no wearing parts.
  5. The airflow dryer has a high degree of automation, which can adjust the drying temperature and speed in real time according to the needs of the product, and has a good drying effect on raw materials of various humidity.
  6. Automatic feeding, more convenient than the traditional manual feeding. And can save labor.
  7. Long drying distance, good drying effect.
  8. The use of dust-free design and thus the worker's operating environment has been greatly improved.

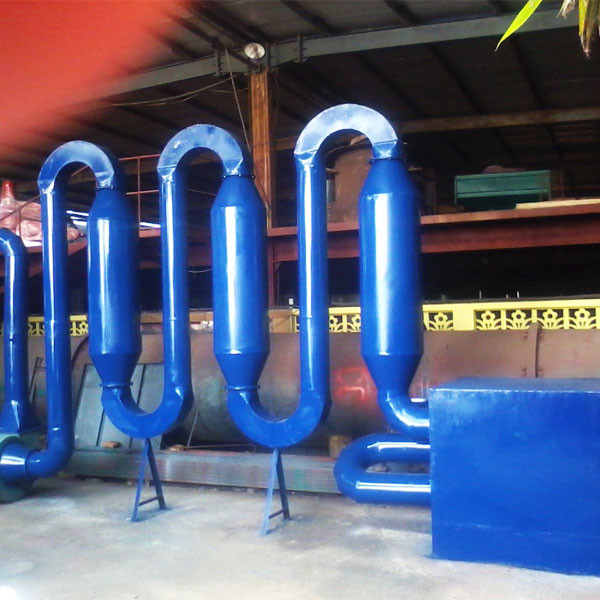

Hot Air Flow Pipe Sawdust Wood Shavings Chips Dryer 1

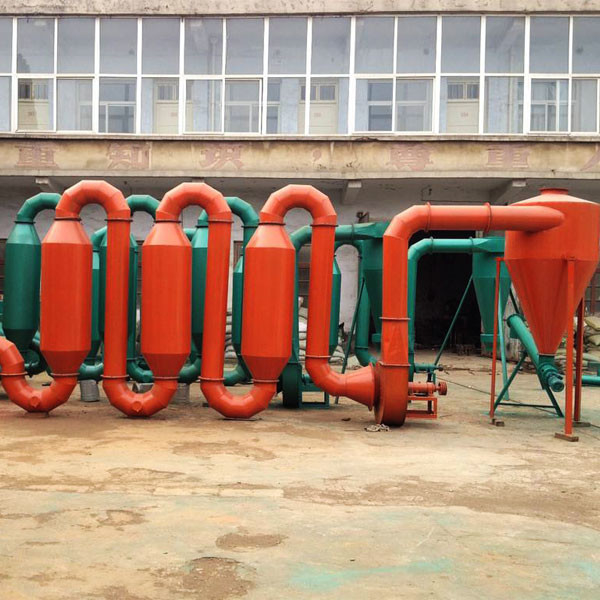

Hot Air Flow Pipe Sawdust Wood Shavings Chips Dryer 2
