240 Pieces Day Output Pressed Wooden Pallet Making Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-50 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 18 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1000, TY-1200

Detail Information

Item: 240 Pieces Day Output Pressed Wooden Pallet Making Machine Day Output: 240 Pieces Of Wood Pallets
Application: Wood Pallets Production Function: Producing Wood Pallets
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
High Light:

pressed wooden pallet machine

,

wooden pallet making machine

,

pressed wooden pallet making machine

Product Description

240 Pieces Day Output Pressed Wooden Pallet Making Machine

Introduction of 240 Pieces Day Output Pressed Wooden Pallet Making Machine

240 Pieces Day Output Pressed Wooden Pallet Making Machine is a new type of one-time forming machine, which produces pressed wood pallets using wood wastes. 240 Pieces Day Output Pressed Wooden Pallet Making Machine not only can deal with wood leftover materials, but also can produce pallets to gain more value.

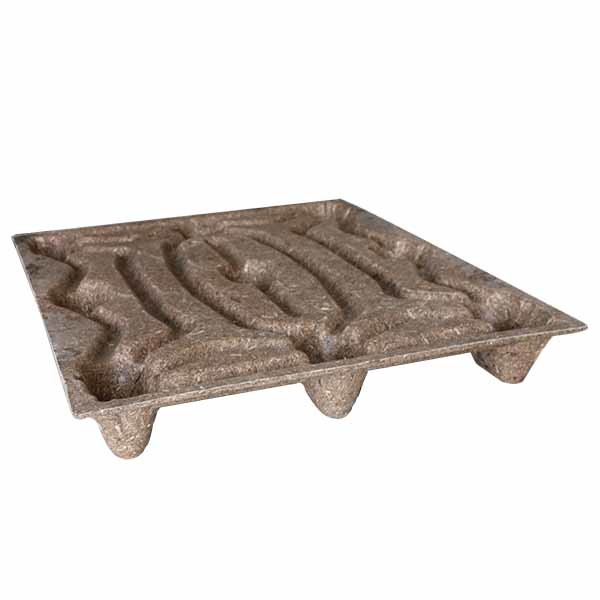

Press wood pallet, the full name is the plant fiber molded industrial plane pallet. Normally wood chips and plant straws are the raw materials. We tested different materials and expanded the range to wood waste board sawdust and shavings, waste pallets, bagasse, wheat straw and cotton straw, waste furniture, and so on.

240 Pieces Day Output Pressed Wooden Pallet Making Machine 0

Technical Parameters of 240 Pieces Day Output Pressed Wooden Pallet Making Machine:

Model TY-1000 TY-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pieces/day (24 hours) 240 pieces /day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 tons (adjustable) 0-1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm

240 Pieces Day Output Pressed Wooden Pallet Making Machine 1

Technological Flow of 240 Pieces Day Output Pressed Wooden Pallet Making Machine:

There are two main workshop sections: preparing raw material preparation and pressure forming section.

The first workshop section: preparing raw materials

Raw materials: waste wood, scraps of the wood, sawdust, wood shaving, wood chips, big chips, raw wood, burned forest, logs, wood board, branches, timber, wood flakes, waste furniture, and waste pallets, and so on. Anything contenting rich fiber also can be used to produce the pallets, such as straw, waste kraft paper, bamboo, palm trees, coconut, softwood, cotton straw, wheat straw, corn straw, bagasse, and miscanthus, and so on.

The second workshop section: pressure forming section

The pressure forming section is the core part of the 240 Pieces Day Output Pressed Wooden Pallet Making Machine. 240 Pieces Day Output Pressed Wooden Pallet Making Machine adopts one-time molding process to produce pressed wood pallets.

240 Pieces Day Output Pressed Wooden Pallet Making Machine 2

Advantages of 240 Pieces Day Output Pressed Wooden Pallet Making Machine

1. With the dwindling of the forest resources, fully taking advantage of small-diameter timber, branches, and wood processing residues is becoming more and more important and press wood pallets come into being, which exactly is the future of pallets.

2. The raw materials for 240 Pieces Day Output Pressed Wooden Pallet Making Machine are wood leftover materials, which are abundant all over the world. 240 Pieces Day Output Pressed Wooden Pallet Making Machine meets the requirement of environmental protection, which can help to recycle wood leftover materials into new pressed wood pallets.

3. Low production cost. The price of the raw materials is less than 50%, so the production cost is also lower than 50%. In addition, the technology process of 240 Pieces Day Output Pressed Wooden Pallet Making Machine is easier and easy to operate.



240 Pieces Day Output Pressed Wooden Pallet Making Machine 3
