Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-60 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1000

Detail Information

Product Name: Low-Cost Wood Pallet Machine For Making Coconut Fiber Pallet From China Yield: 240 Pieces/day
Application: Coconut Fiber Pallet Production Function: Coconut Fiber New Using
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

fiber pallet machine

,

wood pallet making machine

,

coconut pallet machine

Product Description

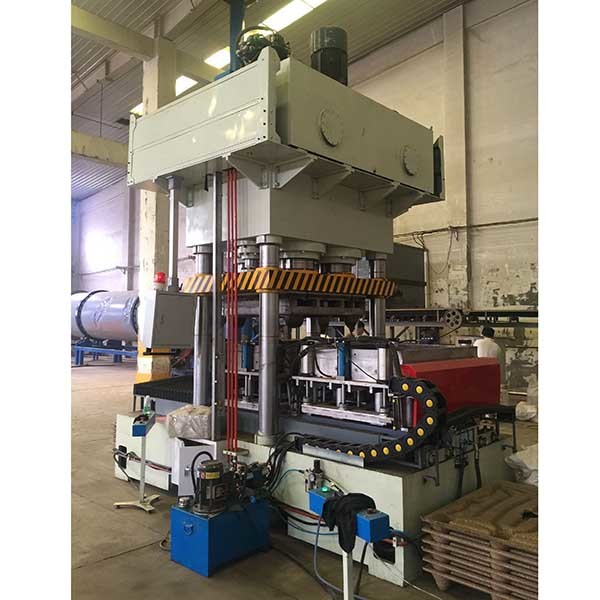

Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China



Introduction of Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China

Low-cost wood pallet machine for making coconut fiber pallet from China is designed for producing molded coconut fiber pallets with high temperature and high pressure.

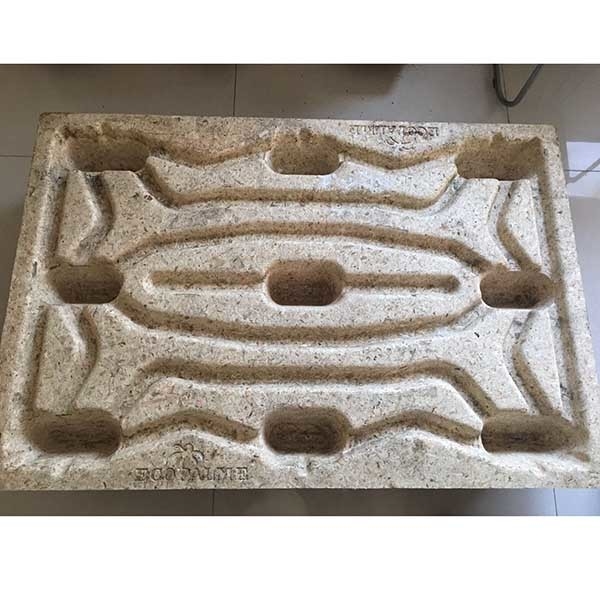

Molded coconut fiber pallet is one-time press molding with the overall structure of the board and 9 support feet. The upper surface of molded coconut fiber pallet plate is flat and smooth, to meet the transport of various goods, the lower surface with the stiffener. It is that the longitudinal and horizontal balance of the board, nine feet can meet the four-way distribution by the fork, and molded coconut fiber pallet is ideal for logistics transport.

Low-cost wood pallet machine for making coconut fiber pallet from China is the ideal equipment for coconut fiber new using. Low-cost wood Pallet machine for making coconut fiber pallet from China changes the waste into treasure, which processes wastes into new pressed pallets. Coconut husk fiber pallets are a sustainable alternative to existing wood and plastic pallets.

Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China 0

Technical Specifications of Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China:

Model TY-1000
Voltage 220 V/380 V, 50 Hz, three-phase
Capacity 240 pieces/day (24 hours)
Power 18.5 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0-1000 tons (adjustable)
Shaping cycle 350 seconds
Weight 22 tons
Dimension 2000*1400*3500 mm

Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China 1

Features of Molded Coconut Fiber Pallet

1. Ready for export

Low-cost wood pallet machine for making coconut fiber pallet from China produces the coconut fiber pallet with high pressure and high temperature. And it is a one-time forming pallet. The final coconut fiber pallets meet ISPM15 and are ready for export. Hence, it will save a lot of time required for the customs clearance process.

2. Low cost

The outer part called the husk of the coconut waste is used to make pallet, which is wasted. So the price of the raw material is very cheap, which also reduces the investment.

Specifications of Molded Coconut Fiber Pallet:

400 mm×600 mm, 600 mm×800 mm, 800 mm×1000 mm, 800 mm×1200 mm, 1000 mm×1200 mm, 1100 mm×1100 mm

Pallet weight varied from 10 kg~22 kg.

Loading capacity: 2 tons~3 tons (dynamic load) and 6 tones~8 tons (static load)

Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China 2

Characteristics of Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China:

1. High degree of automation

Low-cost wood pallet machine for making coconut fiber pallet from China adopts mechanical, pneumatic, and electrical integration. And each action program controlled by the PLC system. And it has a simple and convenient touch-screen operation.

2. Environmental protection

Low-cost wood pallet machine for making coconut fiber pallet from China is the ideal equipment for coconut fiber new using. And wood pallet machine for making coconut fiber pallet from China can change the waste into treasure, which processes waste coconut fiber into the new coconut fiber pallet.


Low-Cost Wood Pallet Machine for Making Coconut Fiber Pallet from China 3
