Fumigation Free Plant Fiber Pallets Making Machine With Strong Load Capacity

Brand Name: ThoYu
Model Number: TYYJ-1200
MOQ: 1 set
Price: Negotiation
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, Western Union,
Detail Information
Place of Origin:
China
Certification:
CE
Equipment:
Pallet Production Line Equipment
Output:
240 Pcs/day
Motor Power:
18.5 KW
Equipment Weight:
22 Tons
Raw Material:
Waste Wood
Pallet Size:
Customized
Packaging Details:
Strong wood pallet for global shipping
Supply Ability:
20 sets per month
Highlight:

pallets making machine

,

plant pallets making machine

,

plant fiber pallets machine

Product Description

Fumigation Free Plant Fiber Pallets Making Machine With Strong Load Capacity

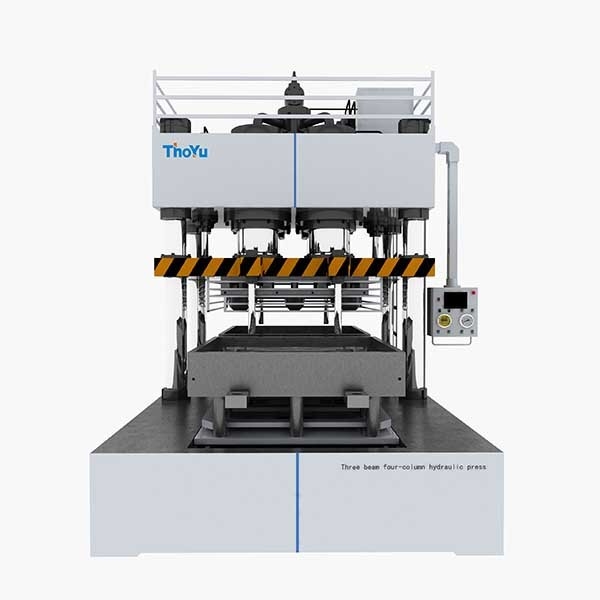

The pallet production line equipment mainly uses waste wood to produce pressed wooden pallets. It is a new type of environmentally friendly pallet production equipment. The production line equipment includes wood chipper, wood shredder, dryer, glue mixer and molded pallet press machine.





Technical Parameters of pallet production line equipment



Model TYYJ-1000 TYYJ-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pcs/day (24 hours) 240 pcs/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 tons (adjustable) 0-1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm



What materials can be used to produce pressed wood pallet?



The pressed wood pallets are any molded fiber material pallets made from wood chips, wood shavings and wood scraps, sawdust, coconut fibers, bagasse, and flax bonded together with an adhesive under high temperature and pressure.



Advantages of the pallet production line equipment

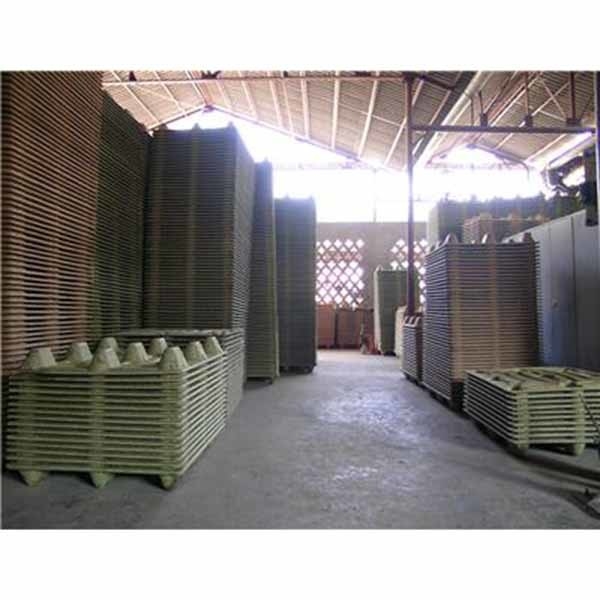

Single-sided molded pallets are the most common and most popular style among molded pallets. It is made by one-time pressing under high temperature and high pressure in the mold. Because its production process has been in a high temperature and high pressure environment, it has already killed the eggs and harmful substances that may be carried at high temperature, so it does not need to do any fumigation during the export process. Compared with traditional wood Pallet, it is simple and convenient, does not require any processing and presentation of any customs clearance documents.



Fumigation Free Plant Fiber Pallets Making Machine With Strong Load Capacity

Fumigation Free Plant Fiber Pallets Making Machine With Strong Load Capacity



What advantages do the pressed wood pallets outweigh the traditional solid wood pallets?

  • The pressed wood pallets are much lighter in weight and less expensive than the traditional solid wood pallets.
  • The pressed wood pallets are twice as stiff as new hardwood pallets so that they are more stable for improved product protection during transportation.
  • They perform greater resistance to fork-related, pallet edge damage compared to nailed pallet boards.
  • Since they are sanitized under high temperature and pressure during the molding process, there is no need for stamps and expensive heat treatments.
  • They are clean, free of listeria and other contaminants.
  • The bio-based pressed wood pallets typically price much less than hardwood pallets for using low-cost renewable, plant-based materials.
  • Most importantly, they are 100% recyclable. With a space-saving nestable design, light-weight molded presswood pallets are cost-effective alternatives to conventional heat-treated wood.
