Fumigation Free Plant Fiber Pallets Making Machine With Strong Load Capacity
Contact Person : Robin
Phone Number : +86-13733828553
WhatsApp : +8613733828553
|Minimum Order Quantity :||1 set||Price :||Negotiation|
|Packaging Details :||Strong wood pallet for global shipping||Delivery Time :||15-40 work days|
|Payment Terms :||L/C, D/A, Western Union, MoneyGram||Supply Ability :||20-40 sets per month|
|Place of Origin:||China||Brand Name:||ThoYu|
|Product Name:||Molded Paper Pallet Machine||Model:||TY-1200|
|Voltage:||220V/380V, 50Hz, Three-phase||Power:||33kW|
|Hydraulic Cylinder Diameter:||350 Mm||Hydraulic Cylinder Quantity:||4 Pieces|
|Shaping Cycle:||300 Seconds||Dimension:||4200*2200*3500 Mm|
paper recycling machine,
cardboard recycling machine,
paper pallet machine

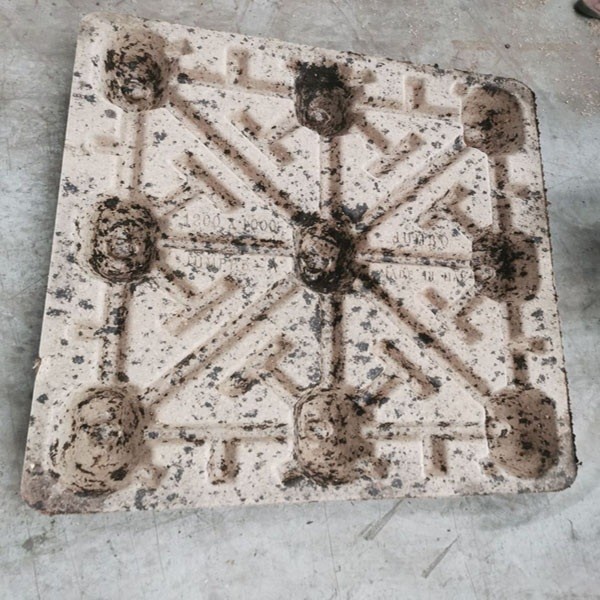

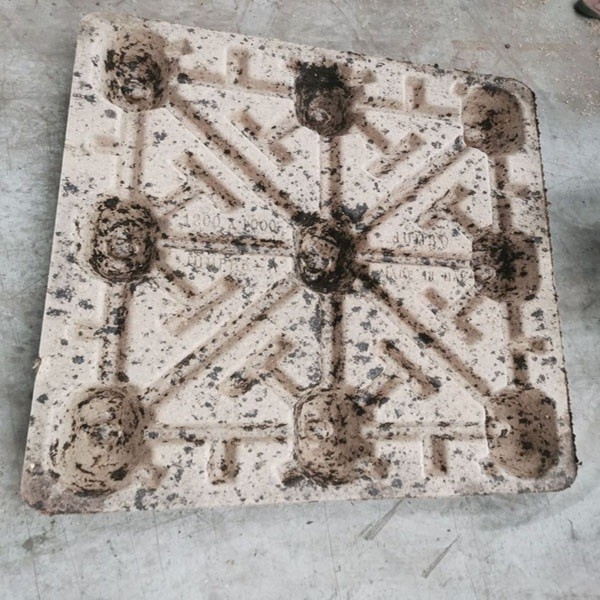

Molded Paper Pallet Machine Recycling Cardboard into Full Four-way Entry Pallet

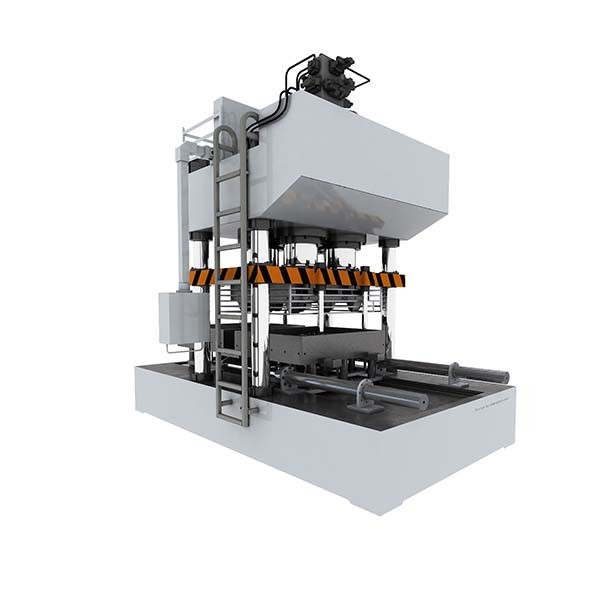

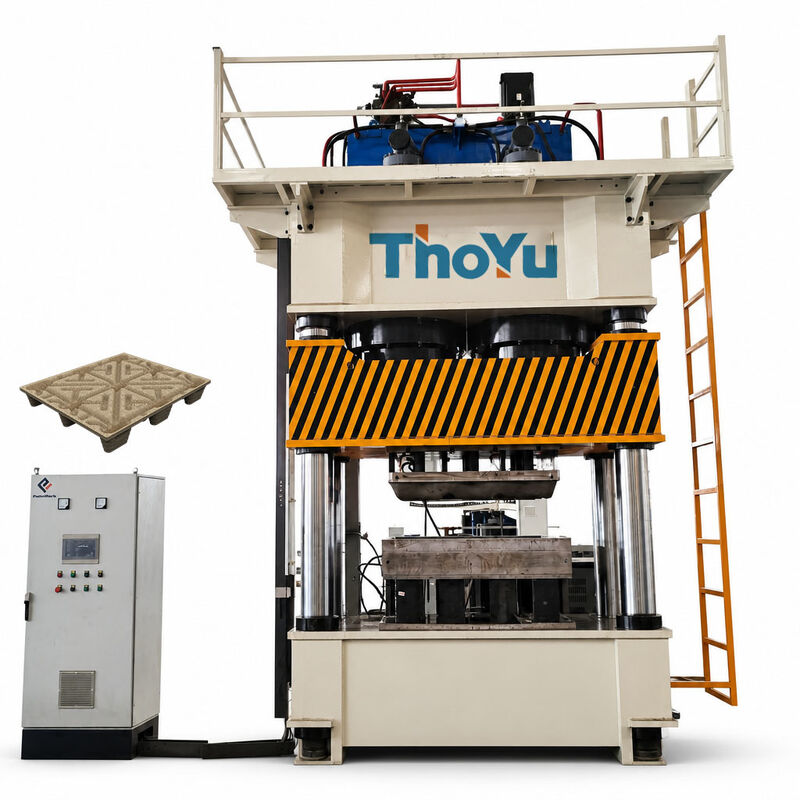

Introduction to the Molded Paper Pallet Machine
With this molded paper pallet machine, the process for recycling cardboard for making paper pallets is similar to that of the presswood pallets. The recycling cardboard is shredded into small pieces, and put into a glue mixing machine machine to mix with glue. After that, the paper materials can be put into the molded pallet machine to make into pallet under high temperature and pressure.
Technical Parameters of the Molded Paper Pallet Machine
|Voltage||220 V/380 V, 50 Hz, three-phase||220 V/380 V, 50 Hz, three-phase|
|Capacity||240 pcs/day (24 hours)||240 pcs/day (24 hours)|
|Power||18.5 kW||18.5 kW|
|Hydraulic cylinder diameter||350 mm||380 mm|
|Hydraulic cylinder quantity||4 pieces||4 pieces|
|Pressure||0-1000 tons (adjustable)||0-1200 tons (adjustable)|
|Shaping cycle||350 seconds||350 seconds|
|Weight||22 tons||22 tons|
|Dimension||2000*1400*3500 mm||2000*1400*3500 mm|
Advantages of the Molded Paper Pallet Machine
1. Advanced Technology. Through years of experience and expertise in pallet machinery manufacturing, ThoYu has tested successfully a wide range of raw materials for making molded presswood pallets such as waste wood, sawdust, wood chips, wood shavings, straw (wheat/corn), waste paper, bamboo, palm trees, coconut fiber (coir), softwood, bagasse, miscanthus, and even sunflower seed shell.
2. Environmental Conservation. The cardboard materials are completely recyclable and biodegradable. Recycling cardboard also offers a fundamental solution to environmental conservation by preserving natural resources due to its highest reuse percentage in producing high-quality paper pallet products.
3. Durability. The paper pallets made from recycled cardboard have natures of durability and resistance.
ThoYu is a professional machine manufacturer with 15 years of experience in China. We specialize in woodworking machines, wood pallet machines, pallet block machines, plastic pallet machines, wood pallet production line, pallet block production line, and plastic pallet production lines.
ThoYu machines are sold well all over the world, such as France, Finland, Spain, Greece, Turkey, Tunisia, Romania, Algeria, UAE, Dubai, Estonia, Ukraine, United States, Canada, Mexico, Colombia, Chile, Argentina, Peru, Egypt, South Africa, Iran, Philippines, India, and Indonesia, and other countries and regions, which are thought highly by our clients.
With the concept of “TO YOU FOR YOU”, we serve clients sincerely and also await win-win cooperation with the clients at home and abroad.
2008 ThoYu was founded. In the beginning, we just produced a fruit grading machine, garlic grading machine, and fruit pitting machine.
2009 We joined Alibaba.com and got more and more overseas orders.
2010 For the first time, we sold our wood pallet machine to overseas customers.
2012 We obtained a CE certificate for our wood pallet machine and pallet block machine.
2014 We developed a new presswood pallet machine, which solved the system stability problem of the first generation.
2015 We updated our pressed wood pallet machine, which solved the scope of raw materials problem of the second generation.
2016 We upgraded our compressed wood pallet machine daily capacity problem of the third generation.
