1200*1000 mm Automatic Double Molds Wood Pallet Machine in India

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-60 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1000

Detail Information

Product Name: 1200*1000 Mm Automatic Double Molds Wood Pallet Machine In India Capacity: 240 Pieces/day
Application: Wood Pallets Production Function: Making Wood Pallets
Pallet Size: 1200*1000 Mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pallet making machine

,

presswood pallet machine

,

wood pallet machine

Product Description

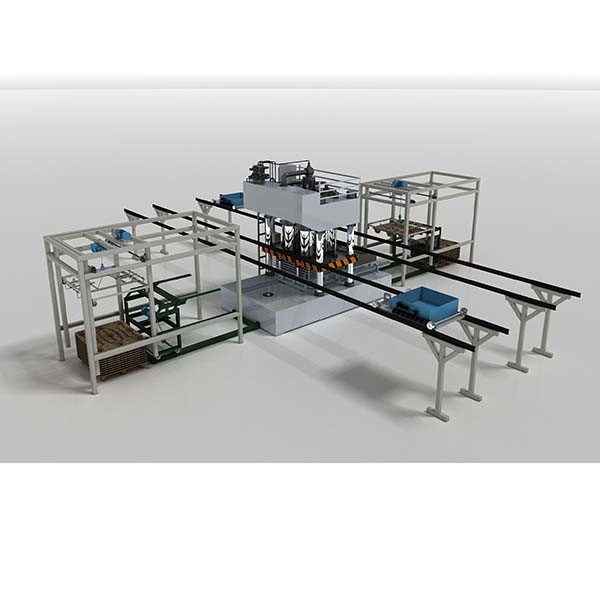

1200*1000 mm Automatic Double Molds Wood Pallet Machine in India



Introduction of 1200*1000 mm Automatic Double Molds Wood Pallet Machine in India



1200*1000 mm automatic double molds wood pallet machine in India is designed for producing molded wood pallets with high temperature and high pressure. Molded wood pallets are one-time press molding with the overall structure of the board and 9 support feet. It is that the longitudinal and horizontal balance of the board, nine feet can meet the four-way distribution by the fork, and molded coconut fiber pallet is ideal for logistics transport. 1200*1000 mm automatic double molds wood pallet machine in India changes the waste into treasure, which processes wastes into new molded wood pallets. Molded wood pallets are a sustainable alternative to existing wooden pallets and plastic pallets.

1200*1000 mm Automatic Double Molds Wood Pallet Machine in India 0

Technical Specifications of 1200*1000 mm Automatic Double Molds Wood Pallet Machine in India:

Model TY-1000
Voltage 220 V/380 V, 50 Hz, three-phase
Capacity 240 pieces/day (24 hours)
Power 18.5 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0-1000 tons (adjustable)
Shaping cycle 350 seconds
Weight 22 tons
Dimension 2000*1400*3500 mm

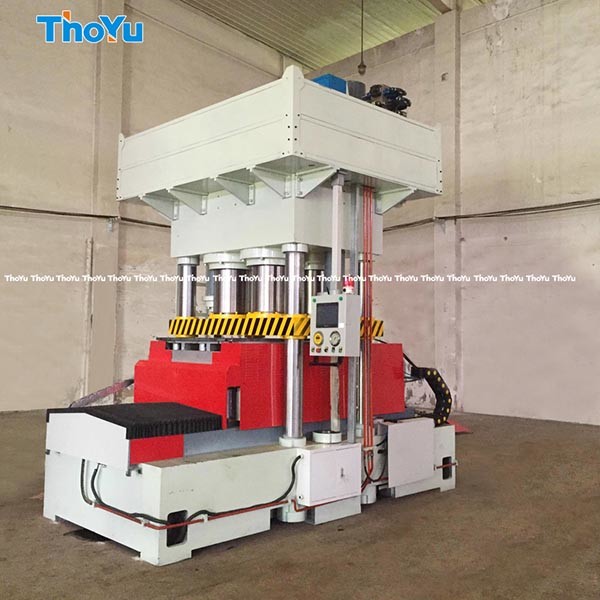

1200*1000 mm Automatic Double Molds Wood Pallet Machine in India 1

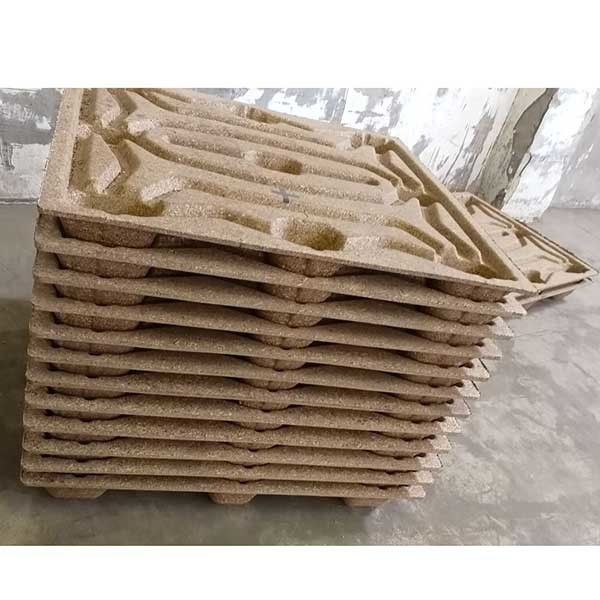

Features of Molded Wood Pallet

Specifications of Molded Wood Pallet:

1200 mm×1000 mm, 400 mm×600 mm, 600 mm×800 mm, 800 mm×1000 mm, 800 mm×1200 mm, 1000 mm×1200 mm, 1100 mm×1100 mm

Pallet weight varied from 10 kg~22 kg.

Loading capacity: 2 tons~3 tons (dynamic load) and 6 tones~8 tons (static load)

1. Quality assurance.1200*1000 mm automatic double molds wood pallet machine in India produces the molded wood pallet with high pressure and high temperature. Low 6-8% moisture content of molded wood pallet reduces the risk of product damage. And resin bonded construction provides high water resistance. The other, wooden pallet is very difficult to clean and if they become wet can lead to the growth of bacteria and fungus.

2. The molded wood pallet of 1200*1000 mm automatic double molds wood pallet machine in India produced is free fumigation and popular in import and export transportation. Environmentally friendly, recyclable, reusable, and low pollution. The recovery rate is up to 100%.

1200*1000 mm Automatic Double Molds Wood Pallet Machine in India 2



Advantages of 1200*1000 mm Automatic Double Molds Wood Pallet Machine in India:

1. Environmental protection. 1200*1000 mm automatic double molds wood pallet machine in India is the ideal equipment for recycling wood wastes materials. And 1200*1000 mm automatic double molds wood pallet machine in India can change the waste into treasure, which processes waste wood into the new molded wood pallet.

2. High capacity. The capacity of 1200*1000 mm automatic double molds wood pallet machine in India is much higher than the single one, and it is more economical of large capacity. And the capacity can up to 280 pallets 24 hours.

3. High durability. The raw materials of 1200*1000 mm automatic double molds wood pallet machine in India are all the durable materials, to minimize maintenance of the machine. The upper mold is integrated with the “Sliding beam”, which doubles the strength, stability, and precision.



1200*1000 mm Automatic Double Molds Wood Pallet Machine in India 3
