Equipped Nail Removing 1380mm 110kW Wood Crushing Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-1380

Detail Information

Name: Wood Pallet Crusher Machine Feeding Width: 1380 Mm
Power: 110 KW Voltage: Customized
Crusher Speed: 800 R/min Capacity: 7-15 T/h
High Light:

110kW Wood Crushing Machine


1380mm Wood Crushing Machine


Industrial Wood Crusher

Product Description

Equipped Nail Removing Functional Wood Pallet Crusher Machine

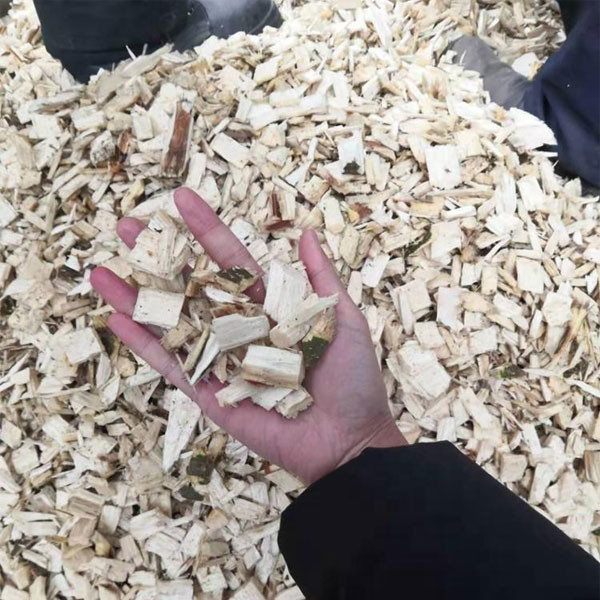

Wood pallet crusher machine can crush the wood pallet into chips with the function of remove nails, It can remove the nails automatically.


Wood pallet crusher machine application


This machine is used to crush various wood logs, waste wood, wooden pallet, waste plywood, old wooden shelf, waste building templates, wooden box, wood logs, wooden lumber, scrap wood, etc.


Wood pallet crusher machine parameter


Model Feeding Width(mm) Feeding Size(mm) Power(kw) Roller Feed Motor(kw) Crusher Speed(r/min) Capacity(t/h) Weight(t)
TYXP-500 500 500*100 22 4 800 1-3 3
TYXP-800 800 800*120 37 4 800 3-8 6
TYXP-1000 1000 1000*150 45 4 800 5-10 8
TYXP-1380 1380 1400*240 110 5.5 800 7-15 12
TYXP-1500 1500 1500*250 132 7.5*2 800 12-25 16


Equipped Nail Removing 1380mm 110kW Wood Crushing Machine 0

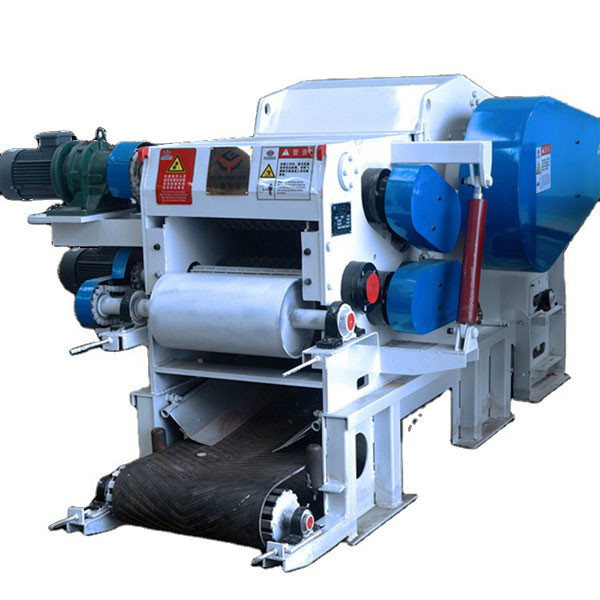

Wood pallet crusher machine structure features

  1. We use Siemens motor, stable, and durable.
  2. Guomao reducer, the leader brand in China, good quality.
  3. Q235 Carbon steel,4*4cm, 3-10cm all is ok.
  4. The feeding roller is large in diameter, heavy in weight, and has coarse teeth on the surface.
  5. The blade is made of manganese steel, Wear-resistant.
  6. Full solid knife roller, durable and strong.

Equipped Nail Removing 1380mm 110kW Wood Crushing Machine 1

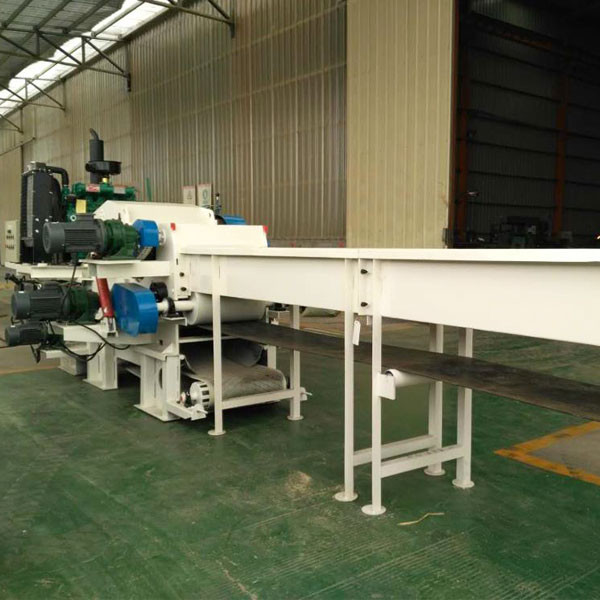

Wood pallet crusher machine advantages

  1. New design blade rotor, blades are easy to replaceable.
  2. The cover of crushing chamber could be opened by hydraulic, easy for maintenance and changeable blades.
  3. Screen mesh size is customized for different requirements on size of end product.
  4. Hydraulic buffer system ensures smooth operation.
  5. Reverse feeding device, belt conveyor can be reversed positively. This device can protect machine, when large wood is encountered.
  6. Higher capacity than the traditional type, larger feeding size, could chip log diameter 230-500mm.
