Wooden Euro Pallet Crushing Machine

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYFS-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-120 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 20 sets per month

Detail Information

Product Name: Wooden Pallet Crushing Machine Feeding Size: 1500*400 Mm
Power: 160 KW Feed Motor Power: 11*2 KW
Capacity: 25-35 T/h Overall Dimensions: 6000*2950*1950 Mm
High Light:

Euro Pallet Crushing Machine


Wooden Pallet Crushing Machine


euro pallet crusher

Product Description

Large Waste Wood Materials Wooden Pallet Crushing Machine


Wooden pallet crushing machine is a new generation of special plate crushing equipment developed according to the market demand for the plate crushing, it mainly has a working platform, feeding pressure roller and spiral crushing roller, and other major components, mainly used to crush waste wood pallets, building templates, bamboo glue board, compressed board, wood-based panels, and other large waste wood. It has a strong production capacity and wide application fields.


Wooden pallet crushing machine parameters


Model Feed Size (mm) Motor Power (kW) Feed Power (kW) Output Power (kW) Rotating Speed (r/min) Capacity (t/h) Dimensions (mm)
TYFS-1000 1000*400 110 5.5*2 3 510 15-20 6000*2150*1750
TYFS-1300 1300*400 132 7.5*2 3 510 20-25 6000*2350*1750
TYFS-1500 1500*400 160 11*2 4 365 25-35 6000*2950*1950
TYFS-1600 1600*400 200 15*2 4 365 35-45 6000*2950*1950

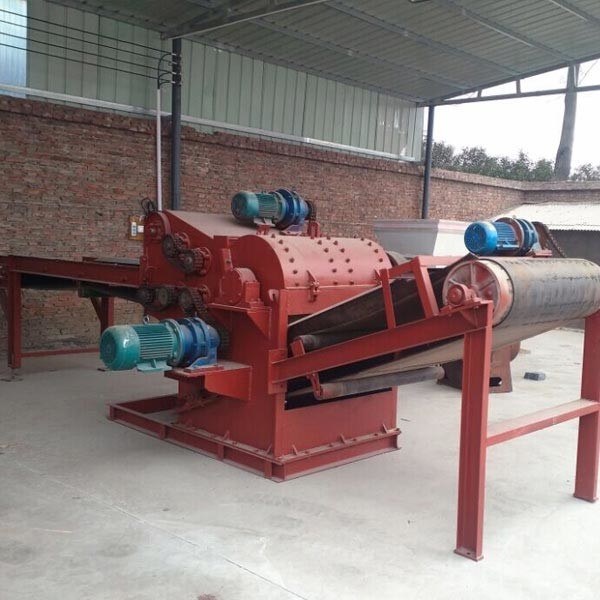

Wooden Euro Pallet Crushing Machine 0

Wooden pallet crushing machine performance characteristics


Wooden pallet crushing machine for bark crushing processing plant, power plants, wood crushing and crushing processing base, plywood, and other waste wood processing enterprises, the use of processing width 1.5 meters, thickness 3.5 centimeters of wood and other scraps, in addition to custom models of wood processing equipment in accordance with customer requirements.


Wooden pallet crushing machine working principle

  1. Working platform: Placement of timber to be crushed.
  2. Feeding pressure roller: to control the feeding speed and keep the sheet material from slipping and not feeding.
  3. Spiral crushing roller: The welding cutter is evenly distributed on the roller along the circumferential direction to ensure that the crushing roller is under the same force at all times in the circumferential direction.
  4. Sheet crushing has synchronous feeding and crushing to achieve uniform crushing; the feeding roller adopts UCK series bearing and spring pressure mechanism, which can be adapted to the different thickness of the plate crushing; feed roller and crushing roller use different power systems, easy to control.

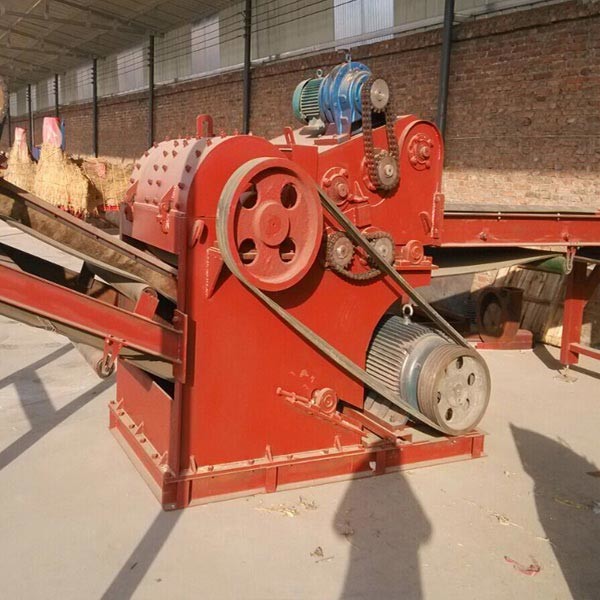

Wooden Euro Pallet Crushing Machine 1
