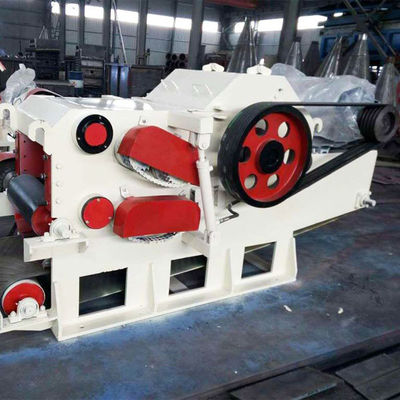

Waste Tree Branches Garden Wood Pallet Chipping Machine

Product Description

Waste Tree Branches Garden Wood Pallet Chipping Machine

Our tree branches wood chipping machine is a combination of traditional chipping raw materials and modern technology, compared with other manufacturers of equipment with high efficiency, environmental protection and energy saving, high value-added products, no loss, no noise, physical chipping without heating, do not add any chemical raw materials, do not need to clear wood, easy to operate, no wearing parts, long service life and so on.

Tree branches wood chipping machine parameter

Tree branches wood chipping machine structure

The tree branches wood chipping machine is composed of machine base, knife roller, upper and lower feeding mechanism, feeding device and hydraulic buffer system, and electrical control system.

1. Machine seat. The tree branches wood chipping machine base is made of high-strength steel plate welded together, which is the support base of the whole machine. The tree branches wood chipping machine base support and the machine base are welded into one piece, which is used to place the base knife base. The bottom knife of the wood chip machine is fixed on the bottom knife seat by specially made high strength bolts through the knife pressing block. The undercutter base can be extracted freely through a hole in the wall plate of the machine and is fixed to the machine base by two keys. The chips from the chipper fall through the holes in the screen and are discharged from the bottom of the base. Oversized chips can be crushed again by the crusher bar mounted on the base of the machine.
2. Knife roller. The knife roller is the working part of the tree branches wood chipping machine, which is made of steel plate welded together (the small wood chip machine roller is the whole solid structure). It has good steel and moment of inertia and is tested for dynamic balance. The tree branches wood chipping machine spindle and knife rolls are connected by locking devices or flat keys. Its structure is simple, easy to assemble and disassemble, and reliable to use. The two ends of the spindle are supported by automatic self-aligning roller bearings, and the bearing seat is fixed on the machine base. The tree branches wood chipping machine is equipped with two flying knives on the knife roller, which are fixed to the knife roller with specially made flying knife bolts through the pressure block.
3. Upper and lower feeding mechanism. The upper feeding mechanism of the wood chip machine is composed of upper feed roller seat, feed roller, feed roller shaft, swing shaft, reducer and so on. tree branches wood chipping machine under the feeding mechanism consists of feed rollers, support rollers and feed rollers shaft, reducer. The feeding roller of the wood chip machine has larger diameter, heavier weight and coarse teeth on the surface, which can compress the raw material and make it enter into the cutting position with balanced speed to ensure the length and quality of the chips, the teeth of the upper and lower feeding rollers are staggered, so that the chips can be cleaned.
4. Feeding device. tree branches wood chipping machine feeding device belt conveyor or vibrating feeder in two forms. Belt conveyor consists of a head wheel, tail wheel, belt and frame. The head wheel of the tree branches wood chipping machine is driven by the lower feed roller shaft through the chain. The head pulley drives the belt to feed the raw material into the feeding mouth. The vibrating feeder consists of a feed chute, base and drive section. The crank linkage is driven by a motor alone, and due to the eccentric rotation the trough is dragged for simple harmonic vibration, so that the raw material moves forward in the trough into the feed opening.
5. Hydraulic system. Supplied by hand oil pump to the oil cylinder, it can start the cover to facilitate the replacement of the blade; during maintenance it can lift the upper feed roller assembly to facilitate the adjustment of the gap between the flying knife, the bottom knife and the disassembly of the comb plate.

Tree branches wood chipping machine in the market is quite hot, the competition is huge, our factory strives to do the best, to be able to drum wood slicer more perfect improvement, for the benefit of the wood processing industry.
