30mm Timber Chips Adjustable Knives Drum Wood Chipping Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-50 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 50 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-216

Detail Information

Product Name: Drum Wood Chipping Machine Feeding Port Size: 230*590 Mm
Fly-cutter Qty: 2-3 Pcs Revolving Speed: 590 R/min
Materials Max Diameter: 230 Mm Chip Size: 30 Mm
High Light:

wood chipping machine

,

drum chipping machine

,

drum wood chipping machine

Product Description

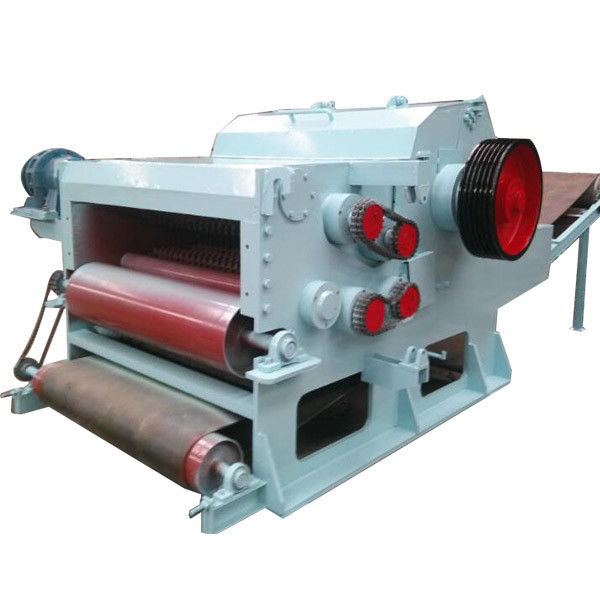

30 mm Timber Chips Adjustable Knives Drum Wood Chipping Machine

Introduction of 30 mm Timber Chips Adjustable Knives Drum Wood Chipping Machine

Wood chips making machine is the special equipment for high-quality wood chips. It is widely used to make flakeboard, fiberboard, building board, straw power plant. The drum chipper is of compact structure, easy operation, high capacity, wide raw materials adaptability, safe and reliable, convenient maintenance.

Drum wood chipper machine is mainly used to crush big wood logs or wood timber, plywood, wood branches, furniture waste into small chips, the thickness of last chips is 3mm-5mm, length and width are about 15-30mm, it is wood chips, not wood shavings. By adjusting the knife's gap, the outlet chips dimension will be adjusted.

30mm Timber Chips Adjustable Knives Drum Wood Chipping Machine 0

Technical Parameters of 30 mm Timber Chips Adjustable Knives Drum Wood Chipping Machine

Wood Chipping Machine Technical Parameters
Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113

Feeding port

size (mm)

160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3

Revolving speed

(rotate/minute)

590 590 650 500

Feeding raw materials

max diameter (mm)

160 230 300 450
Chip size (mm) 30 30 30 38

Production

capacity (ton)

3-5 8-10 14-18 15-30

Main motor

power (kW)

45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2

Oil pump

motor power (kW)

1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension (mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

30mm Timber Chips Adjustable Knives Drum Wood Chipping Machine 1





































Structure of Drum Wood Chipping Machine

  • 1. New design blade rotor, blades are easy to replaceable.
  • 2. Cover of crushing chamber could be opened by hydraulic, ease for maintenance, and changeable blades.
  • 3. Screen mesh size is customized for different requirements on the size of the end product.
  • 4. Hydraulic buffer system ensures smooth operation.
  • 5. Reverse feeding device, belt conveyor can be reversed positively. This device can protect the machine when large wood is encountered.
  • 6. Higher capacity than the traditional type, larger feeding size, could chip log diameter 230-500mm.

30mm Timber Chips Adjustable Knives Drum Wood Chipping Machine 2

FAQ before placing an order of this machine

  • A: What are your raw material and the material diameter(will check the infeed mouth sizes)
  • B: The capacity you want (confirm the model)
  • C: The final product size requirement (thickness and length)
  • D: The driving types: The motor or the diesel drive
  • E: What's your voltage requirement (we can produce the machine voltage as your requirement)
  •
    30mm Timber Chips Adjustable Knives Drum Wood Chipping Machine 3
