Large Size Drum Disc Wood Chipper Shredder Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-218

Detail Information

Name: Drum Wood Chipper Machine Color: Customized
User Manual: Included Wood Chips Size: 30mm
Raw Material: Tree Branch Etc.,Logs,Waste Wood Power: 55 KW
High Light:

disc wood chipper machine

,

wood chipper shredder

,

large wood chipper machine

Product Description

Large Size Wood Materials Used Drum Wood Chipper Machine



Drum wood chipper machine is divided into two kinds of chipper products: drum chipper and disk chipper. The drum chipper is one of the chipper in the classification, mainly used in paper mills, particleboard plant, fiberboard plant for the production of particleboard, MDF, wood fiberboard and paper, and other industries.



Drum wood chipper machine application



The drum wood chipper machine can be made from raw materials such as logs, boughs, boards, veneer, bamboo, cotton stalks and other non-wood fiber stems. These raw materials can be cut into pieces of different sizes in a single operation. As the basic raw material for making particleboard, fiberboard, non-wood wood-based panels, and pulp and paper.



Drum wood chipper machine
Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113
Feeding port size (mm) 160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3
Revolving speed (rotate/minute) 592 590 650 500
Feeding raw materials max diameter (mm) 160 230 300 450
Chip size (mm) 30 30 30 38
Production capacity (ton) 3-5 8-10 14-18 15-30
Main motor power( kW) 45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2
Oil pump motor power (kW) 1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

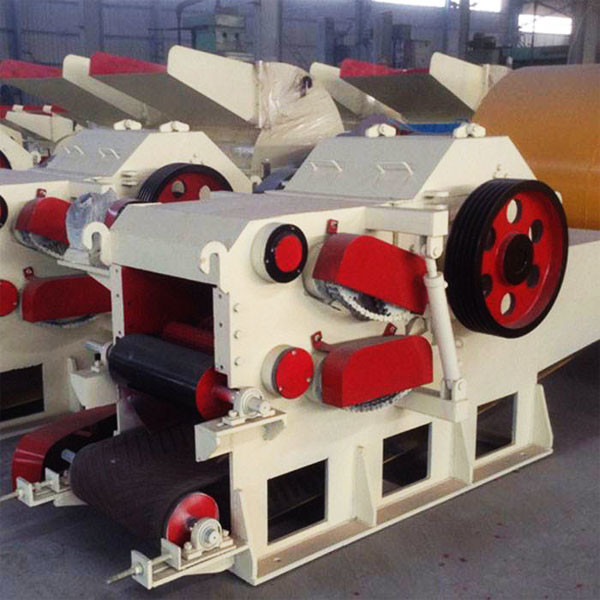

Large Size Drum Disc Wood Chipper Shredder Machine 0



Drum wood chipper machine advantages

  1. Adaptability: because the drum wood chippier machine adopts the host and since the feeding system, the host and the main motor base integrated assembly technology, eliminating the need to make the host base and the main motor base, you can adapt to different geographic and terrain conditions of equipment installation and use, not affected by the season, climate and other external conditions.
  2. Save time: because the drum wood chipper is exempted from the foundation, can save users 10-15 days of valuable time, the equipment can be shipped immediately after installation, commissioning, generally 1-2 days to complete, than usually to save 2/3 of the time.
  3. Save money: due to free for the foundation, can save the drum wood chipper machine users to make the foundation of labor, material resources, and financial resources, according to different models can be a one-time savings of more than 3,000 to 10,000 yuan.
  4. Flexible and convenient: because no installation in the foundation, the drum wood chipper machine installation and commissioning is very simple, which greatly improves the installation speed and flexibility. Because of the two-stage discharge device, the user can change the direction of discharge and flexible use according to demand. Because there is no foundation restriction, the user can easily change the working place according to the need and is no longer constrained by the foundation.

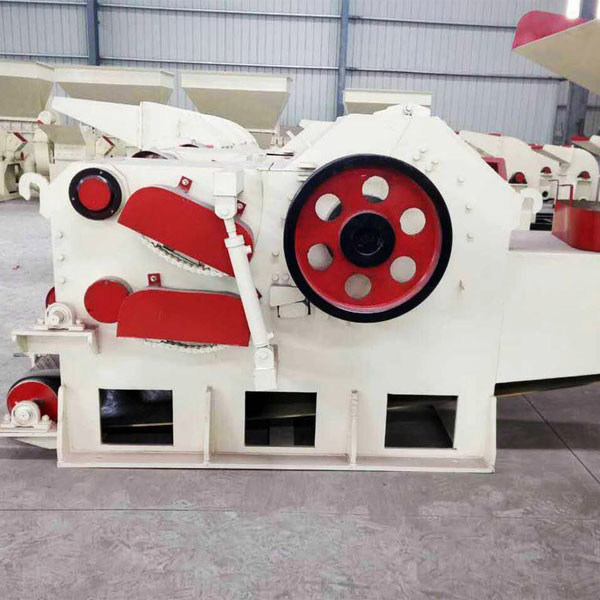

Large Size Drum Disc Wood Chipper Shredder Machine 1



Large Size Drum Disc Wood Chipper Shredder Machine 2
