Drum Wood Shredder Machine Log Chipping Machine For Wood Chips

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-2113

Detail Information

Product Name: Drum Wood Shredder Machine Log Chipping Machine For Wood Chips Cutter Quantities: 2-3 Pcs
Use: For Producing Wood Chips Feeding Size: 450*700 Mm
Main Motor Power: 200-250 KW Production Capacity: 15-30 T/h
High Light:

wood shredder machine


log chipping machine


drum wood shredder

Product Description

Drum Wood Shredder Machine Log Chipping Machine For Wood Chips


Log chipping machine is widely used, suitable for chipping of various wood materials, with high output and few failures, which can be installed on the foundation of concrete or steel support structure, ground bolts.


After the material is chipped, it becomes a certain specification of small wood chips, as particleboard, MDF, fiberboard and other paper industry raw materials, can also be used for fuel.


Log chipping machine parameter


Log chipping machine
Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113
Feeding port size (mm) 160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3
Revolving speed (rotate/minute) 592 590 650 500
Feeding raw materials max diameter (mm) 160 230 300 450
Chip size (mm) 30 30 30 38
Production capacity (ton/h) 3-5 8-10 14-18 15-30
Main motor power( kW) 45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2
Oil pump motor power (kW) 1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

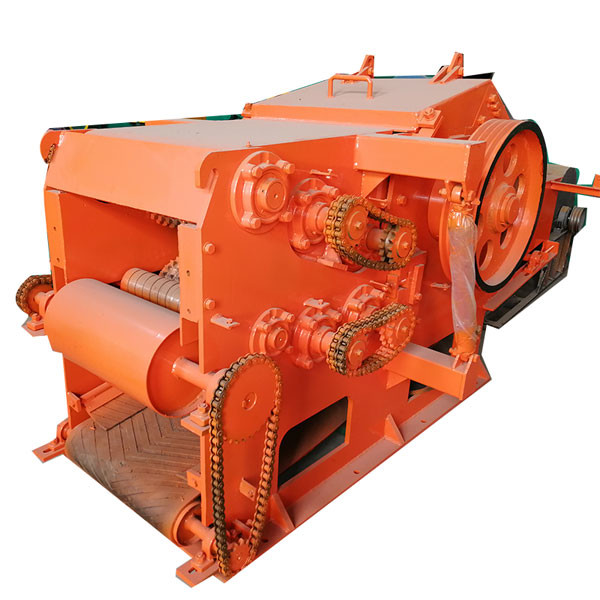

Drum Wood Shredder Machine Log Chipping Machine For Wood Chips 0


Log chipping machine features

  1. The alloy tool of Log chipping machine is wear-resistant and sharp, reliable, and has long service life. The crushing chamber adopts multi-stage crushing process and fine crushing principle device, which is characterized by large working impact, high production efficiency, and strong fine crushing capacity.
  2. Small consumption of wearing parts and low operating cost of log chipping machine. Reasonable structure, reliable operation, low operating costs; all parts of the crusher are wear-resistant protection, reducing maintenance costs to a lower limit, general service life can be increased by more than 30%.
  3. Chipper dust collector integrated design, the box is equipped with dust collector at the lower part, vertical frame with filter bag above, dust collector to receive the dust gas from the centrifugal separator. From the entrance of the box into the box, through the filter bag into space outside the machine. As the efficiency of the bag filter can reach more than 97%, there is no pollution to the working environment. Therefore, the working environment is green and pollution-free.

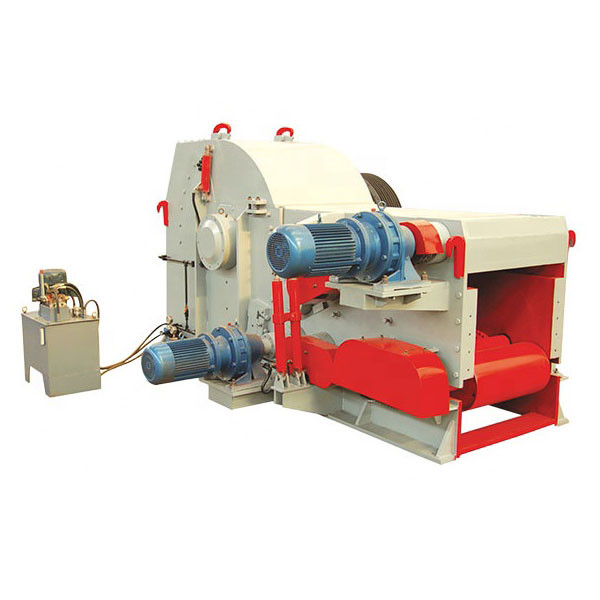

Drum Wood Shredder Machine Log Chipping Machine For Wood Chips 1


Log chipping machine notes

  1. Before the log chipping machine test, the machine should strictly check the machine parts to see if the installation meets the requirements, whether the screws and bolts are loose, check the direction of rotation, it is strictly prohibited to crush flammable and explosive materials, so as to avoid accidents.
  2. The log chipping machine in production should maintain uniform feeding to protect the quality of crushing and normal production, at the same time strictly prohibit motor overload, to protect the normal operation of the machine.
  3. Pay attention to check the various parts of tightening loose, but also should pay attention to check the wear and tear of wearing parts, such as serious wear and tear should be replaced in a timely manner, so as not to damage the main components, and take the necessary fire prevention measures.
  4. Due to the high speed, in addition to the correct and firm installation, should also maintain a good lubrication effect to maintain the normal operation of the machine.

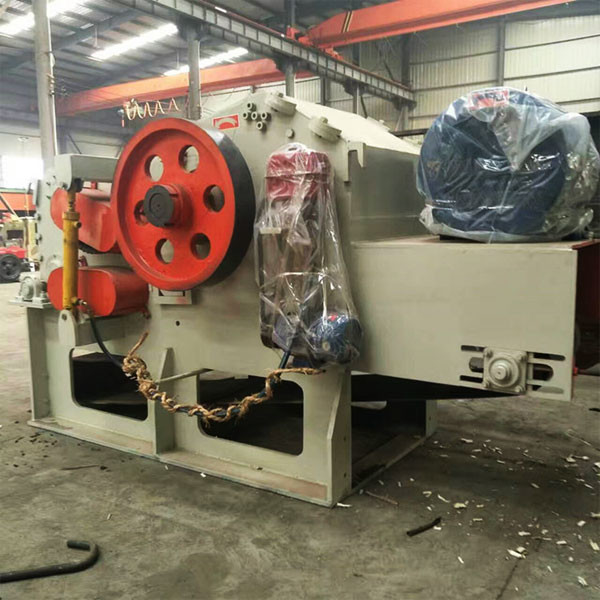

Drum Wood Shredder Machine Log Chipping Machine For Wood Chips 2
