Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | ThoYu |
Certification: | CE |
Model Number: | TYYJ-1000 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | Strong wooden pallet for global shipping |
Delivery Time: | 10-50 working days |
Payment Terms: | L/C, D/A, Western Union, MoneyGram |
Supply Ability: | 10 sets per month |
Detail Information |
|||
Product Name: | Wooden Fibers Compressed Wood Pallet Machine | Main Power: | 18.5 KW |
---|---|---|---|
Day Capacity: | 180 Pieces | Machine Pressure: | 0-1000 Tons (adjustable) |
Total Weight: | 22 Tons | Overall Dimension: | 2000*1400*3500 Mm |
Keywords: | Compressed Wood Pallet Machine,wood Pallet Making Machine,compressed Pallet Making Machine | ||
High Light: | Compressed Wood Pallet Machines,Wooden Fibers Wood Pallet Machine,Machines For Production Wooden Pallets |
Product Description

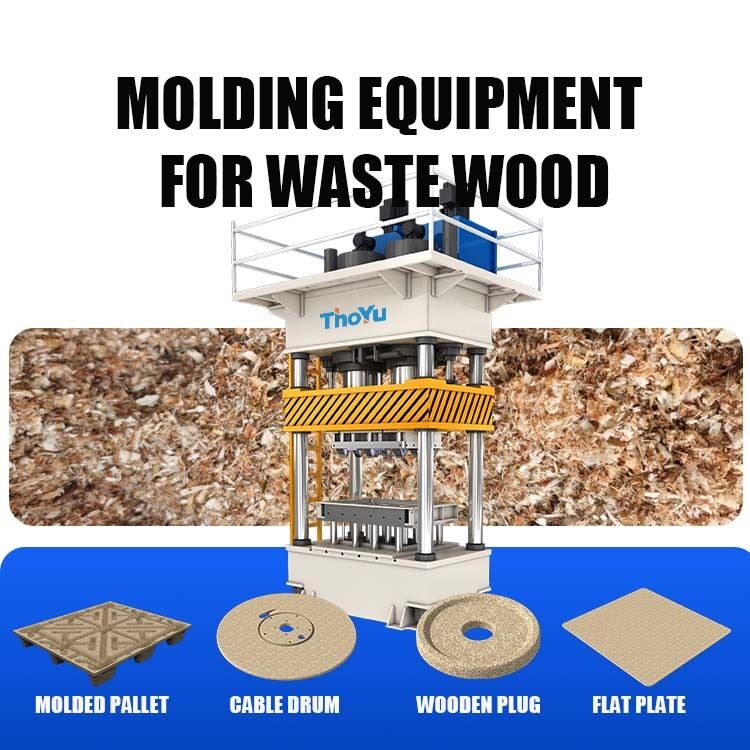

Fumigation Free Wooden Fibers Compressed Wood Pallet Machine
Introduction of Fumigation Free Wooden Fibers Compressed Wood Pallet Machine
We are the largest manufacturer of wooden fibers compressed wood pallet machine manufacturer in China, offering the top quality in the fields of pallet machine in the world, and in the meanwhile providing the most competitive price to save your cost on the industrial packaging.
Compressed wood pallets are made from wood fibers and synthetic resins. The moulded products are pressed under high heat and pressure and then dried to a moisture content of 6% - 9% to eliminate moisture. The high heat process burns out the infestation, which eliminates the need for additional fumigation or heat treatment required for export applications. All the quality compressed wood pallets are meeting the requirements of ISPM15.

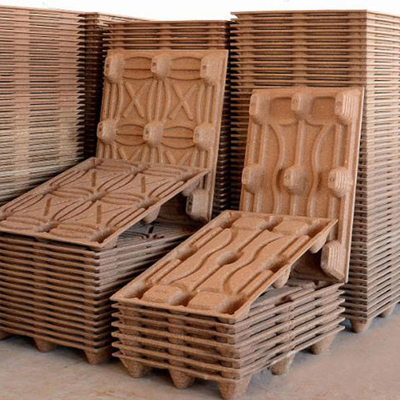

Some customers call them chipboard pallets or particleboard pallets, we call them compressed wood pallets or molded wood pallets, which is simply the best overall value in shipping pallets on the market today.
Technology Parameters of Wooden Fibers Compressed Wood Pallet Machine:
wooden fibers compressed wood pallet machine | ||
Model | TYYJ-1000 | TYYJ-1200 |
Voltage | 220 V/380 V, 50 Hz, three-phase | 220 V/380 V, 50 Hz, three-phase |
Capacity | 240 pcs/day (24 hours) | 240 pcs/day (24 hours) |
Power | 18.5 kW | 18.5 kW |
Hydraulic cylinder diameter | 350 mm | 380 mm |
Hydraulic cylinder quantity | 4 pieces | 4 pieces |
Pressure | 0-1000 tons (adjustable) | 0-1200 tons (adjustable) |
Shaping cycle | 350 seconds | 350 seconds |
Weight | 22 tons | 22 tons |
Dimension | 2000*1400*3500 mm | 2000*1400*3500 mm |
Production Process of Wooden Fibers Compressed Wood Pallet
Wood Waste, Chipping, Crushing, Drying, Glue Mixing, Hot Pressing ( wooden fiber compressed wood pallet machine ), These steps are optional according to the situation of raw materials ).
Wooden fibers compressed wood pallet features
