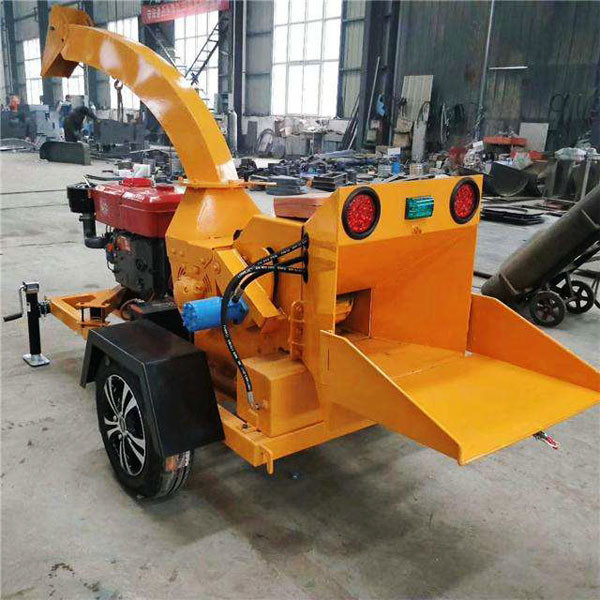

Diesel Mobile Tree Branch Garden Wood Crushing Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYSJFS-670

Detail Information

Product Name: Garden Tree Branch Crushing Machine Power: 30 KW
Diesel Model: 4105 Diesel Start Mode: Electric Start
Fuel Consumption: 8L/h Capacity: 2500kg/h
High Light:

Diesel Wood Crushing Machine


Garden Wood Crushing Machine


wood sawdust crushing machine

Product Description

Diesel Engine Drive Mobile Garden Tree Branch Crushing Machine


Our company’s latest garden tree branch crushing machine fills the blank of this kind of garden machinery in China. At present, most of the branch shredder used in the gardening sector in China is imported from abroad and is expensive. The garden tree branch crushing machine produced by our company has good crushing performance, high work efficiency, convenient use, and safety and reliability. This product is at the same level as foreign products and reaches the domestic advanced level.


Garden tree branch crushing machine application


The garden tree branch crushing machine is suitable for gardening, forestry, highway tree maintenance, parks, golf courses, and other departments. It is mainly used for crushing various branches cut off by pruning trees, and can be used as covers, garden beds, organic fertilizers, and food after crushing, biomass and biomass power generation can also be used to produce high-density boards, particle board, paper industry, etc. After being crushed, it can be sprayed directly into the transport vehicle. Its transport volume is 1/10 of the original branch’s traffic volume. This garden tree branch crushing machine can crush the branches at any time and place and is easy to move.


Garden tree branch crushing machine parameter


Model Power Diesel Model Diesel Start Mode Fuel Consumption Diameter Capacity Rotating Speed Walking Form
TYSJFS-570 22kw JL 4100(Booster) Electric Start 6L/h ≤150mm 1500kg/h 1500r/mim Trailer
TYSJFS -670 30kw 4105 Electric Start 8L/h ≤200mm 2500kg/h 1500r/mim Trailer
TYSJFS -770 45kw JL 4105(Booster) Electric Start 10L/h ≤230mm 3500kg/h 1500r/mim Trailer
TYSJFS -870 55kw 6105 Electric Start 15L/h ≤250mm 4500kg/h 1500r/mim Trailer
TYSJFS -970 75kw JL 6105(Booster) Electric Start 18L/h ≤300mm 5500kg/h 1500r/mim Trailer

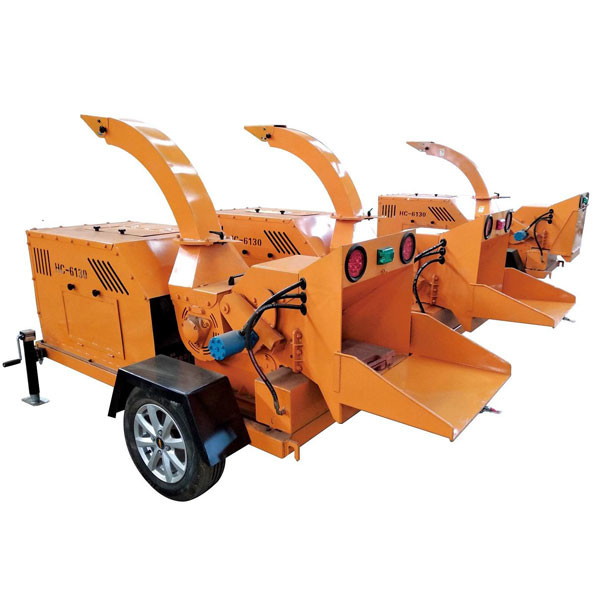

Diesel Mobile Tree Branch Garden Wood Crushing Machine 0


Garden tree branch crushing machine structure


garden tree branch crushing machine mainly consists of a power section, a body, a feeding mechanism, and a hydraulic system.

  1. The power part; the local power part is composed of diesel engine power, belt, and clutch.
  2. When the diesel engine starts, the clutch needs to be turned to an idle state, and load after the diesel engine runs well.
  3. The body consists of a series of components such as a chassis, a crushing chamber, a bearing chamber, and a traction section.
  4. After the frame is welded with a thick profile, it is aged and finally boring-milled. Not only increases the seat strength but also guarantees the bearing seat assembly accuracy.
  5. Rotor; rotor shaft and flying knife are made of 45 steel after processing. After the assembly is completed, a dynamic balance test is performed to ensure the overall stability of the entire machine during system operation.
  6. Feeding mechanism; the feeding mechanism consists of an adjustable toothed feed roller and a hydraulic motor.

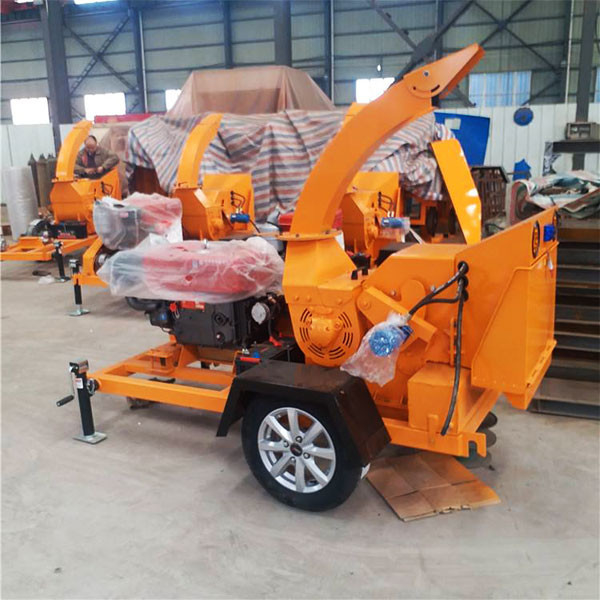

Diesel Mobile Tree Branch Garden Wood Crushing Machine 1
