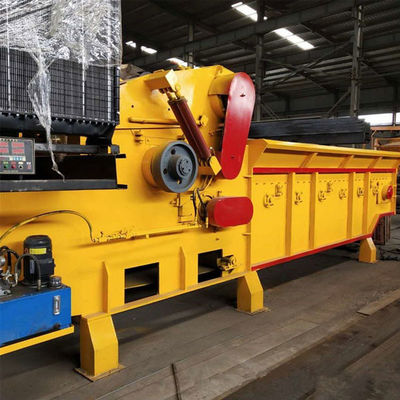

Large 25t Ph Mobile Waste Wood Crusher Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYFS-1300

Detail Information

Product Name: Large Size Wood Material Wood Crusher Spare Parts Supply: Blades
Keyword: Crushing Equipment Voltage: Customized
Capacity: 20-25 T/h Condition: New
High Light:

25t Ph Wood Crusher Machine

,

Waste Wood Crusher Machine

,

Pallet Crusher Machine

Product Description

25t Ph Efficient Large Size Wood Material Wood Crusher Machine



Large size wood material wood crusher is a device that has been upgraded based on the equipment of the template crusher itself. The equipment combines the advantages of the template crusher to abandon the equipment developed by the template crusher which cannot break the bulk material.



Large size wood material wood crusher has more powerful functions, stable use, wide material applicability, outstanding functions, convenient operation and repair, and is a green and low-carbon efficient equipment.



Large size wood material wood crusher applications



The integrated crusher has a wide range of raw materials for processing, Such as various small diameter timber, sheet metal, slats, round wood core, building formwork, etc. As well as various non-wood raw materials such as various types of bulk straw, cottonwood, reed, etc.



Large size wood material wood crusher parameters



Model Feed Size (mm) Motor Power (kW) Feed Power (kW) Output Power (kW) Rotating Speed (r/min) Capacity (t/h) Dimensions (mm)
TYFS-1000 1000*400 110 5.5*2 3 510 15-20 6000*2150*1750
TYFS-1300 1300*400 132 7.5*2 3 510 20-25 6000*2350*1750
TYFS-1500 1500*400 160 11*2 4 365 25-35 6000*2950*1950
TYFS-1600 1600*400 200 15*2 4 365 35-45 6000*2950*1950



Large 25t Ph  Mobile Waste Wood Crusher Machine 0



Large size wood material wood crusher working principles



The integrated crusher mainly relies on impact energy to complete the crushing of wood.



When the hammer-type integrated crusher is working, the motor drives the rotor to rotate at a high speed, and the wood evenly enters into the comprehensive crusher cavity.



The high-speed rotary hammer impacts, shears and tears the wood to cause the wood to be broken, and the gravity of the wood itself makes the wood From the hammer head rotating at high speed to the baffle and sieve bar in the frame;



In the lower part of the rotor, there is a sieve plate, and the size of the pulverized wood which is smaller than the mesh size is discharged through the sieve plate, and the wood larger than the mesh size is retained in the sieve. The board continues to be hit and ground by a hammer.



Large 25t Ph  Mobile Waste Wood Crusher Machine 1



Large size wood material wood crusher structures

  1. The large size wood material wood crusher is a machine that crushes the input wood quality to produce a block shape;
  2. And the integrated crusher is provided with a vehicle body of a traveling device, and a rotary crushing device that is provided on one end side of the vehicle body to pulverize wood to form wood.
  3. The blade type supply device provided in the upper portion of the rotary crushing device, and the wood that has been broken by the rotary crushing device, which is provided from the lower portion of the rotary crushing device to the other end side in the traveling direction of the vehicle body;
  4. It is carried out The externally discharged carry-out device, the drive travel device disposed between the rotary crusher and the carry-out device;
  5. And the drive device for the drive source of the rotary crusher, the airfoil supply device, and the carry-out device.
