Heavy Duty Electric Wood Pallet Shredder Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-30 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 30 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-1500

Detail Information

Product Name: Heavy Duty Electric Wood Pallet Shredder Machine Feeding Width: 1500 Mm
Feeding Size: 1500*250 Mm Power: 132 KW
Capacity: 12-25 T/h Weight: 16 T
High Light:

heavy duty wood shredder machine

,

electric wood shredder machine

,

pallet shredder

Product Description

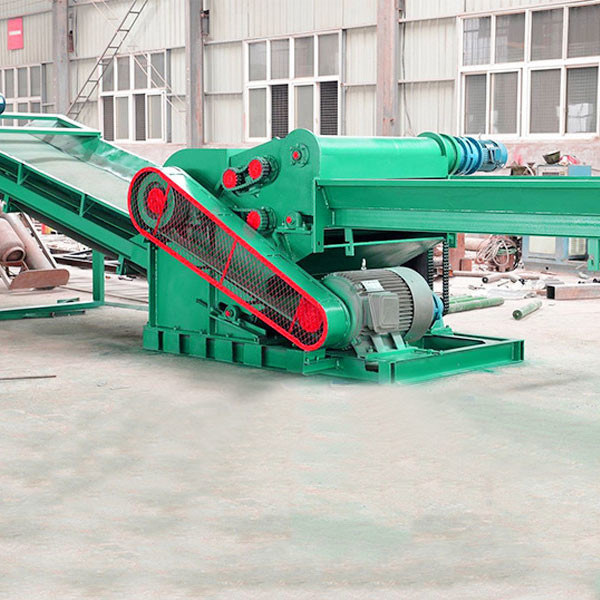

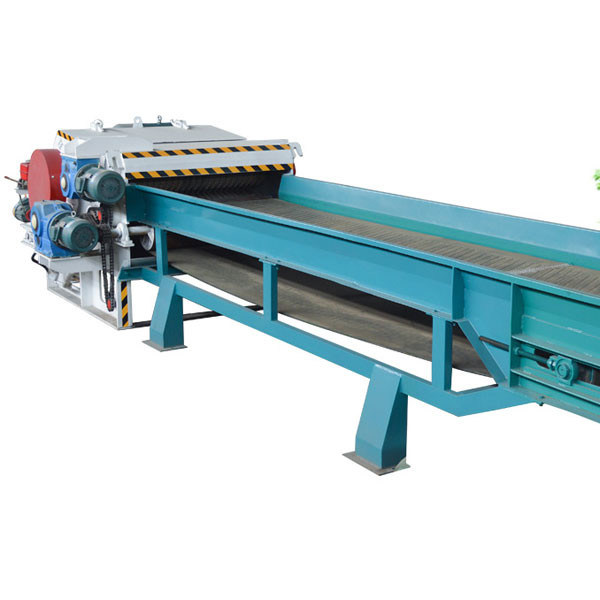

Heavy Duty Electric Wood Pallet Shredder Machine



Introduction of Heavy Duty Electric Wood Pallet Shredder Machine

Plywood wooden pallet building template wood chipping machine is a new generation of special template class crushers developed by market demand, which is according to the function of break the building template. Heavy Duty Electric Wood Pallet Shredder Machine is also called building formwork crusher, construction template crusher, and construction formwork crusher.



The new type of plywood wooden pallet building template wood chipping machine is a key product developed by our company. It mainly consists of a working platform, feed roller, and conveyor.



Heavy Duty Electric Wood Pallet Shredder Machine is aimed at bark crushing and processing plants, power plants, wood crushing and crushing processing bases, and plywood and other waste wood processing companies. It can process leftovers with a width of 1.5 meters and a thickness of 1 to 30 centimeters. Plywood wooden pallet building template wood crushing machine has functions of feeding, pressure plate, crushing, and one integrated control. In addition, various models of wood processing equipment can be customized according to customer requirements.



Reasonable design, compact structure, safe, durable, high production efficiency, good effect after popularization, low noise, simple structure, compact layout, low price, stable operation, low energy consumption, high output, good quality of the finished product, processing low cost.



Heavy Duty Electric Wood Pallet Shredder Machine Parameters



Model

Feeding

Width

Feeding

Size(mm)

Power(kW)

Roller Feed

Motor(kW)

Crusher

Speed(r/min)

Capacity(t/h) Weight(tons)
TYXP-500 500 500*100 22 4 800 1-3 3
TYXP-800 800 800*120 37 4 800 3-8 6
TYXP-1000 1000 1000*150 45 4 800 5-10 8
TYXP-1380 1380 1400*240 110 5.5 800 7-15 12
TYXP-1500 1500 1500*250 132 7.5*2 800 12-25 16



Heavy Duty Electric Wood Pallet Shredder Machine 0



Structure and Principle of Heavy Duty Electric Wood Pallet Shredder Machine

  1. Feeding and conveying: place the wood board to be broken.
  2. Feed roller: control the feeding speed and keep the plate material from slipping and feeding.
  3. Spiral crushing roller: The welding knife is uniformly distributed on the roller in the circumferential direction to ensure that the crushing roller is consistent in force in the circumferential direction.
  4. The template crushing has the feed and crushing synchronization, to achieve the uniformity of crushing.
  5. The feed roller adopts UCK series bearing and spring pressing mechanism, which can be adapted to the crushing of different plate thickness.
  6. Feed pressure roller and crusher roll using different power systems, easy to control.

Heavy Duty Electric Wood Pallet Shredder Machine Characteristics

  1. Intermeshing blades break the material thoroughly.
  2. Choose special blades, and blade hardness.
  3. Strong structure, dense reinforced ribs to ensure that the strong box.
  4. Automatic button control, safe and convenient.
  5. Safety signs and safety labels to ensure the use of safety.
  6. Can be equipped with conveyor belt feeding.
