15t Ph Wood Chips Bamboo Chipper Machine For Energy Generation

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 50 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-218

Detail Information

Product Name: Bamboo Wood Chips Chipping Machine Blades Number: 2-3 Pcs
Main Motor Power: 90-110 KW Max. Diameter: 300 Mm
Woodchips Size: 30 Mm Capacity: 14-18 T/h
Keywords: Wood Chipper Machine, Bamboo Chipper Machine, Wood Chips Machine
High Light:

bamboo chipper machine


wood chips machine


wood chipper machine

Product Description

15t Ph Bamboo Wood Chips Chipping Machine For Energy Generation

Bamboo wood chips chipping machine features a large, motor-powered drum located at the center of the machine. It is a dedicated device producing quality wood chips for energy generation and wood pulp industry. That’s why it is popular in places where wood chips used as the starting material for further production like wood pellet plant, particleboard mill, fiberboard factory, biomass power plant, etc. The bamboo wood chips chipping materials are of great variety such as wood, stalk or straw, etc. Our wood drum chipper is extremely robust and scientifically designed which can transfer wood materials into uniform and high-quality chips.

What raw material can be used for wood chipping machine

Our wood chip making machine prices is versatile and suitable to chip a myriad of raw materials for wood pelletizing.

  • for wood materials, it can chip undersized branches, slabs, plump wood, panels manufacturing, leftovers of furniture factories, plant fibers, and so on.
  • for non-wood materials, drum chipper is fit for sugarcane stalk, bulrush, and bamboo.
Technical Parameters
Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113
Feeding port size (mm) 160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3
Revolving speed (rotate/minute) 592 590 650 500
Feeding raw materials max diameter (mm) 160 230 300 450
Chip size (mm) 30 30 30 38
Production capacity (ton) 3-5 8-10 14-18 15-30
Main motor power( kW) 45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2
Oil pump motor power (kW) 1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

15t Ph Wood Chips Bamboo Chipper Machine For Energy Generation 0

The working principles of the wood chipping machine

the main parts of the wood chip making machine prices include machine rack, the blades rollers, double feeding rollers, the transmission belt, and the hydraulic buffer system. The blades roller in the crushing room is connected with the electric motor by the transmission belt. The raw materials are clamped and transmitted to the crushing space by the feeding system, then crushed by the fast-rotating blades on the roller frequently. The larger wood chips will be processed several time before discharged from holes on the screen. At last, the wood chips with flat incision, even length, uniform thickness are discharged.

Features of Bamboo wood chips chipping machine

When wood chipper runs, materials in the crushing system can be fully crushed, high capacity, high efficiency, low consumption, discharging evenly. Moreover, it has the following features, such as low noise, no pollution, easy operation, and simple maintenance.

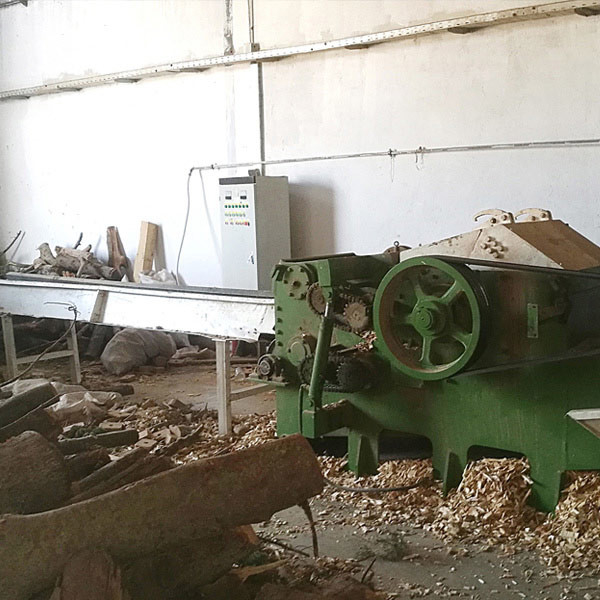

Final chips from the wood chipper


15t Ph Wood Chips Bamboo Chipper Machine For Energy Generation 1


15t Ph Wood Chips Bamboo Chipper Machine For Energy Generation 2
