Detail Information |
|||
| Product Name: | Pallet Legs Nailing Machine | Board/block Thickness: | Less Than 130 Mm |
|---|---|---|---|
| Air Pressure: | 8 MPa | Coil Nails: | Length< 57 Mm |
| Nailing Gun: | 3 Pieces MAX CN70 | Control: | PLC Touch Screen |
| Keywords: | Pallet Legs Nailing Machine,wood Pallet Nailing Machine,european Pallet Nailing Machine | ||
| Highlight: | Pallet Legs Automatic Nailer Machine,1350mm Automatic Nailer Machine,Pallet Legs Nailing Machines |
||
Product Description

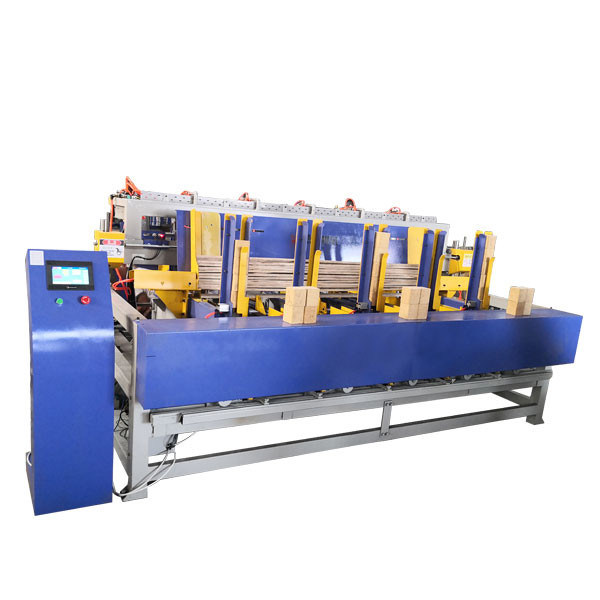

Automatic wood pallet legs nailing machine has two parts, one is the feeding part, and another is the nailing part. And it can nail wood pallet leg automatically, and can make 8~10 pcs/min, with high efficiency. Also, save the labor cost, automatic European wood pallet legs nailing machine just need one worker can operate, manual feeding the blacks, then machine working nailing pallet leg aromatically.
| Wood board length | 800-1350 mm |
| Wood board width | 80-150 mm |
| Wood board thickness | 12-20 mm |
| Wood block length | 80-150 mm |
| Wood block width | 80-150 mm |
| Wood block thickness | 80-100(110) mm |
| Wood board + wood block thickness | less than 130 mm |
| Capacity | 600-720 pieces/hour |
| Nailing gun | 3 pieces MAX CN70 |
| Coil nails | 3000 nails/coil, max. 57 mm length, |
| Nailing motor power | 2.25 kW |
| Feeding block motor power | 0.75 kW |
| Total power | 3 kW |
| Voltage | 380 V, 50 Hz, 3phase (Can customize) |
| Air pressure | 8 MPa |
| Electric components | Schneider brand |
| Pneumatic components | Airtac brand |
| PLC touch screen | Siemens |
| Machine dimension | 6 m*2.4 m*2.4 m (L*W*H) |
| Machine weight | 1100 kg |
