Pneumatic 2pcs/Min Wood Pallet Nailer Machine With Touch Screen

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wood pallet for global shipping Delivery Time : 30-50 work days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20-40 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1300MD

Detail Information

Color: Blue Overall Dimension: 2000*2800*2600 Mm
Nail Apply: Less Than 80mm Capacity: 1-2 Pallet/minute
High Light:

pallet nailer for sale


pallet nailer machine


auto nailer pallet machine

Product Description

Wood Pallet Nailing Machine Automatic European/American/Stringer Wood Pallet Nailer Ty-1300MD 2000*2800*2600mm Blue

Product Basics of Wood Pallet Nailing Machine
It is the latest version of pallet nailing machine which is also called pallet machine, wood pallet nailing machine, pallet making machine, and so on. The automatic pallet nailing machine is used for production of American standard wood pallet, also known as stringer wood pallet, European standard wood pallet and customized wood pallet.


Technical Parameters of Wood Pallet Nailing Machine:

Model TY-1300MD
Capacity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Air pressure 0.8 MPa
Weight 2000 kg
Overall dimensions

The host 2000*2800*2600 mm

Stacking 2600*1900*1600 mm

Working mode Artificial feeding/Auto Nailing/Auto stacking
Operating mode Touch screen control
Operational mode Pneumatic operation
Tank size 0.2 cubic meters
Nail gun speed 7 time/second
Nail apply Less than 80 mm
Voltage 380 V, three-phase


Pneumatic 2pcs/Min Wood Pallet Nailer Machine With Touch Screen 0

Pneumatic 2pcs/Min Wood Pallet Nailer Machine With Touch Screen 1Pneumatic 2pcs/Min Wood Pallet Nailer Machine With Touch Screen 2Pneumatic 2pcs/Min Wood Pallet Nailer Machine With Touch Screen 3

Pneumatic 2pcs/Min Wood Pallet Nailer Machine With Touch Screen 4


Features and Advantages of Wood Pallet Nailing Machine
1.Highly automated. The nailing process is controlled with PLC program via mechanical and pneumatic devices.

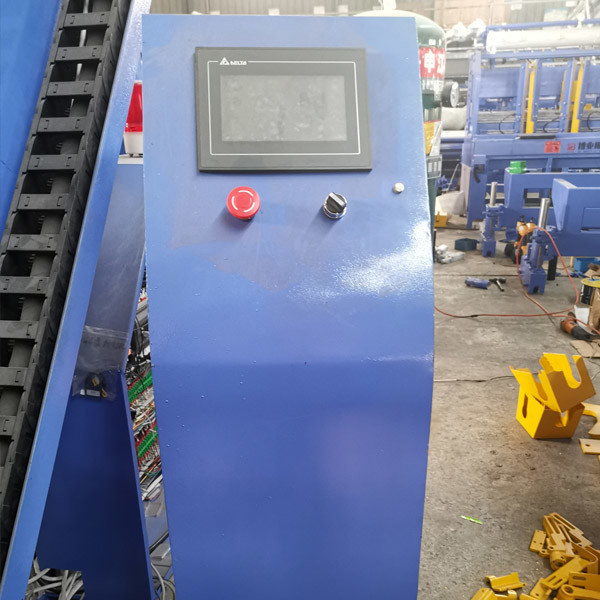

2.Simple operation. Operate the machine by inputting motion orders on smart touch screen which is very simple and clear.
3.High capacity. In regular, it can produce 1-2 pallets per minute.
4.Durability and stability. With precise designing and structure, it has a long term stable service life.
5.Labor saving. This machine works under operation of one worker.
6.One-stop pallet nailing and stacking. After nailing process, the complete pallets will be stacked up automatically in stacks.
7.Quality and service. We have been providing our customers with both high quality products and supportive after-sales services.


Company Profile

ThoYu is the professional machine manufacturer with 15 years’ experience in China. We specialize in wood working machines, wood pallet machine, pallet block machine, plastic pallet machine, fruit grading machine, garlic grading machine, and fruit pitting machine, wood pallet production line, pallet block production line, and plastic pallet production line.


ThoYu machines are sold well all over the world, such as France, Finland, Spain, Greece, Turkey, Tunisia, Romania, Algeria, UAE, Dubai, Estonia, Ukraine, United States, Canada, Mexico, Colombia, Chile, Argentina, Peru, Egypt, South Africa, Iran, Philippines, India, and Indonesia, and other countries and regions, which are thought highly by our clients.


With the concept of “TO YOU FOR YOU”, we serve clients sincerely and also await win-win cooperate with the clients at home and abroad.


2008 ThoYu was founded. In the beginning, we just produced fruit grading machine, garlic grading machine, and fruit pitting machine.
2009 We joined and got more and more overseas orders.
2010 For the first time, we sold our wood pallet machine to overseas customers.
2012 We obtained a CE certificate for our wood pallet machine and pallet block machine.
2014 We developed new presswood pallet machine, which solved the system stability problem of first generation.
2015 We updated our pressed wood pallet machine, which solved the scope of raw materials problem of second generation.
2016 We upgraded our compressed wood pallet machine daily capacity problem of third generation.
2018 Our new big factory in Jiaozuo, China was completed and put into operation. We run new presswood pallet production line.
