CNC Wooden Pallet Nailer Machine

Product Description

Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet

Introduction of Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet

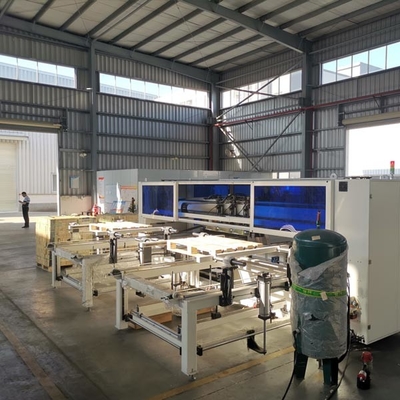

Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet is designed specifically for high volume production reaching out-put goals of 2-3 pallets per minute. With simple adjustments, adjustable size CNC pallet nailing machine for wooden pallet can accommodate 3 to 4 stringer pallets that range from 36″ x36″ to 48″ x 48″ in size. The 4th stinger package is an additional purchase option. With 15 years in the making, Adjustable size CNC pallet nailing machine for wooden pallet was designed for simplicity, durability, and high volume. This gives you a lower up-front investment while maintaining your competitive edge.

Included with adjustable size CNC pallet nailing machine for wooden pallet are several automatic feeders where decking and stringer board material can be placed so that the jig assembly can retrieve pallet material in its automated nailing process. If the dimensions of the cut stock are inconsistent the deck boards can be loaded manually, as well. Three operators are required to run adjustable size CNC pallet nailing machine for wooden pallet to supply lumber to each station. Adjustable size CNC pallet nailing machine for wooden pallet is specially designed with its continual feed jig assembly conveyor allowing the nailing process to be continuous. This non-stop two-part action conveys the pallet materials under each nailing station giving high production rates of 4 to 6 pallets per minute or more.

Specifications of Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet

1. Main Frame: Grade B Structure Steel Tubing
2. Gun Support: Upper head assembly with mounted nail gun supports
3. Adjustability: Handwheel adjustability for nail gun elevation
4. Carriage: continuous feed tabletop conveying system with jig design
5. Board Feeders: Stinger board feeder & deck board feeders
6. Flipper: Automated electric pallet flipper
7. Transfer System: Pallet Transfer system with Stacker
8. Guarding: Side Guarding
9. E-Stops: mounted at both ends of the machine

Features of Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet

1. The additional component can be added (jigs, stackers, and benches)
2. Guaranteed performance (managed by numerical check)
3. The memory of up to 15 programmes

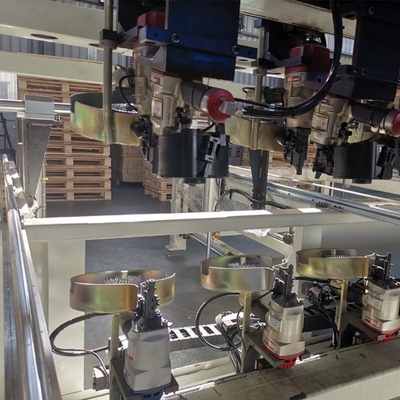

4. Can be fitted with different types of nail and nailers
5. Adjustable axis speed with acceleration and deceleration ramp
6. Bridge: Nailing Bridge includes (6) mounting supports
7. Nail Guns: Recommended Max 70 Guns
8. Controls: PLC with push-button controls

Parameters of Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet

Advantages of Adjustable Size CNC Pallet Nailing Machine for Wooden Pallet

1. Universality: Adjustable worktop allows to produce EUR pallets, pallets on 2, 3, or 4 brackets or squared timber
2. It saves time: Fast modifications to different size of pallets
3. Pneumatic clamp: The possibility to center the blocks
4. Pneumatic pushback of the pallet: Relieves operator’s muscles
5. Rail mounting system for balancers: Nailers can move freely during work
6. Extra template: The possibility to produce the “bottom” of the pallet
7. Adjustable steel anvils: Bending smooth nails in pallet production
8. Innovation:

the unit to adjust the table diagonal shortens work by 50%

the only table in the world that makes it possible to nail CP1, CP2, CP3, CP4, CP5 pallets

only 2 keys to adjust the table
