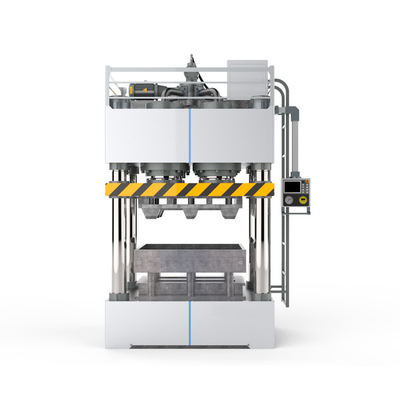

Single Mould Sawdust Preessed Wood Pallet Machine

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYYJ-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-50 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 20 sets per month

Detail Information

Product Name: Pressed Wood Pallet Machine Capacity: 240 Pcs/day (24 Hours)
Hydraulic Cylinder Quantity: 4 Pieces Hydraulic Cylinder Diameter: 350/380 Mm
Pressure: 0-1200 Tons (adjustable) Shaping Cycle: 350 Seconds
Keywords: Sawdust Pallet Machine,pressed Wood Pallet Machine,sawdust Wood Pallet Machine
High Light:

Single Mould Presswood Pallet Machine


Sawdust Presswood Pallet Machine


Single Mould Wood Pallet Machine

Product Description

Single Mould Sawdust Preessed Wood Pallet Machine

Single mould wood pallet machine is a new type of one time forming machine. It is also called wood pallet machine, wood pallet molding machine.

Single mould wood pallet machine meets the requirement of environmental protection, which can help to recycle raw materials, such as wood chips, waste wood pallets, waste wood, timbers, kraft paper, straw, bamboo, even if plastic etc.

Single mould wood pallet machine can help solve the problem of the environment and also make profits.

Single Mould Preessed Wood Pallet Making Machine

Raw materials:

  1. Waste wood, the scrap of the wood, sawdust wood chips, wood shaving, wood chips, big chips, raw wood, burned forest, logs, wood board, branches, timber, wood flakes, and waste pallets, and so on.
  2. Containing rich fibre also can be used to produce the pallets, such as straw, waste kraft paper, bamboo, palm trees, coconut, softwood, wheat straw, bagasse, and miscanthus, and so on.

Raw materials for single mould wood pallet machine are spreading all over the world, which lower the investment of wood pallet machine.

Technology Parameters of Single Mould Wood Pallet Machine:

Single Mould Wood Pallet Machine
Model TYYJ-1000 TYYJ-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pcs/day (24 hours)  240 pcs/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 tons (adjustable) 0-1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm

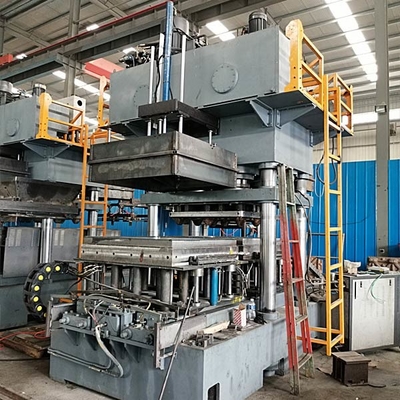

Single Mould Sawdust Preessed Wood Pallet Machine 1

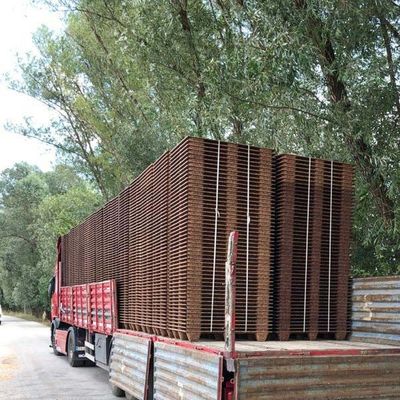

Features of final pressed wood pallet:

  1. Low moisture content and constant intensity and rigidity. The pressed wood pallet is non-hygroscopic and no deformation in the course.
  2. Stable dimension and no distortion and warping.
  3. High precision size and lightweight. It is a specifically designed reinforcing rib that ensures intensity and production accuracy.
  4. Free fumigation and popular in import and export transportation.


Single Mould Sawdust Preessed Wood Pallet Machine 2
