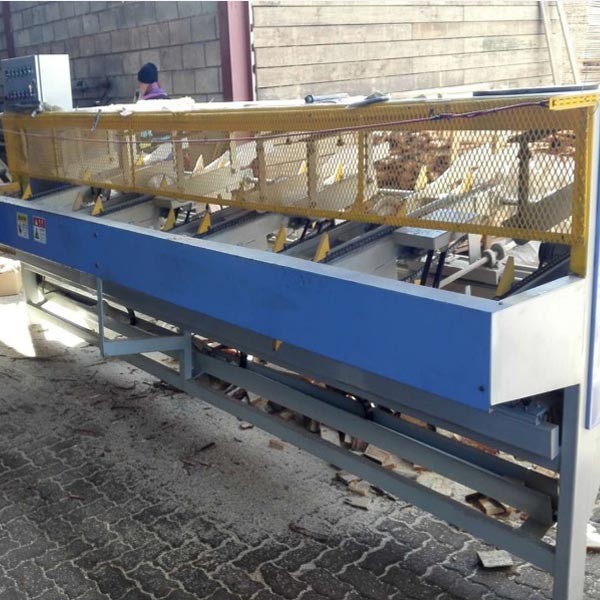

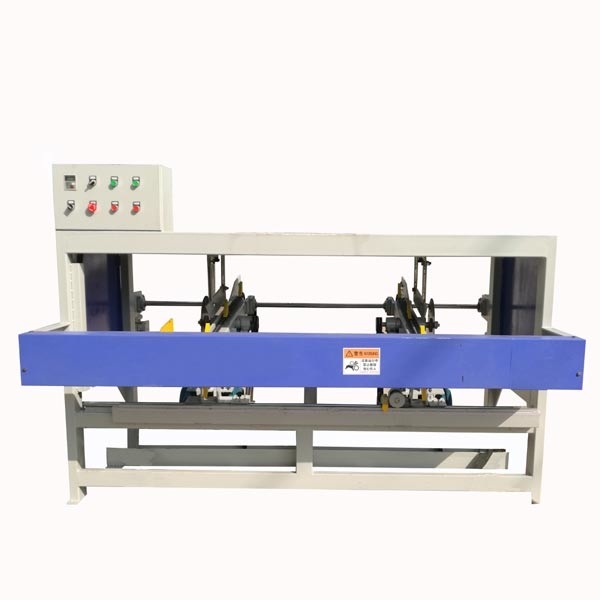

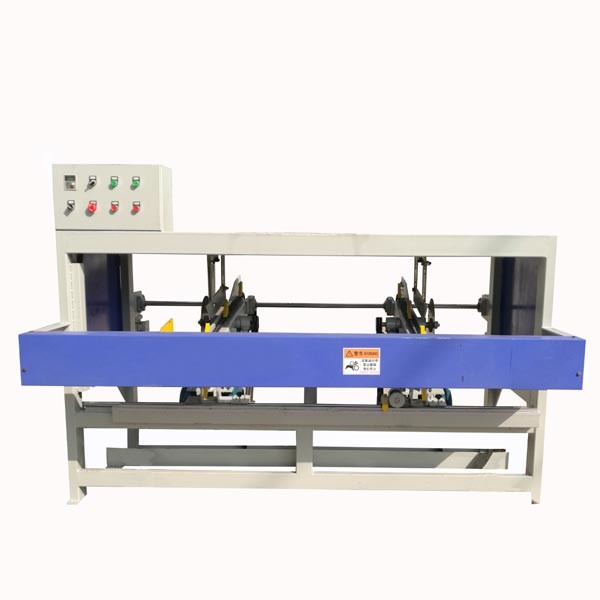

Cutting Off Board Wood Bandsaw Mill

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYMBJ-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-120 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 20 sets per month

Detail Information

Product Name: Automatic Wood Board Cutting Off Saw Thickness Range: 15-100 Mm
Cutting Length: 600-6000 Mm Motor Power: 18 KW
Weight: 980 Kg Capacity: 22500 Pcs/h
High Light:

Board Wood Bandsaw Mill


Cutting Off Wood Bandsaw Mill


18kW Bandsaw Wood Mill

Product Description

Max Length 6000 Mm Automatic Wood Board Cutting Off Saw machine


Automatic wood board cutting off saw is indispensable mechanical equipment in the process of wood processing and can be found everywhere in the major wood processing plants. The equipment is mainly through the automatic cutting, cutting, segmented processing of the board, according to the size of the customer automatically cut off.


Compared with the traditional manual cut-off saws, multi-head automatic wood board cutting off saw is more efficient and easier to operate, which is favored by the majority of manufacturers and is increasingly widely used in the wood pallet production industry and can be customized for different specifications of wood processing equipment.


Automatic wood board cutting off saw parameters


Motor power 6 kW 12 kW 18 kW
Weight 350 kg 500 kg 980 kg
Dimension 2000*700*1300 mm 4300*1400*1100 mm 6200*1400*1100 mm
Length range 600-1500 mm 600-4000 mm 600-6000 mm
Thickness range 15-50 mm 15-100 mm 15-100 mm
Capacity 2000 pcs/h 15000 pcs/h 22500 pcs/h


Cutting Off Board Wood Bandsaw Mill 0

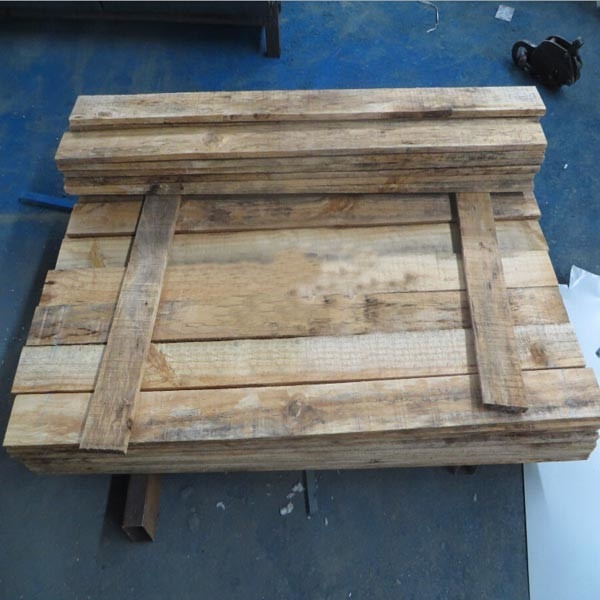

The capacity of double-head cut off saws for wooden pallet panels: 7,000 pieces of wood per hour.

Applicable range: length in 2000 mm, width in 40 mm or less.

Advantages: different sizes can be automatically combined to improve wood utilization, safety, and ease of operation, and smooth cutting surface.


Automatic wood board cutting off saw advantages

  1. High-quality chain, strong transmission
  2. Professional switchboard, safer to use the equipment, rest assured!
  3. High-quality reducer, more stable operation
  4. Alloy steel saw blades for high cutting power and long service life.
