Automated Wood Timber Lumber Logs Cutting Saw Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYCS-6000

Detail Information

Name: Automated Wood Timber Lumber Logs Cutting Saw Machine Max Cutting Length: 6000 Mm
Max Cutting Width: 200 Mm Blade Diameter: 500 Mm
Max Cutting Height: 100-160 Mm Main Motor Power: 7.5 KW
High Light:

industrial horizontal wood band saw


5500MM horizontal wood band saw


Woodworking Horizontal Band Saw

Product Description

Automated Wood Timber Lumber Logs Cutting Saw Machine


Introduction to Automated Wood Timber Lumber Logs Cutting Saw Machine

This circular saw machine is developed for high production, precision, economic cutting. The circular saw is controlled with an electric engine with a PLC control system. It is very simple and easy to operate. The circular saw machine presets feeds and speeds according to material specifications.


We offer two different models of this machine TYCS-4000 and TYCS-6000 with different specifications which you can find from the table of technical parameters below.


Technical Parameters of Automated Wood Timber Lumber Logs Cutting Saw Machine

Model TYCS-4000 TYCS-6000
Dimension of working table 5000*700*980 mm 7000*700*980 mm
Max cutting length 4000 mm 6000 mm
Max cutting width 200 mm 200 mm
Blade diameter 500 mm 500 mm
Max cutting height 100-160 mm 100-160 mm
Main spindle rotating speed 3500/rpm 3500/rpm
Main motor power 7.5 kW 7.5 kW
Net weight 950 kg 1100 kg
Overall dimension 7300*1200*1500 mm 9300*1200*1500 mm

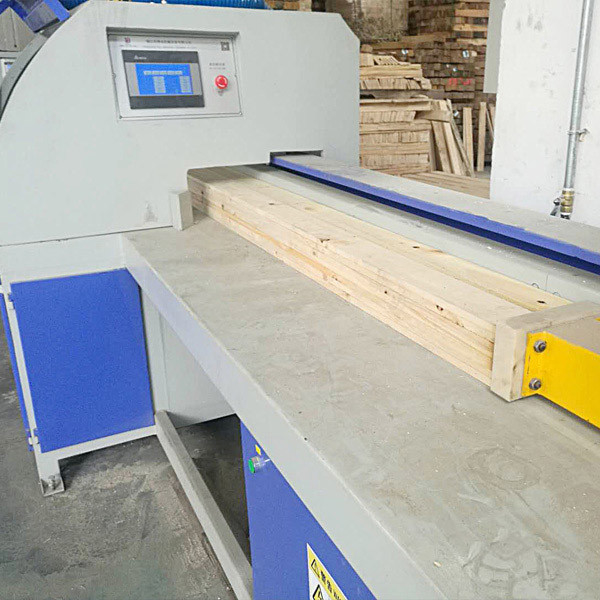

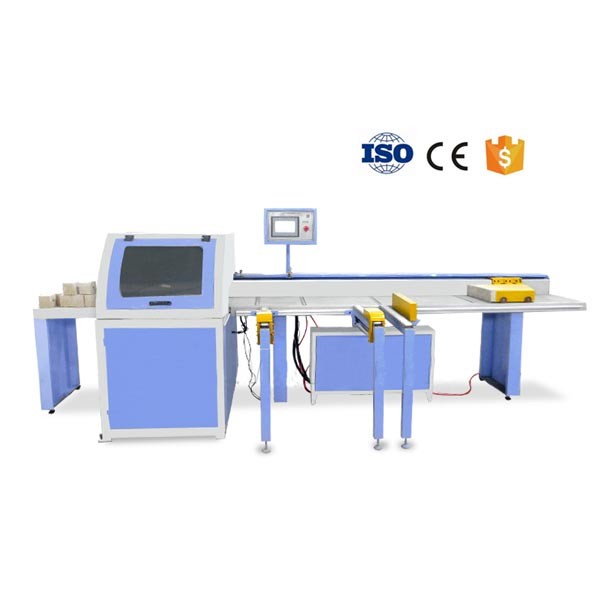

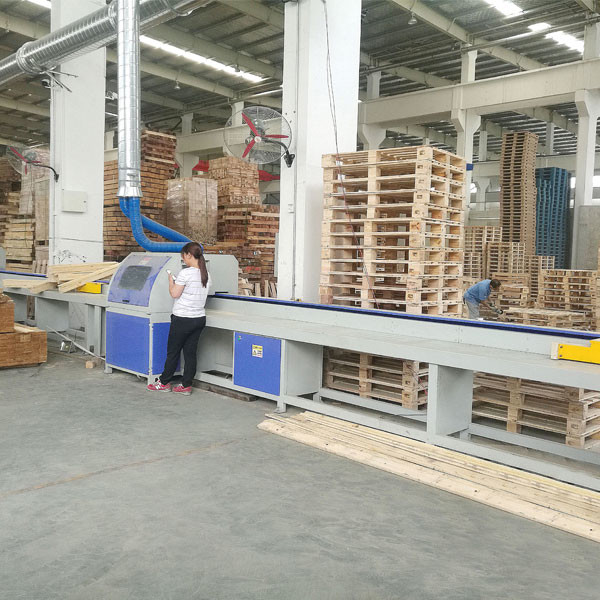

Automated Wood Timber Lumber Logs Cutting Saw Machine 0

Automated Wood Timber Lumber Logs Cutting Saw Machine 1

Automated Wood Timber Lumber Logs Cutting Saw Machine 2

Advantages of Automated Wood Timber Lumber Logs Cutting Saw Machine

1. High Safety. Automated feeding and cutting so that the worker does not touch the blade which reduces the risks of injuries.​

2. Quantity sawing. The cutting surface is smooth without burrs edges.

3. Adjustable cutting size. The machine can set 5 sets of sawing parameters at a time to reduce cutting loss and make the most use of materials.

4. High Performance. This machine adopts world-class spare part for reliable and stable performance, so the machine has a low fault rate and less maintenance.


Company Profile

ThoYu is a professional machine manufacturer with 15 years of experience in China. We specialize in woodworking machines, wood pallet machines, pallet block machines, plastic pallet machines, wood pallet production line, pallet block production line, and plastic pallet production lines.


ThoYu machines are sold well all over the world, such as France, Finland, Spain, Greece, Turkey, Tunisia, Romania, Algeria, UAE, Dubai, Estonia, Ukraine, United States, Canada, Mexico, Colombia, Chile, Argentina, Peru, Egypt, South Africa, Iran, Philippines, India, and Indonesia, and other countries and regions, which are thought highly by our clients.


With the concept of “TO YOU FOR YOU”, we serve clients sincerely and also await win-win cooperation with the clients at home and abroad.



2008 ThoYu was founded. In the beginning, we just produced a fruit grading machine, garlic grading machine, and fruit pitting machine.

2009 We joined and got more and more overseas orders.

2010 For the first time, we sold our wood pallet machine to overseas customers.

2012 We obtained a CE certificate for our wood pallet machine and pallet block machine.

2014 We developed a new presswood pallet machine, which solved the system stability problem of the first generation.

2015 We updated our pressed wood pallet machine, which solved the scope of raw materials problem of the second generation.

2016 We upgraded our compressed wood pallet machine daily capacity problem of the third generation.

2018 Our new big factory in Jiaozuo, China was completed and put into operation. We run a new presswood pallet production line.
