CNC Solid Wooden Pallet Slats Cutting Saw Machine For Pallet Production

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYCS-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-30 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 60 sets per month

Detail Information

Product Name: CNC Solid Wooden Pallet Slats Cutting Saw Machine Max Cutting Length: 6000 Mm
Max Cutting Width: 200 Mm Max Cutting Height: 100-160 Mm
Blade Diameter: 500 Mm Spindle Rotating Speed: 3500/rpm
High Light:

Automatic Timber Sawmill Machine

,

3500rpm Timber Sawmill Machine

,

Portable Band Saw Mills

Product Description

CNC Solid Wooden Pallet Slats Cutting Saw Machine For Pallet Production

Introduction of CNC Solid Wooden Pallet Slats Cutting Saw Machine

CNC solid wooden pallet slats cutting saw machine is the computer program control wood cutting saw. And it is mainly used for the blanking process of pallet panels, pallet blocks, and traditional wooden boxes. Besides, CNC wood timber saw machine is also be used for the production of furniture components. Compared with the ordinary cutting process, ThoYu electronic wood cutting saw has great advantages, such as wood batch standardized production, fully utilizing raw materials, reducing on-duty personnel, improving production efficiency, rational managing of personnel, and ensuring product safety. Therefore, CNC wood timber saw can help you to save production costs, increase profits, and gain generous returns.

CNC solid wooden pallet slats cutting saw machine is controlled by a computer program. The production line can be optimized into the best cutting plan, through reasonable calculation and length matching. And it is cutting wood materials in a transverse way, which can greatly increase the production efficiency and processing precision. What’s more, wood electronic control saw also can replace the manual or traditional machine in production so as to meet the factory mass production requirements. Thus, it can solve the problem of low efficiency, high precision error, and difficult management in the production process.

CNC Wood Board Wood Block Cutting Saw

CNC solid wooden pallet slats cutting saw machine technical parameters

Model TYCS-4000 TYCS-6000
Dimension of working table 5000*700*980 mm 7000*700*980 mm
Max cutting length 4000 mm 6000 mm
Max cutting width 200 mm 200 mm
Blade diameter 500 mm 500 mm
Max cutting height 100-160 mm 100-160 mm
Main spindle rotating speed 3500/rpm 3500/rpm
Main motor power 7.5 kW 7.5 kW
Net weight 950 kg 1100 kg
Overall dimension 7300*1200*1500 mm 9300*1200*1500 mm

CNC solid wooden pallet slats cutting saw machine characteristics

  1. Mitsubishi industrial control, more stable performance.
  2. Low noise design, reducing the noise of the workshop.
  3. Free combination sawing dimensions to reduce production waste.
  4. The equipment is simple and flexible, and one worker can operate it.
  5. The high rate of output, reducing the amount of cutting losses.
  6. Sawing pallet blocks rapidly; high precision.
  7. Safety: The worker's finger does not touch the blade, reducing the worker's injury during the whole operation process.
  8. An intelligent human-machine interface makes the operation extremely easy and efficient. And it also displays automatically that the abnormal information and troubleshooting instructions.
  9. It also can set 5 sets of sawing parameters at a time and automatic operation.
  10. It adopts limit switch control and hydraulic automatic feeding.

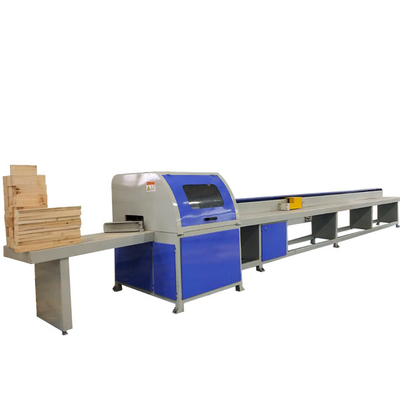

CNC Solid Wooden Pallet Slats Cutting Saw Machine For Pallet Production 1



CNC solid wooden pallet slats cutting saw machine details

1. High quality

International standards

Stable structure

High rigidity, high durability

2. Advanced technology

Hydraulic clamping

Stepless frequency control

Smooth operation

3. Equipping international high-quality electric system

Mitsubishi industrial control

Standard electronic circuitry and hydraulic system

4. High efficient production

Quantity sawing, greatly improving production efficiency

Automatic feeding

5. Customized service is available.

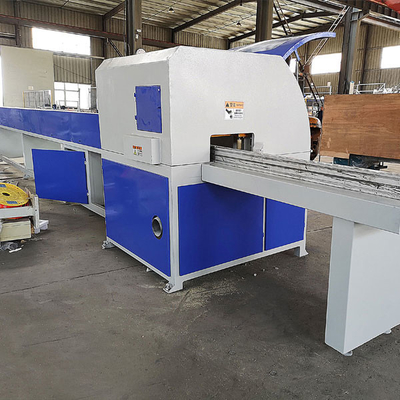

CNC Solid Wooden Pallet Slats Cutting Saw Machine For Pallet Production 2
