4 Way Entry Recycled Compression Molded Wood Pallet Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-50 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYYJSM-1200

Detail Information

Product Name: Compression Molded Wood Pallet Machine Warranty: 1 Year
Weight: 30 Tons After-sales Service Provided: Engineers Available To Service Machinery Overseas
Dimension (l*w*h): 4200*2200*3500 Mm Voltage: Customized
Keywords: Compression Pallet Machine,molded Wood Pallet Machine,wood Pallet Machine
High Light:

molded wood pallet machine

,

wood pallet machine

,

compression pallet machine

Product Description

4 Way Entry Recycled Compression-Molded Wood Pallet Machine



Introduction of 4 Way Entry Recycled Compression-Molded Wood Pallet Machine

4 way entry compression-molded wood pallet machine is used to produce pressed pallets from wood particles or fibers bonded together with urea-formaldehyde resin. Molded wood pallets with stackable legs are made of pre-defined specifications, however, a full board with wooden block pallets can be made as per the specifications and drawings of the customer.

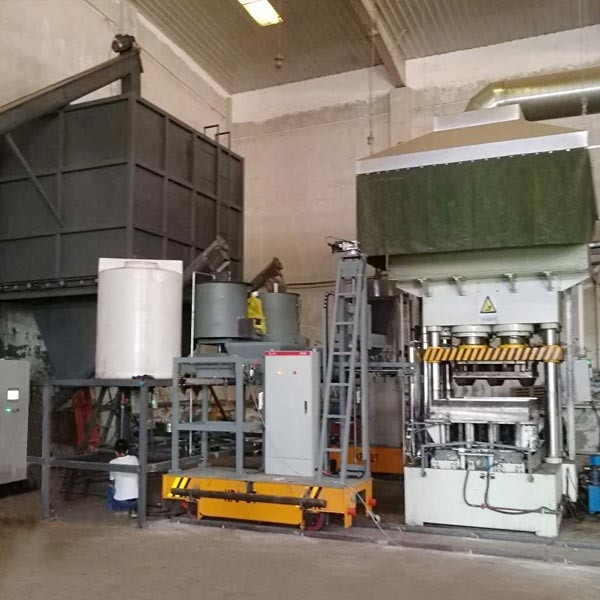

4 Way Entry Recycled Compression Molded Wood Pallet Machine 0

Molded Wood Pallets Production Process



Ingredient inputs -> Chipper -> Flaker -> Drying Process -> Dust Elimination -> Blender Process -> Press Process -> Inspecion and Product Output



Compression-Molded Wood Pallet Machine Parameters

Compression-molded wood pallet machine
Model TYYJ-1200
Voltage customized
Capacity 240 pieces/day (24 hours)
Power 22 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0-1200 tons (adjustable)
Shaping cycle 300 seconds
Weight 30 tons
Dimension 4200*2200*3500 mm
Remarks: it includes two sets of normal mould along with one set machine.

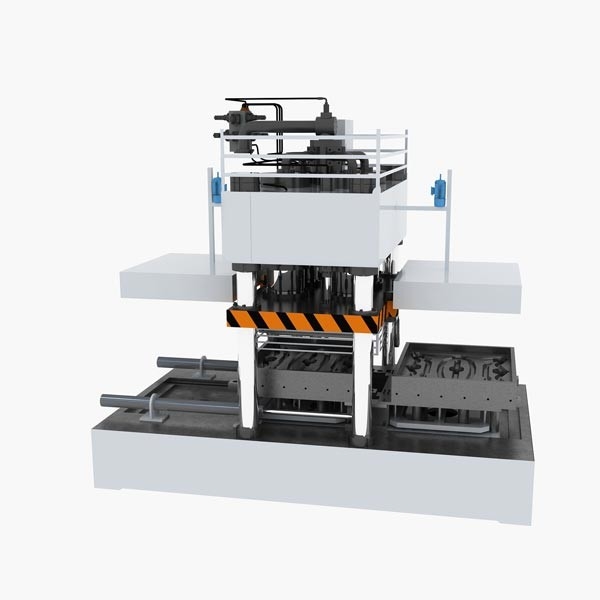

4 Way Entry Recycled Compression Molded Wood Pallet Machine 1



Molded Wood Pallets Features

  1. Quarantine-free safety and medical inspection systems. Pressed wood pallets do not have to be placed under quarantine, since they are fabricated using heat and pressure processes recommended by the International Standard for Phytosanitary Measures (ISPM) 15. Thus, pressed wood pallets are exempted from ISPM 15 standards and do not require fumigations as per Clause 2.1 Revision of ISPM No. 15 – Regulation of Wood Packaging Material in International Trade.
  2. No SIREX treatment required
  3. No Mold or Insect damage
  4. RoHS compliant and Halogen Free
  5. Complies with EMS policies of not using solid wood
  6. Superior product features
  7. Pressed wood pallets can be forked from four directions and improved dimensional consistency.
  8. Biodegradable. Pressed wood pallets are completely safe and bio-degradable. It leaves no harmful chemicals after decomposition.

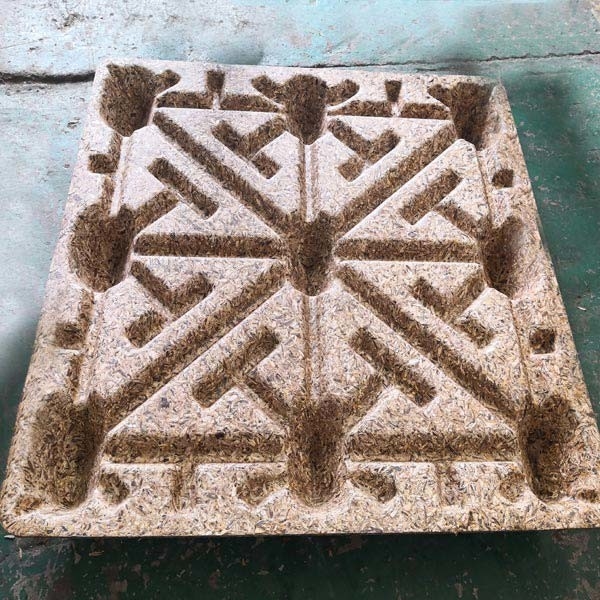

4 Way Entry Recycled Compression Molded Wood Pallet Machine 2

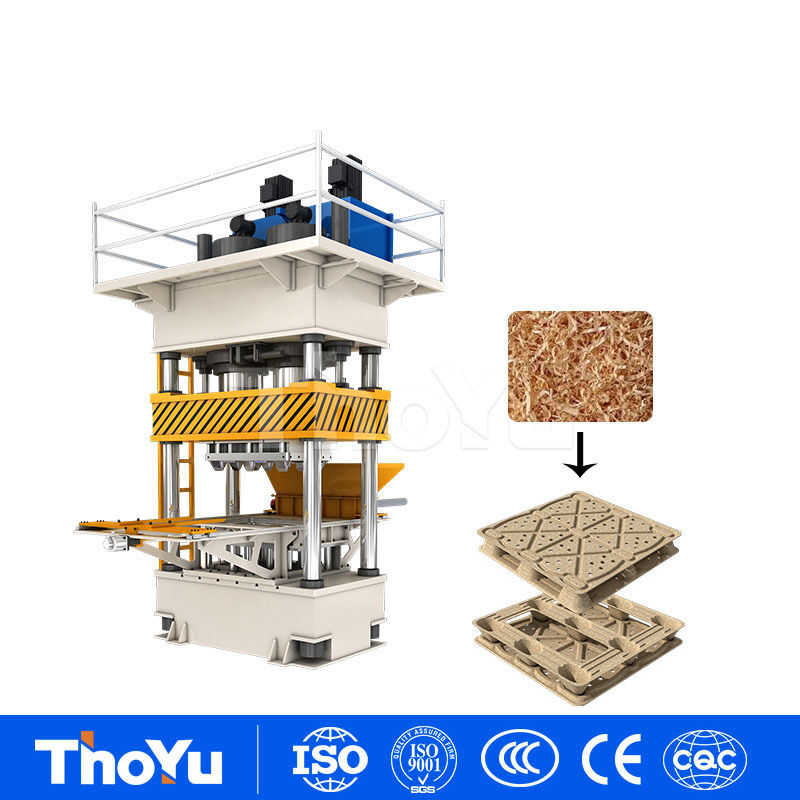

4 Way Entry Recycled Compression Molded Wood Pallet Machine 3
