240 Pcs Per Day Palm Tree Leaves Pressed Pallet Making Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-50 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 15 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYYJ-1000

Detail Information

Product Name: Palm Tree Leaves Press Pallet Making Machine Model: TYYJ-1000
Capacity: 240 Pcs/day Power: 18.5 KW
Pressure: 0-1000 T (adjustable) Shaping Cycle: 350 Seconds
High Light:

pressed pallet making machine

,

palm pallet machine

,

palm pallet making machine

Product Description

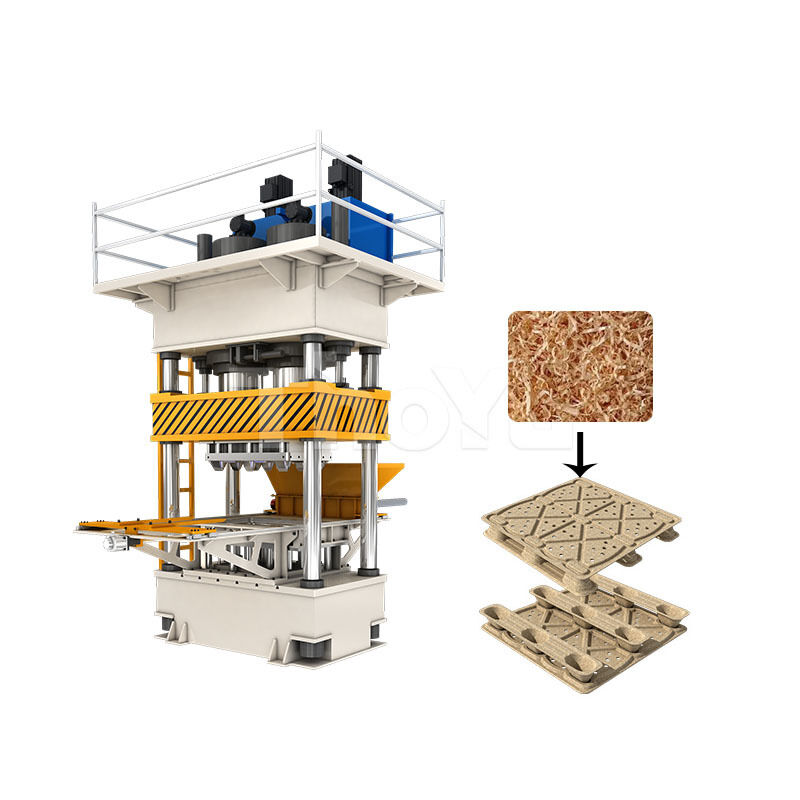

240 Pcs Per Day Palm Tree Leaves Press Pallet Making Machine



Palm tree leaves press pallet making machine is apply for making pallets using the palm tree leaves.



Palm Tree Leaves Press Pallet Making Machine Flow

  1. We collected 2 tons of fresh palm tree leaves from Wenchang city, Hainan province, the southernmost in China. Then use the crusher to crush to be size 3-5 mm thick,10-50 mm long.
  2. After crushing, we put them under the sun, so they can dry to be around 30% humidity.
  3. We use our rotary drum dryer to dry the crushed palm tree leaves materials to be around 5% humidity. Then it is the perfect moisture for making pallets. It needs 1.5 hours.
  4. We use our automatic mixer to mix crushed palm tree leaves Urea-formal dehydrates in liquid(glue) evenly. The automatic mixing system can control weight and start mixing automatically. The mixing process lasts 2minutes.
  5. Then we put the mixed raw materials into the molds of the palm tree leaves press pallet making machine. Set 1000 tons of pressure and keep pressing for 5 minutes. Then we get the final products.

240 Pcs Per Day Palm Tree Leaves Pressed Pallet Making Machine 0

Palm Tree Leaves Press Pallet Making Machine​ Parameters

Palm tree leaves press pallet making machine
Model TYYJ-1000 TYYJ-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pcs/day (24 hours) 240 pcs/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 tons (adjustable) 0-1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm



240 Pcs Per Day Palm Tree Leaves Pressed Pallet Making Machine 1



Test of Palm Tree Leaves Press Pallet

  • Statics loading capacity test. We put 11 tons of palm tree leaves press pallet making machine parts on the pallets to keep it for 24 hours. This pallet still stays in good status.
  • Dynamic loading capacity test. We put 1.5 tons of sandbags on the pallets and use a forklift to move the pallets with cargo. It shows the final quality is good enough.

240 Pcs Per Day Palm Tree Leaves Pressed Pallet Making Machine 2



Pallets made of palm tree leave to pass the test and it can meet the standard pallet usage requirement in logistics in domestic and international business trade. As it is the first time to make this kind of pallet in the industry successfully, which is very important for people to execute the new materials to recycle and protect the earth environment.



240 Pcs Per Day Palm Tree Leaves Pressed Pallet Making Machine 3
