Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-50 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 15 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1300MD

Detail Information

Item: Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet Function: Making American Pallets
Application: Wood Pallet Production Applicable Industries: Manufacturing Pallet
Working Mode: Auto Nailing And Auto Stacking Condition: New
High Light:

stringer pallet nailer machine

,

automatic pallet nailer machine

,

4 way entry pallet nailer

Product Description

Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet



Introduction of Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet



Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet mainly can apply to produce American stringer pallets and non-standard American pallets. Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet is equipped auto stacking platform, wood pallet lifting device, and flip picking device. So Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet is with high degree automation, smooth close process, complete nailing, and stacking in one time.



Specifications of Automatic Stacker Pallet Nailing Machine for American Stringer Pallet:

Model TY-1300MD
Productivity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Function Making wood pallet
Air pressure 0.8 MPa
Voltage 380 V, three-phase
Working mode Artificial feeding/Auto nailing/Auto stacking
Operating mode Touch screen control
Operational mode Pneumatic operation
Nail gun speed 7 time/second
Nail apply Less than 80 mm
Application Wood pallet production line
Applicable industries Manufacturing plant



How does Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet work?

Step 1: Put the pallet vertical bottom panels on Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet, and it will be clamp automatic.

Step 2: Then, put the horizontal panels, Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet will nail then together automatically. Then the same way nail the top side.

Step 3: The automatic stacking system of Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet can add transport system, then it can make the pallets stack more to save your space and labor cost.

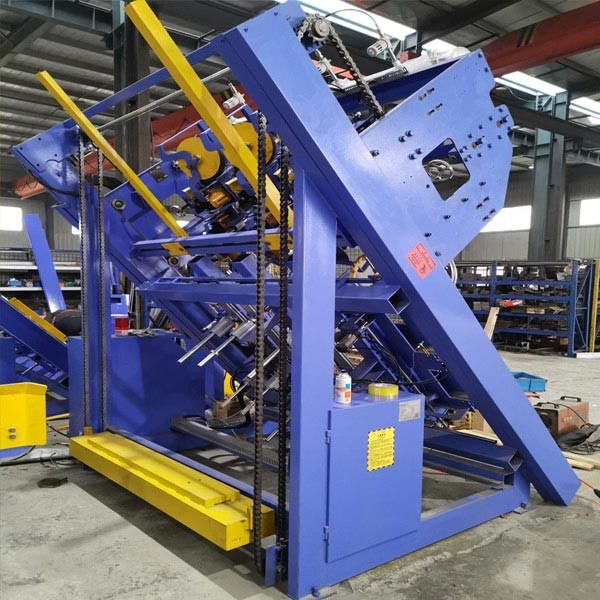

Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet 0





Advantages of Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet

  1. Operation: Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet will auto clamping after the worker put the wood pallet bottom bean in the machine, then put wood pallet plate, after automatic nailing. When complete it, the work needs to flip the other side, put the plate in, then nailing it.
  2. Operation program: Touch screen control, advanced programming, feeding mechanism, and nailing machine multi-axis linkage at the same time when working. Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet achieves fast and efficient nailing work. One more thing, it could switch different program basis on different material plates to produce non-standard pallets.
  3. Automatic stacking: Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet will form a line with nailing machine, after nailing, flip the wood pallet to stacking platform. It will achieve the effect of automatic collect wood pallet and easy to transport. It saves labor and operation time.

Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet 1

Features of Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet

Suitable for wood pallet size: 1200*1000 mm, 1200*800 mm, 1100*1100 mm, 1300*1100 mm, and so on

Pallet type: American Stringer pallets, non-standard American pallet, custom-made pallets

Stringer height: 70-130 mm

Stringer width: 30-50 mm

Tolerance: +/-3 mm

Foot & roof board thickness: 10-25 mm

Easy adjustable pallet size

Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet adopts a full automatic system, PLC control, simple touch screen operation, accurate pinning position with high efficiency.


Automatic 4 Way Entry Pallet Nailer Machine For Stringer Pallet 2
