Automatic Moulded Plastic Pallets Production Line Manufacturers

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1000

Detail Information

Product Name: Automatic Moulded Plastic Pallets Production Line Manufacturers Model: TY-1000
Power: 22KW Dimension: 4200*2200*3500 Mm
Shaping Cycle: 300 Seconds Hydraulic Cylinder Diameter: 350 Mm
High Light:

automatic plastic pallets production

,

plastic pallet production line manufacturer

,

plastic pallets production line

Product Description

Automatic Moulded Plastic Pallets Production Line Manufacturers



Introduction of Automatic Moulded Plastic Pallets Production Line Manufacturers:

Automatic Moulded Plastic Pallets Production Line Manufacturers is specially customized for the production of plastic pallets. Plastic pallet pressing machine has a three-beam and four-column structure with a maximum pressure of 1000 tons, the height is 5 meters and the weight is 20 tons. The holding time is 80 seconds.

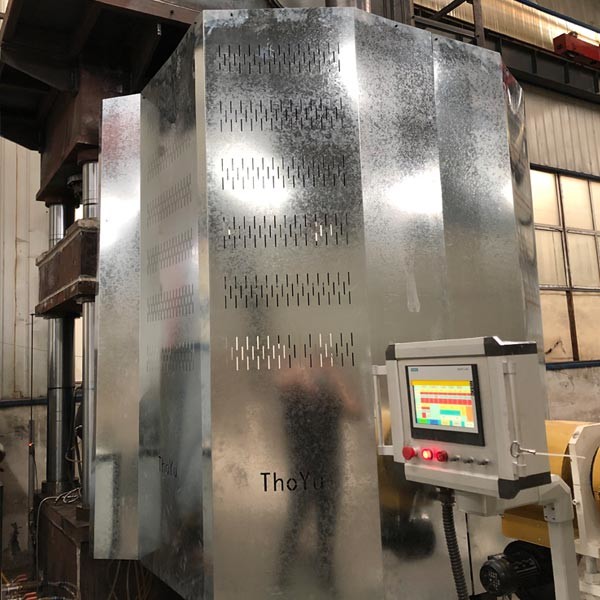

Automatic Moulded Plastic Pallets Production Line Manufacturers 0



Technical Parameters of Automatic Moulded Plastic Pallets Production Line Manufacturers:

Model TY-1000
Voltage 220 V/380 V, 50 Hz, three-phase
Capacity 240 pallets/day (24 hours)
Power 22 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0~1000 tons (adjustable)
Shaping cycle 300 seconds
Weight 30 tons
Dimension 4200*2200*3500 mm
Remarks: it includes one set of normal moulds along with one set machine.


Features of Automatic Moulded Plastic Pallets Production Line Manufacturers:

1. Environmental protection.
The plastic moulding pallet production line is the ideal line to recycle waste plastic. The production line is changing the waste plastic into the plastic pallet, so it helps to protect the environment.
2. Low production cost.
The price of the raw materials is less than 50%, so the production cost is also lower than 50%. In addition, the technology process of plastic pallet making line is easier and easy to operate.
3. Good final pallet.
The quality of the final plastic pallets is as good as the traditional ones. Meanwhile, the final pallets are a one-piece design, which is saving space 60% than the traditional ones.



Automatic Moulded Plastic Pallets Production Line Manufacturers 1



1. There are two kinds of raw materials, one is PP crushed material and the other is PP film. This is a plan and feeding method based on the requirements of customers. This method will be different, according to different raw materials.

2. Feeding and conveying: It is sent to the forced feeding machine through a belt conveyor.

3. The compulsory feeding equipment is equipped with a masterbatch device. And the masterbatch device feeds at a constant speed, which customized the pallet color you want to make the plastic pallet more beautiful. If there is no requirement for the color of the plastic pallet, this device can be omitted. This feeding rate needs to be modified in the program.



Features of Automatic Moulded Plastic Pallets Production Line Manufacturers:

1. Production counting, which can auto-stop or alarm in advance.

2. PLC system controls all actions with touch screen (HMI) operation, which is easy and convenient. And all production data can record and recall at any time.

3. All the parts are modules design, which is easy to install and maintain.

4. The hydraulic columns have nice characteristics with nice rigidity, wear-resistance, and exact guiding performance.



Our Advantages of Automatic Moulded Plastic Pallets Production Line Manufacturers:

1. High degree of automation

There is no manual operation in the process, which realizes the automatic control with long-term, stable, effective. It also makes pallet making process more stable and realizes fine work of production.

2. Good final pallet

The quality of the final plastic pallets is as good as the traditional ones. Meanwhile, the final pallets are a one-piece design, which is saving space 60% than the traditional ones.

3. Advanced technology

We update the traditional pallet making machine and independently produce the plastic pallet making machine. This production line adopts new technology to reduce the cost of raw materials.

4. Environmental protection

Shaping cycle short, plastic pallet machine to make plastic pallet is the ideal machine to recycle waste plastic. And plastic pallet making machine is changing the waste plastic into plastic pallets, so it helps to protect the environment.





Automatic Moulded Plastic Pallets Production Line Manufacturers 2



FAQ:

Q: Why we believe in your company?
A: a. We are a factory with more than 15 years of manufacturing experience.
b. We are the leading professional supplier of solutions, machines, and services for the pallet machine industry.
c. All products achieved ISO9001:2000 quality management certificate and CE certificate.



Q: Can you send me the video to show how the machine works?

A: Certainly, we have made videos of every machine and uploaded them to Youtube.



Q: What is the delivery time?
A: About 7- 45 working days after the contract signing (After getting deposit). Delivery time will vary depending on the type of machine, shipping method selected, and part availability.



Q: Do you provide equipment operation training?

A: Yes. Our technicians are available to guide the installation, adjustment, commissioning, and operation training of the machines on the working site.
