Fully Automatic Compressed Pallet Injection Molding Machine
Contact Person : Robin
Phone Number : +86-13733828553
WhatsApp : +8613733828553
|Minimum Order Quantity :||1 set||Price :||Negotiation|
|Packaging Details :||Strong wooden pallet for global shipping||Delivery Time :||20-50 working days|
|Payment Terms :||L/C, D/A, Western Union, MoneyGram||Supply Ability :||18 sets per month|
|Place of Origin:||China||Brand Name:||ThoYu|
|Product Name:||Fully Automatic Waste Plastic Recycling Processing Plant||Model:||TY-1000|
|Shaping Cycle:||300 Seconds||Weight:||30 Tons|
|Dimension:||4200*2200*3500 Mm||Voltage:||220 V/380 V, 50 Hz, Three-phase|
|Keywords:||Plastic Recycling Processing Plant, Plastic Recycling Plant, Waste Plastic Recycling|
plastic recycling plant,
waste plastic recycling,
plastic recycling processing plant
Fully Automatic Waste Plastic Recycling Processing Plant
Introduction of Fully Automatic Waste Plastic Recycling Processing Plant:
Fully Automatic Waste Plastic Recycling Processing Plant is designed to produce various moulding pallet, and is also called plastic pallet making machine, plastic pallet molding machine, pallet making machine, and so on.
Fully Automatic Waste Plastic Recycling Processing Plant is the new type of plastic pallet machine with high pressure.
Fully Automatic Waste Plastic Recycling Processing Plant meets the requirement of environmental protection, and can help recycle waste plastic to get profits.
Technical Parameters of Fully Automatic Waste Plastic Recycling Processing Plant:
|Voltage||220 V/380 V, 50 Hz, three-phase|
|Capacity||180 pallets/day (24 hours)|
|Hydraulic cylinder diameter||350 mm|
|Hydraulic cylinder quantity||4 pieces|
|Pressure||1000 t (adjustable)|
|Shaping cycle||300 seconds|
|Remarks: it includes one set of normal moulds along with one set machine.|
Characteristics of Fully Automatic Waste Plastic Recycling Processing Plant:
1. High capacity
2. Better molds design
3. High durability
We tested and upgraded numerous solutions and patterns, thus finally adopts the three-beam four-column structure.
1. High precision makes pallets surface smooth without burrs.
2. The four-column guide device assures the precision of closing molds and the stability of pressing during the operation of the press machine.
3. The upper mold is integrated with the “Sliding beam”, which doubles the strength, stability, and precision.
Features of Fully Automatic Waste Plastic Recycling Processing Plant:
1. Production counting, which can auto-stop or alarm in advance.
2. PLC system controls all actions with touch screen (HMI) operation, which is easy and convenient. And all production data can record and recall at any time.
3. All the parts are modules design, which is easy to install and maintain.
1. High degree of automation
There is no manual operation in the process, which realizes the automatic control with long-term, stable, effective. It also makes pallet making process more stable, and realizes fine work of production.

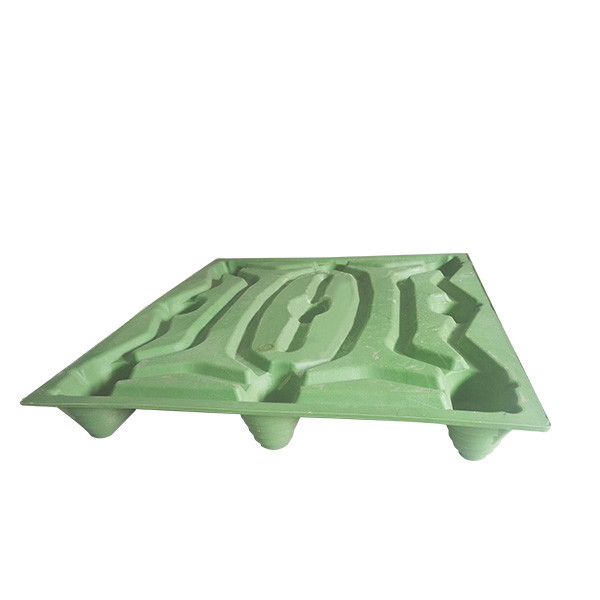

2. Good final pallet
The quality of final plastic pallets is as good as the traditional ones. Meanwhile, the final pallets are one-piece design, which are saving space 60% than the traditional ones.
3. Advanced technology
We update the traditional pallet making machine and independently produce the plastic pallet making machine. This production line adopts new technology to reduce the cost of raw materials.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and uploaded them to Youtube.
Q: What is the delivery time?
A: About 7- 45 working days after the contract signing (After getting deposit). Delivery time will vary depending on the type of machine, shipping method selected, and part availability.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide equipment operation training?
A: Yes. Our technicians are available to guide the installation, adjustment, commissioning, and operation training of the machines on the working site.
