Automatic Cp Series Hardwood Pallet Assembly Machine With Touch Screen
Contact Person : Robin
Phone Number : +86-13733828553
WhatsApp : +8613733828553
|Minimum Order Quantity :||1 set||Price :||Negotiation|
|Packaging Details :||Strong wooden pallet for global shipping||Delivery Time :||10-40 working days|
|Payment Terms :||L/C, D/A, Western Union, MoneyGram||Supply Ability :||5 sets per month|
|Place of Origin:||China||Brand Name:||ThoYu|
|Name:||Automatic Wooden Pallet Nailling Machine||Model:||TY-1300MD|
|Working Mode:||Artificial Feeding/Auto Nailing/Auto Stacking||Nail Apply:||Less Than 80 Mm|
|Application:||Wood Pallet Production Line||Voltage:||380 V, Three-phase|
american wooden pallet machine,
wooden pallet nailing machine,
china pallet machine

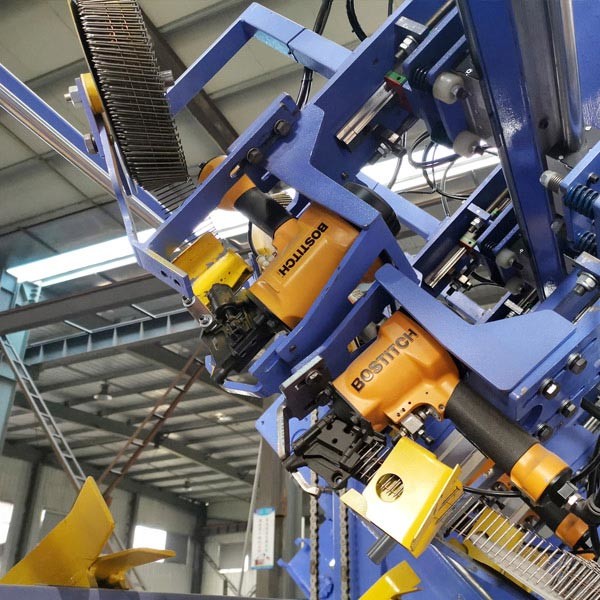

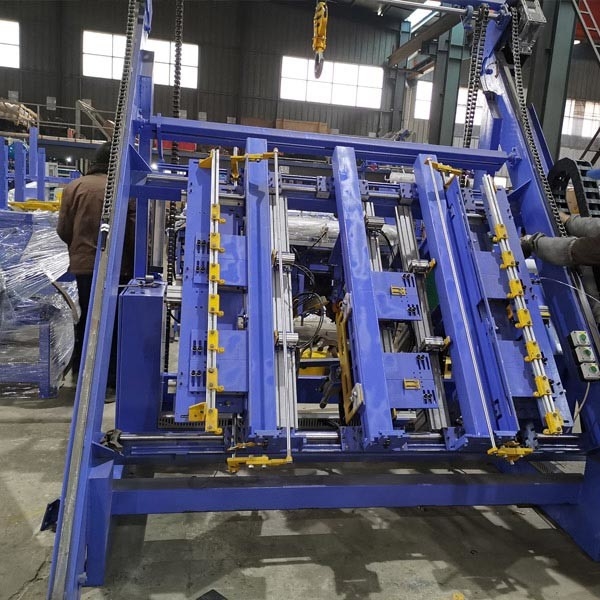

China Automatic American Wooden Pallet Nailing Machine
Introduction of Automatic American Wooden Pallet Nailing Machine
1) Automatic American wooden pallet nailing machine is mainly used in the production of American standard pallets and national standard pallets.
2) Automatic American wooden pallet nailing machine is equipped with a pallet finished product turning and picking device, which has a high degree of automation and a smooth and compact process. It can be equipped with automatic stacking for one-stop nailing and stacking production.
3) Automatic American wooden pallet nailing machine adopts fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position is standard. Compared to the domestic conventional production technology, multiple processes of automatic American wooden pallet nailing machine are completed at one time, which greatly improves the work efficiency.
4) Automatic American wooden pallet nailing machine adapts to different size requirements, and wood pallet size can be adjusted within 1.3*1.3 m.
Technical Parameters of Automatic American Wooden Pallet Nailing Machine
|Motor power||1.5 kW servo motor|
|Function||Making wood pallet|
|Air pressure||0.8 MPa|
|Voltage||380 V, three-phase|
|Working mode||Artificial feeding/Auto nailing/Auto stacking|
|Operating mode||Touch screen control|
|Operational mode||Pneumatic operation|
|Nail gun speed||7 time/second|
|Nail apply||Less than 80 mm|
|Application||Wood pallet production line|
|Applicable industries||Manufacturing pallet plant|
Q1: This is the first time I use this kind of machine, is it easy to operate?
A1: There is an English manual that shows you how to use the machine. If you still have any questions, please contact us by e-mail/skype/ phone /WhatsApp/trade manager online service.
Q2: How to install?
A2: We adjusted machines well before we delivered. When customers receive them, you can work with them directly.
Q3:How to ensure safety?
A3: There has overload and overheat protection, which ensure working people's safety.
