CNC Pallet Nailing Machine For American Wood Pallet

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-201DD

Detail Information

Name: CNC Pallet Nailing Machine For American Wood Pallet Capacity: 2 Pallets/minute
Workers: 2-3 Nail Size: 32-90 Mm
Overall Dimensions: 4540*5200*1985 Mm Weight: 3500 Kg
High Light:

cnc american pallet nailing machine

,

cnc pallet nailing machine

,

cnc wood pallet nailing machine

Product Description

CNC Pallet Nailing Machine for American Wood Pallet



Introduction of CNC Pallet Nailing Machine for American Wood Pallet



CNC pallet nailing machine for American wood pallet is a fixed chassis made of a structural tube with coil nail guns on a transport carriage. The carriage is moved by chains with 2 CV geared motors. It is a perfect machine to make a short or long production series. CNC pallet nailing machine for American wood pallet has great flexibility and allows a fast and easy changeover to make different types of pallets. In order to optimize your production, you can program its gear to work with one or two workers.



CNC pallet nailing machine for American wood pallet designed specifically for high volume production reaching out-put goals of 2-3 pallets per minute. With simple adjustments, CNC pallet nailing machine for American wood pallet can accommodate 3 to 4 stringer pallets. The 4th stinger package is an additional purchase option. CNC pallet nailing machine for American wood pallet was designed for simplicity, durability and high volume. This gives you a lower up-front investment while maintaining your competitive edge.



CNC pallet nailing machine for American wood pallet allows nailing planks together at the extremes on the upper side. It can also be configured not only for nailing pallets but also for nailing decks. Included with CNC pallet nailing machine for American wood pallet are several automatic feeders where decking and stringer board material can be placed so that the jig assembly can retrieve pallet material in its automated nailing process.



CNC pallet nailing machine for American wood pallet is specially designed with its continual feed jig assembly conveyor allowing the nailing process to be continuous. This non-stop two-part action conveys the pallet materials under each nailing station giving high production rates of 4 to 6 pallets per minute or more. If the dimensions of the cut stock are inconsistent the deck boards can be loaded manually, as well. Three operators are required to run CNC pallet nailing machine for American wood pallet to supply lumber to each station.

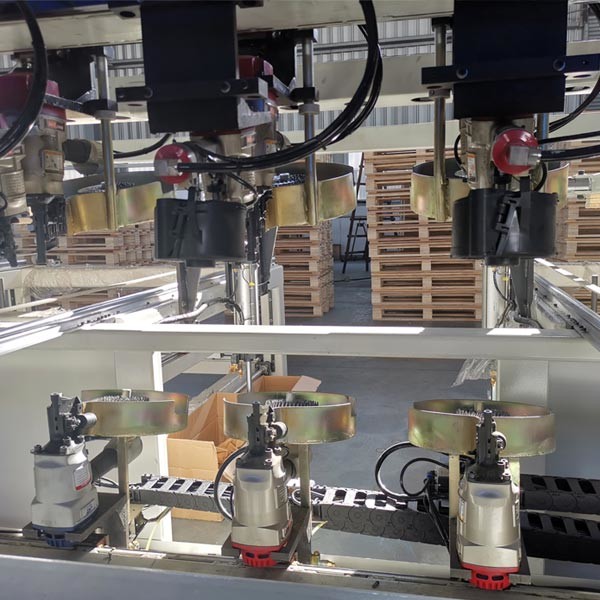

CNC Pallet Nailing Machine For American Wood Pallet 0

Features of CNC Pallet Nailing Machine for American Wood Pallet

  1. Automatic pallet nailing machine to produce 2 and 4-way pallets
  2. CNC pallet nailing machine to finish nailing with pneumatic nailing gun, if the pallet is perimetrical
  3. Turnover for nesting
  4. Rotator for nesting
  5. Corner cutting
  6. Automatic stacker
  7. Exit conveyor
  8. Modem for online technical support
  9. Production: 85-95 pallets/hour(1 worker); 120-130 pallets/hour(2 workers) in case of 2 way pallets
  10. Production: 80-85 pallets per hour(1 worker); 100-105 pallets/hour(2workers) in case of 4 way pallets
  11. Change over time is 40 minute to 1.5 hours
  12. Speed variator to change nailing speed

CNC Pallet Nailing Machine For American Wood Pallet 1

Parameters of CNC Pallet Nailing Machine for American Wood Pallet

Model TY-201DD
Capacity 2 pallets/minute
Working mode Manual feeding/Auto Nailing/Auto stacking
Operating mode Industrial LCD computer
Operational mode Intelligent control system
Motor power servo motor
Max power 7.5 kW
Processing dimension (length, width, thickness) Customized
Feeding speed 80 m/min
Discharging speed 80 m/min
Speed of the nail gun 80 m/min
Number of the nail gun 9
Voltage 380 V, 50 Hz, 3P
Air compressor 100 L
Workers 2-3 workers
Nail size 32-90 mm
Overall dimensions 4540*5200*1985 mm
Weight 3500 kg



CNC Pallet Nailing Machine For American Wood Pallet 2

Characteristics of CNC Pallet Nailing Machine for American Wood Pallet

For quality and high volume production-grade #1 and #2, type lumber is recommended. Recycled lumber can be used if the material grade is consistent for pallet grade quality, however, production rates could change.



CNC pallet nailing machine for American wood pallet comes standard with an automated pallet stacker and right or left angle transfer system. Straight-line systems can be available upon request.



Please note that the customer needs to supply a proper air compressor needed to operate the pallet nailing machine. The air compressor is not included in the purchase price but can be added as an additional option. A recommendation is provided which meets the pallet nailing machine requirements.

CNC Pallet Nailing Machine For American Wood Pallet 3



CNC Pallet Nailing Machine For American Wood Pallet 4
