Automatic Cnc Corrugated Roofing Pallet Nailing Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 50 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-201DD

Detail Information

Name: CNC Pallet Nailing Machine Model: TY-201DD
Machine Capacity: 2 Pallets/minute Mode: Manual Feeding/Auto Nailing/Auto Stacking
Operating Mode: Industrial LCD Computer Operational Mode: Intelligent Control System
High Light:

automatic pallet nailing machine


automatic pallet machine


roofing pallet nailing machine

Product Description

CNC Pallet Nailing Machine

Introduction of CNC Pallet Nailing Machine

CNC pallet nailing machine adopts advanced CNC technology; it is suitable for CP1-CP9 pallets (all kinds of pallets, American pallets, and Euro pallets). For the same type of different size pallets, it needs to adjust the fixture; for different type pallets, it needs to change the fixture.

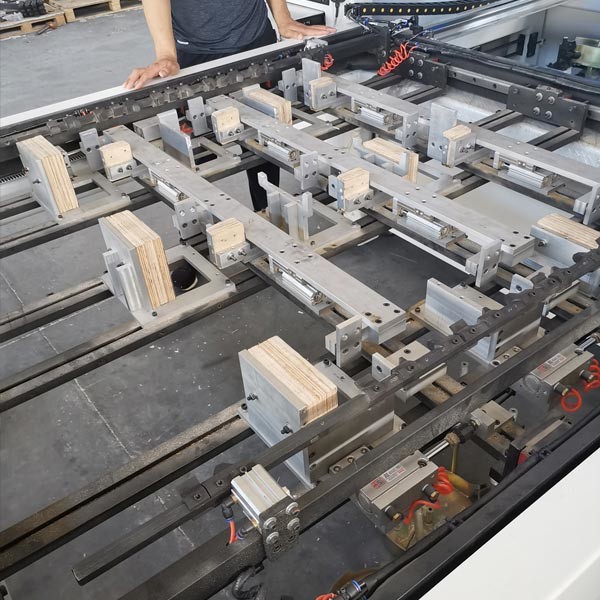

Automatic Cnc Corrugated Roofing Pallet Nailing Machine 0

CNC Pallet Naling Machine
Model TY-201DD
Capacity 2 pallets/minute
Working mode Manual feeding/Auto Nailing/Auto stacking
Operating mode Industrial LCD computer
Operational mode Intelligent control system
Motor power servo motor
Max power 7.5 kW
Processing dimension (length, width, thickness) Customized
Feeding speed 80 m/min
Voltage 380 V, 50 Hz, 3P
Air compressor 100 L
Workers needs 2-3 workers
Nail size 32-90 mm
Overall dimensions 4540*5200*1985 mm
Weight 3500 kg

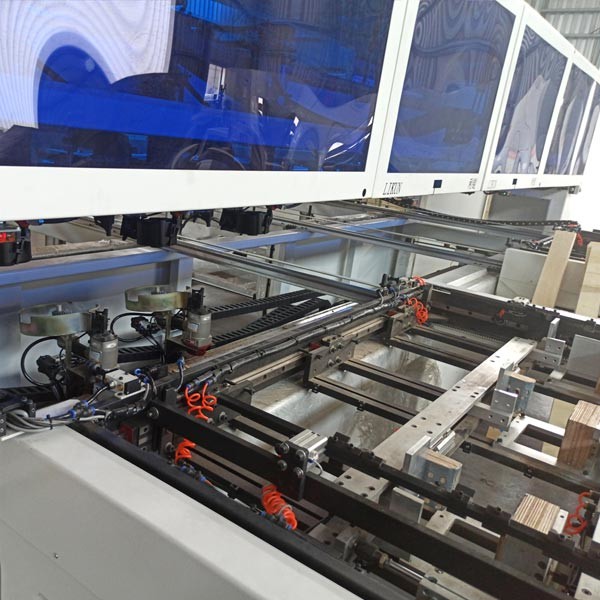

Automatic Cnc Corrugated Roofing Pallet Nailing Machine 1


Characteristics of CNC Pallet Nailing Machine


1. Adjustable Pallet Size

CNC pallet nailing machine is designed to produce American standard pallets, European standard pallets, and customized pallets.


2. Advanced Technology

CNC pallet nailing machine is equipped with the finished pallet stacking device, which has a high automation degree, smooth and tight process flow, and can be equipped with automatic pallet stacking machine and one-stop nailing and stacking production.


3. Profit-Building

CNC pallet nailing machine adopts the fully automatic program, and the operating system adopts imported PLC control, the touch screen is simple to operate, with convenient control, and accurate nailing position. Besides, CNC pallet nailing machine is with multiple processes are completed at one time, which greatly improves the work efficiency.


4. Cost-Effective

Automatic nailing and stacking are connected to the whole production line. After the nailing process is completed, the finished wooden pallets are automatically flipped onto the stacking platform and stacked neatly. So that it can achieve the effect of automatic receiving, which is convenient for forklift transportation; at the same time, saving the time of the nailing machine and the stacking operation. On account of the workpieces do not need to be stacked and rotated, and directly flipped into the lifting platform. It not only reduces the labor intensity, but also reduces time and space for handling.


5. More Safe

CNC pallet nailing machine has no specific requirements for the operator, and it is equipped with a photoelectric switch, safety light curtain to ensure safe production.

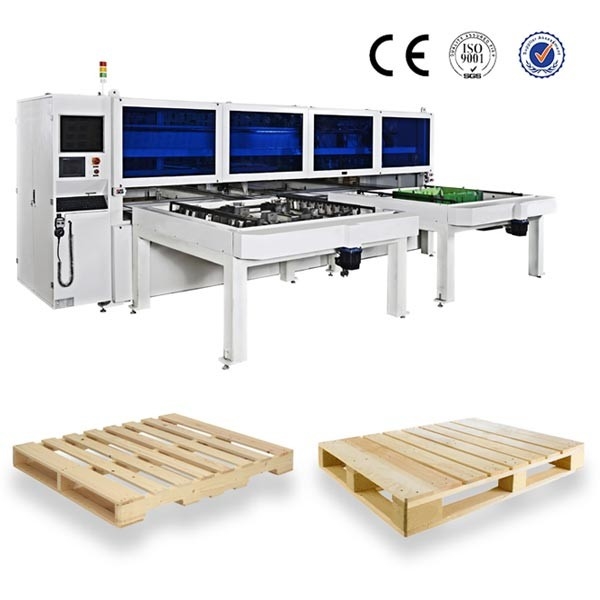

Automatic Cnc Corrugated Roofing Pallet Nailing Machine 2

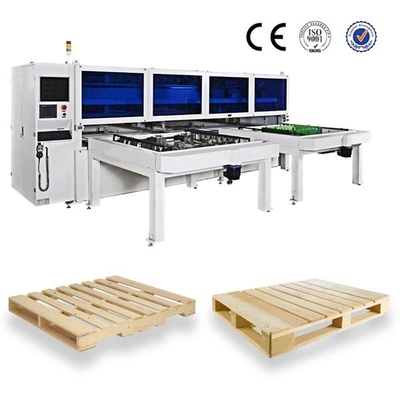

Automatic Cnc Corrugated Roofing Pallet Nailing Machine 3
