Max Cutting 6000 Mm CNC Wood Board Timber Milling Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYCS-6000

Detail Information

Product Name: Wood Timber Board Saw Machine Table Dimension: 7000*700*980 Mm
Max Sawing Length: 6000 Mm Max Sawing Width: 200 Mm
Max Sawing Height: 100-160 Mm Total Weight: 1100 Kg
High Light:

Board Timber Milling Machine

,

Wood Timber Milling Machine

,

7000mm Timber Sawing Machine

Product Description

Max Cutting Length 6000 Mm CNC Wood Timber Board Saw Machine



CNC wood timber board saw machine is a cutting machine used to wood boards,wood blocks, which is widely used in pallet production, furniture production, wood processing, and other wood processing enterprises.



CNC wood timber board saw machine automatically cutting accord to the cutting size, it also has a cutting program can edit and save cutting plans, which greatly increases the efficiency of the crushing process, saving labor, safety, and efficiency.



CNC wood timber board saw machine parameters



Model TYCS-4000 TYCS-6000
Dimension of working table 5000*700*980 mm 7000*700*980 mm
Max cutting length 4000 mm 6000 mm
Max cutting width 200 mm 200 mm
Blade diameter 500 mm 500 mm
Max cutting height 100-160 mm 100-160 mm
Main spindle rotating speed 3500/rpm 3500/rpm
Main motor power 7.5 kW 7.5 kW
Net weight 950 kg 1100 kg
Overall dimension 7300*1200*1500 mm 9300*1200*1500 mm

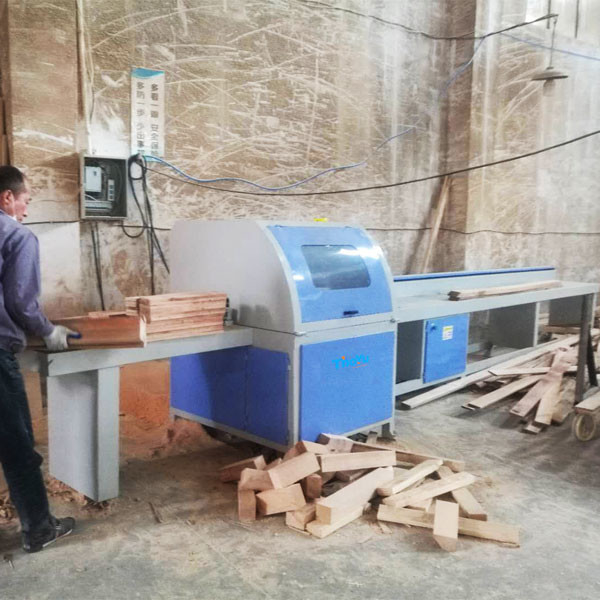

Max Cutting 6000 Mm CNC Wood Board Timber Milling Machine 0



CNC wood timber board saw machine working principle



first set the different cutting size in the touch screen, put the wood boards or other wood materials into the feed port, you can nest the materials to the limit height, then the saw will automatic cutting, last we need to take out the cut wood materials.



CNC wood timber board saw machine features

  1. Safety: The worker's finger does not touch the blade, reducing the worker's injury during the whole operation process.
  2. Quantity sawing, greatly improving production efficiency, Automatic feeding
  3. Free combination sawing dimensions to reduce production waste. It also can set 5 sets of sawing parameters at a time and automatic operation.
  4. High rate of output, reducing the amount of cutting losses.
  5. Pneumatic components and electrical parts are world-class brands for reliable and stable performance, so the machine has a low fault rate and less maintenance

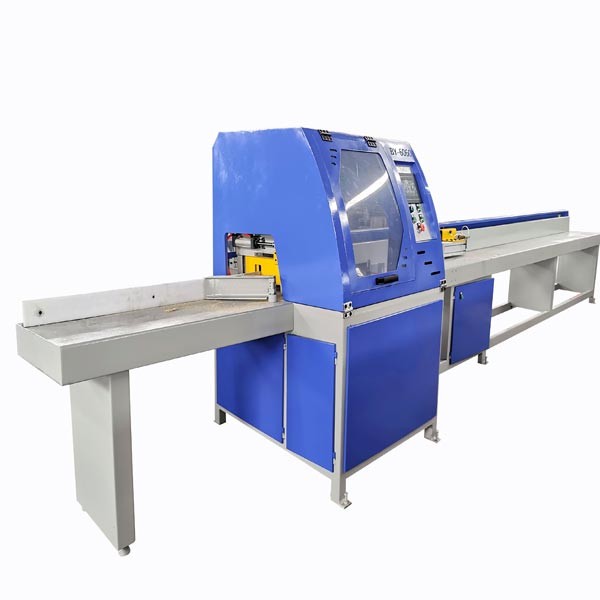

Max Cutting 6000 Mm CNC Wood Board Timber Milling Machine 1



Max Cutting 6000 Mm CNC Wood Board Timber Milling Machine 2
