India American Standard 48*48" Wood Pallet Nailing Line

Product Description

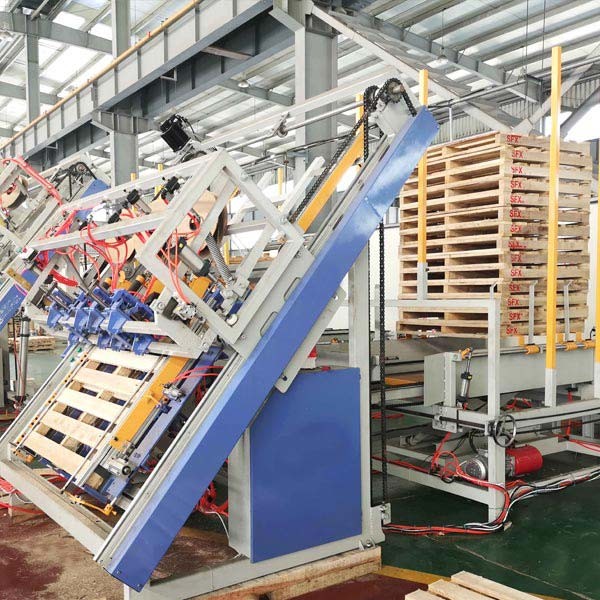

American Standard 48*48" Wood Pallet Nailing Machine

Introduction of India American Standard 48*48" Wood Pallet Nailing Line

India American Standard 48*48" Wood Pallet Nailing Line produced by ThoYu is an installation for nailing 2- and 4-way pallets and decks. Companies engaged in the production of these items can use it to produce pallets of various sizes without any additional equipment. This will enable them to satisfy the needs of most clients, using the functions of a single line. The operator uses India American Standard 48*48" Wood Pallet Nailing Line for different sizes of nails, which are suspended on balansers. The rollers make the India American Standard 48*48" Wood Pallet Nailing Line move freely along the rail mounting system. The construction of the table guarantees the ergonomy of work and comfort for the operator.

The standard of India American Standard 48*48" Wood Pallet Nailing Line comes with three stringers. If you manufacture pallets with four stringers, this additional option will include everything needed to build pallets with four stringers.

ThoYu constantly improves the technologies used in its production lines and can provide its customers with a flexible, highly efficient nailing system, that offers advantages in many different aspects. More specifically, the main benefits include:

1. High quality to price ratio
2. Possibility of producing different unfinished products simultaneously (on the same machine)
3. Possibility of customizing the line
4. Quick changeovers to other sizes

India American Standard 48*48" Wood Pallet Nailing Line produces large pallets and/or perimeter pallets and/or closed pallets. It is a solution for companies that want to produce large pallets in an industrial way. The dimensions range of the pallets is from a minimum of 800 mm long by 600 mm in width to a maximum of 2100 mm long to 2500 mm in width. India American Standard 48*48" Wood Pallet Nailing Line can be inserted into a processing line completed with other auxiliary machines suitable for the machining of the large pallets, such as automatic stackers.

Technical Parameters of India American Standard 48*48" Wood Pallet Nailing Line

Characteristics of India American Standard 48*48" Wood Pallet Nailing Line

1. Single Operator Machine
2. New and Reclaimed Lumber Can Be Used For Pallet Productions
3. 3 Stringer Standard
4. 60” Standard Stringer Length
5. Automated Pallet Turnover
6. Automated Stacking
7. Automatic Pneumatic Filter Drains
8. Compensating Bulk Nail Chucks
9. Programmable Controllers
10. Hydraulic Nailing
11. English Operator Screens

Features of India American Standard 48*48" Wood Pallet Nailing Line

1. India American Standard 48*48" Wood Pallet Nailing Line is a machine with an adjustable working top, the feature of clamping supporting elements (blocks or squared timber), and pneumatic pushback of the pallet.
2. India American Standard 48*48" Wood Pallet Nailing Line is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy modification of the pallet size within its length 800-1900 mm and width up to a maximum of 1300 mm. It needs only one operator to man the table, who is able to produce from 480 to 700 pallets during 8 hours of work (depending on the operator’s skills and organization of work).
3. The conventional storage can store 2 stacks of pallets and 16 pallets per stack. Automatic nailing and stacking of India American Standard 48*48" Wood Pallet Nailing Line are connected into the whole production line. After the nailing process is completed, the finished wooden pallets are automatically flipped onto the stacking platform by a flipped workpiece and stacked neatly.
4. So that it can achieve the effect of automatic receiving, which is convenient for forklift transportation; at the same time, saving the time of the nailing machine and the stacking operation. On account of the workpieces do not need to be stacked and rotated, and directly flipped into the lifting platform. It not only reduces the labor intensity, but also reduces time and space for handling.
5. India American Standard 48*48" Wood Pallet Nailing Line operates faster, costs less to maintain, and has less downtime than hydraulic machines.
6. India American Standard 48*48" Wood Pallet Nailing Line uses a PLC interface for operation feedback. It allows technicians to help diagnose problems over the phone.
