Euro EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 35 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1300MD

Detail Information

Name: EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine Pallet Size: 800*600 Mm
Pallet Type: EUR-Pallet Workers: 1-2
Application: Wood Block Pallet Production Applicable Industries: Manufacturing Block Pallet Plant
High Light:

pallet nailing machine price

,

pallet nailing machine cost

,

pallet nailing machine for sale

Product Description

EUR-Pallet 800*600 mm Wood Block Pallet Nailing Machine



Introduction of EUR-Pallet 800*600 mm Wood Block Pallet Nailing Machine



EUR-pallet 800*600 mm wood block pallet nailing machine is the flagship product in our line of pallet machines. And EUR-pallet 800*600 mm wood block pallet nailing machine has been manufactured since 1995 after evolving from the pallet nailing machines. EUR-pallet 800*600 mm wood block pallet nailing machine as an option may come with an adjustable pallet stacker and optional gravity or powered out-feed conveyor allowing the pallet to be stacked to the required height making it the most valuable machine for any pallet production.



With collated nail and pneumatic non-stop nailing, this two operator pallet system of EUR-pallet 800*600 mm wood block pallet nailing machine is capable of producing between 800-1,200 pallets/shift. EUR-pallet 800*600 mm wood block pallet nailing machine offers the best blend of production and affordability, making it the best-valued pallet machine on the market. With the ability to build pallets up to 60 x 60 inches on a standard European pallet and numerous add-on options, EUR-pallet 800*600 mm wood block pallet nailing machine will allow your business to thrive and keep you ahead of your competitors.



EUR-pallet 800*600 mm wood block pallet nailing machine an extremely flexible nailing machine, which is easy to manage, programmable for nailing legs on pallets up to a maximum length of mm. 2500. Equipped with loading storage for tables and belts to load blocks, EUR-pallet 800*600 mm wood block pallet nailing machine allows automatic nailing of legs on pallets, complete with an advanced, programmable management system capable of producing legs with 2- 3- 4 -5 blocks spaced as required.

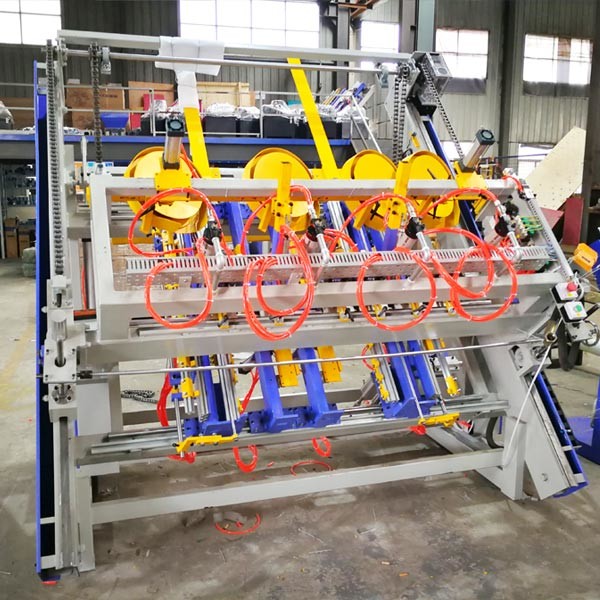

Euro EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine 0

Features of EUR-Pallet 800*600 mm Wood Block Pallet Nailing Machine

  1. Pallet type: European pallets, Stringer/American pallets, EUR-pallet 1000*1200 mm, EUR-pallet 1200*1000 mm, EUR-pallet 800*1200 mm, EUR-pallet 800*600 mm
  2. Tolerance: +/-3 mm
  3. Work bench and a highly innovative system of molds
  4. Boosted hydraulic system
  5. Single pneumatic tweezer locking system
  6. Brushless motor for millimetric nailing precision
  7. Touch-screen operator panel
  8. Automatically adjustable nailing cycle speed
  9. Required operators: 1-2



Euro EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine 1



Technical Parameters of EUR-Pallet 800*600 mm Wood Block Pallet Nailing Machine

Model TY-1300MD
Productivity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Function Making wood pallet
Air pressure 0.8 MPa
Voltage 380 V, three-phase
Working mode Artificial feeding/Auto nailing/Auto stacking
Operating mode Touch screen control
Operational mode Pneumatic operation
Nail gun speed 7 time/second
Nail apply Less than 80 mm
Application Wood pallet production line
Applicable industries Manufacturing plant



Euro EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine 2



Advantages of EUR-Pallet 800*600 mm Wood Block Pallet Nailing Machine

EUR-pallet 800*600 mm wood block pallet nailing machine is a high production pallet nailing machine that’s fabricated with quality steel and components. And it has proven itself to be one of the best machines in the industry. Current ThoYu’s customers can produce 1,200 pallets or more in an 8-hour shift with 3 operators. To eliminate builder fatigue the EUR-pallet 800*600 mm wood block pallet nailing machine operates with push-button controls allowing the pallet assembly to travel through the pneumatic nailing tools that fasten both the top & bottom deck boards’ simultaneously eliminating the need to turn over the pallet.

Euro EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine 3

EUR-pallet 800*600 mm wood block pallet nailing machine can also meet all pallet and packaging manufacturer needs by completing the basic machine with a vast range of accessories, including an innovative nailing system using bulk nails. The automatic stacking system of EUR-pallet 800*600 mm wood block pallet nailing machine can add transport system, then it can make the pallets stack more to save your space and labor cost. The pallet clamping system of EUR-pallet 800*600 mm wood block pallet nailing machine squarely secures the boards and precisely positions them for the nailing process.



Euro EUR-Pallet 800*600 Mm Wood Block Pallet Nailing Machine 4
