Quick Adjust CP Series Pallet Nailing Machine For Euro Pallets

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 35 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1300MD

Detail Information

Name: Quick-Adjust CP Series European Wooden Pallet Nailing Machine Application: Wood Pallet Production
Applicable Industries: Manufacturing Pallet Plant Color: As Your Need
Voltage: 380 V, Three-phase Motor Power: 1.5 KW Servo Motor
High Light:

adjust pallet nailing machine

,

euro pallets nailing machine

,

CP pallet nailing machine

Product Description

Quick-Adjust CP Series European Wooden Pallet Nailing Machine



Introduction of Quick-Adjust CP Series European Wooden Pallet Nailing Machine



The simplicity of our entire pallet equipment extends to Quick-Adjust CP Series European Wooden Pallet Nailing Machine. And Quick-Adjust CP Series European Wooden Pallet Nailing Machine is designed for higher production numbers without sacrificing product quality. Like the pallet nailing machine, Quick-Adjust CP Series European Wooden Pallet Nailing Machine is fully automated, which minimizes operator fatigue. In addition, it uses 110 volts and compressed air to make the pallet nailing process effortless. We listed informative specifications for Quick-Adjust CP Series European Wooden Pallet Nailing Machine we have for sale. If you have questions regarding any Quick-Adjust CP Series European Wooden Pallet Nailing Machine—whether any versions—reach out to us. We can set up orders and financing for all our customers.



Characteristics of Quick-Adjust CP Series European Wooden Pallet Nailing Machine

  1. New quick-adjust feature
  2. Pallet type: non-standard American/European pallet, Stringer/American pallets, customizable special-shaped pallets
  3. Suitable for wood pallet size: 1200*1000 mm/1200*800 mm/1100*1100mm/1300*1100 mm etc.
  4. Stringer height: 70-130 mm
  5. Stringer width: 30-50 mm
  6. Tolerance: +/-3 mm
  7. Foot & roof board thickness: 10-25 mm
  8. Easily adjustable pallet size
  9. Low maintenance
  10. Uses collated nails or staples
  11. Offers increased speed and productivity
  12. Accurate nail placement

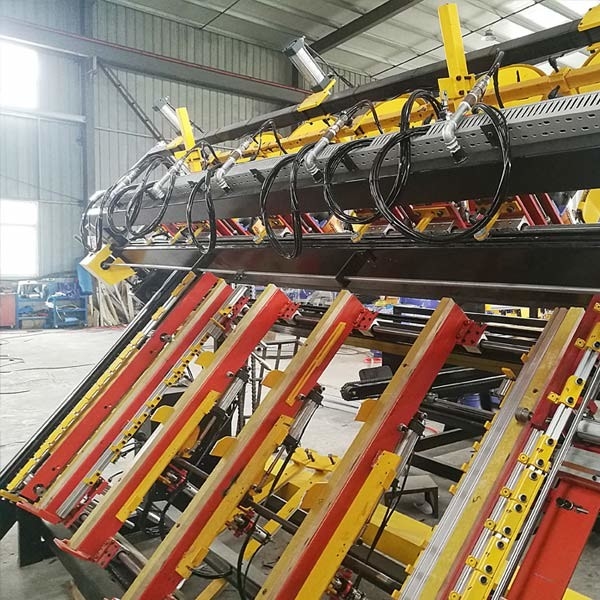

Quick Adjust CP Series Pallet Nailing Machine For Euro Pallets 0

Technical Parameters of Quick-Adjust CP Series European Wooden Pallet Nailing Machine

Model TY-1300MD
Productivity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Function Making wood pallet
Air pressure 0.8 MPa
Voltage 380 V, three-phase
Working mode Artificial feeding/Auto nailing/Auto stacking
Operating mode Touch screen control
Operational mode Pneumatic operation
Nail gun speed 7 time/second
Nail apply Less than 80 mm
Application Wood pallet production line
Applicable industries Manufacturing pallet plant

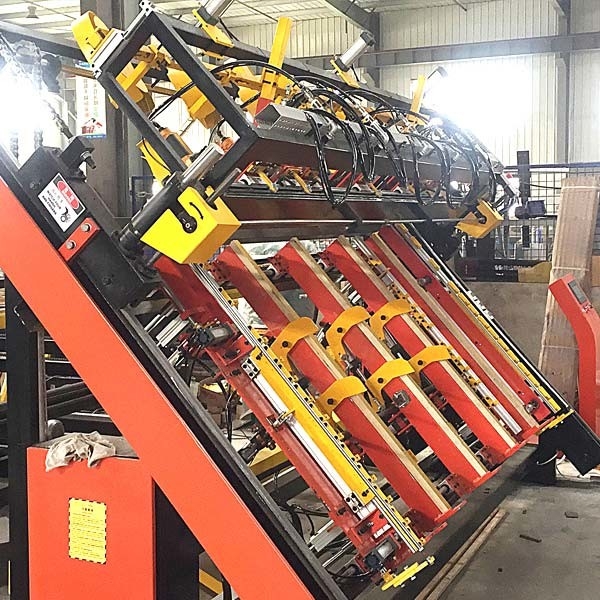

Quick Adjust CP Series Pallet Nailing Machine For Euro Pallets 1



Advantages of Quick-Adjust CP Series European Wooden Pallet Nailing Machine

Put the pallet vertical bottom panels on Quick-Adjust CP Series European Wooden Pallet Nailing Machine, and it will be clamp automatic. Then, put the horizontal panels, Quick-Adjust CP Series European Wooden Pallet Nailing Machine will nail them together automatically. Then the same way nail the top side.



Quick-Adjust CP Series European Wooden Pallet Nailing Machine is controlled by touch screen. You can choose different programs according to different wood boards and different size wood pallets. The automatic stacking system of Quick-Adjust CP Series European Wooden Pallet Nailing Machine can add transport system, then it can make the pallets stack more to save your space and labor cost.



Automatic stacking: Quick-Adjust CP Series European Wooden Pallet Nailing Machine will form a line with the nailing machine, after nailing, flip the wood pallet to the stacking platform. It will achieve the effect of automatic collect wood pallet and easy to transport. It saves labor and operation time.

Quick Adjust CP Series Pallet Nailing Machine For Euro Pallets 2

Operation program: Touch screen control, advanced programming, feeding mechanism, and nailing machine multi-axis linkage at the same time when working. Quick-Adjust CP Series European Wooden Pallet Nailing Machine achieves fast and efficient nailing work. One more thing, it could switch different program basis on different material plates to produce non-standard pallets.



Quick-Adjust CP Series European Wooden Pallet Nailing Machine is mainly used to nail the wood bars and block feet together, workers just wood bars on the support frame. Then pallet nailing machine for American non-standard pallet can nail automatic, and Quick-Adjust CP Series European Wooden Pallet Nailing Machine can lift the finished wood pallet to the stack machine, and the stack machine can stack the wood pallet layer by layer.



Quick-Adjust CP Series European Wooden Pallet Nailing Machine achieves fast and efficient nailing work. One more thing, it could switch different program basis on different material plates to produce non-standard pallets. Quick-Adjust CP Series European Wooden Pallet Nailing Machine mainly can apply for produce American stringer pallets and European block pallets. Quick-Adjust CP Series European Wooden Pallet Nailing Machine is equipped auto stacking platform, wood pallet lifting device, and flip picking device.

Quick Adjust CP Series Pallet Nailing Machine For Euro Pallets 3



Quick Adjust CP Series Pallet Nailing Machine For Euro Pallets 4
