CNC Wood Board Cutting Machine Wood Pallet Board String Saw

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 30 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYCS-4000

Detail Information

Product Name: CNC Wood Board Cutting Machine Wood Pallet Board String Saw Dimension Of Working Table: 500*70*98 Cm
Overall Dimension: 730*120*150 Cm Max Cutting Length: 4000 Mm
Max Cutting Width: 200 Mm Blade Diameter: 500 Mm
High Light:

Sliding Table Timber Sawmill

,

Two Blades Timber Sawmill

,

3500mm rail Timber Saw Mill

Product Description



 CNC Wood Board Cutting Machine Wood Pallet Board String Saw



Introduction to CNC Wood Board Cutting Machine

This CNC wood board cutting machine has a wide range of usage for the production of pallet panels, pallet blocks, furniture, solid wood floor, integrated timber, and so on. Therefore, enterprises in the manufacturing of wood furniture, wood floor, wood pallets, and wood packaging may need this machine to process wood boards.



Via a touch screen, it is very simple to set and adjust the cutting length according to your specific demands.



Technical Parameters of CNC Wood Board Cutting Machine

Model

TYCS-4000

Dimension of working table

5000*700*980 mm

Max cutting length

4000 mm

Max cutting width

200 mm

Blade diameter

500 mm

Max cutting height

100-160 mm

Main spindle rotating speed

3500/rpm

Main motor power

7.5 kW

Net weight

950 kg

Overall dimension

7300*1200*1500 mm

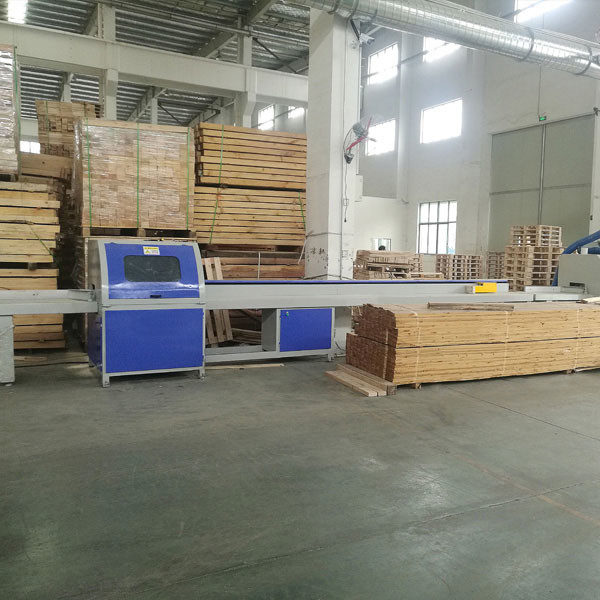

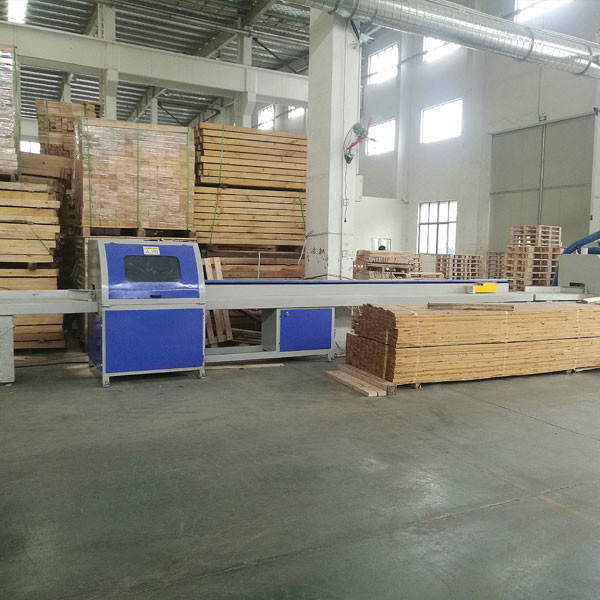

CNC Wood Board Cutting Machine Wood Pallet Board String Saw 0CNC Wood Board Cutting Machine Wood Pallet Board String Saw 1

CNC Wood Board Cutting Machine Wood Pallet Board String Saw 2

CNC Wood Board Cutting Machine Wood Pallet Board String Saw 3



Advantages of CNC Wood Board Cutting Machine

First, this cutting machine has a high production efficiency, and it can process 5 m3 of raw wood materials per hour.
Second, The protective shield is installed at the top to prevent wood sawdust which provides a better work environment

Third, this cutting machine is highly automated. Only one worker is needed to place the raw materials on the operation table. It can feed the materials to the blade automatically.

Forth, the sawing precision is high, and the cutting surface is smooth and flat.

Fifth, this machine is equipped with high-quality components to achieve stable performance and durability.
