Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets
Contact Person : Robin
Phone Number : +86-13733828553
WhatsApp : +8613733828553
Minimum Order Quantity : | 1 set | Price : | Negotiation |
---|---|---|---|
Packaging Details : | Strong wooden pallet for global shipping | Delivery Time : | 10-120 working days |
Payment Terms : | L/C, D/A, Western Union, MoneyGram | Supply Ability : | 30 sets per month |
Place of Origin: | China | Brand Name: | ThoYu |
---|---|---|---|
Certification: | CE | Model Number: | TYCS-6000 |
Detail Information |
|||
Product Name: | CNC Automatic Cross Cutting Wood Timber Saw | Working Table Dimension: | 7000*700*980 Mm |
---|---|---|---|
Max Cutting Length: | 6000 Mm | Max Cutting Width: | 200 Mm |
Diameter Of Blades: | 500 Mm | Motor Power: | 7.5 KW |
High Light: | Wood Blocks Lumber Bandsaw,Cross Cutting Lumber Bandsaw,Lumber Timber Sawmill Machine |
Product Description

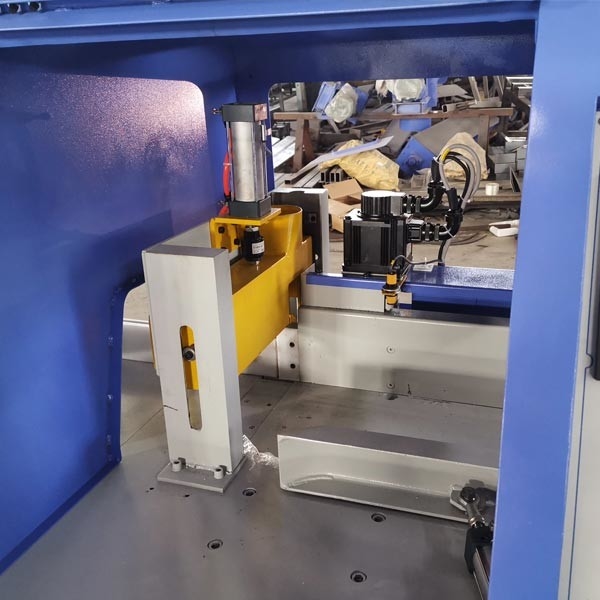

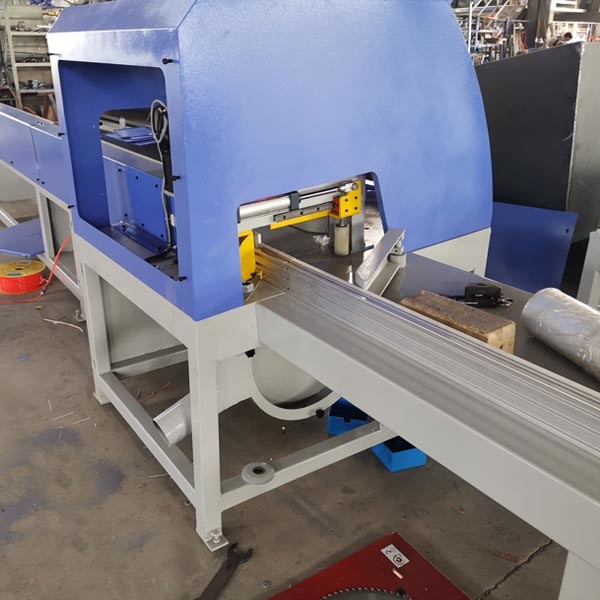

CNC Automatic Cross Cutting Wood Timber Saw For Wood Blocks
CNC automatic cross cutting wood timber saw is used for the raw material plate to remove the defects and specification material cutting length, are widely used in furniture, solid wood floor, integrated timber, such as doors and windows processing enterprises.
CNC automatic cross cutting wood timber saw parameter
Model | TYCS-4000 | TYCS-6000 |
Dimension of working table | 5000*700*980 mm | 7000*700*980 mm |
Max cutting length | 4000 mm | 6000 mm |
Max cutting width | 200 mm | 200 mm |
Blade diameter | 500 mm | 500 mm |
Max cutting height | 100-160 mm | 100-160 mm |
Main spindle rotating speed | 3500/rpm | 3500/rpm |
Main motor power | 7.5 kW | 7.5 kW |
Net weight | 950 kg | 1100 kg |
Overall dimension | 7300*1200*1500 mm | 9300*1200*1500 mm |
CNC automatic cross cutting wood timber saw features
