Automatic Stringer Pallet Making Equipment

Product Description

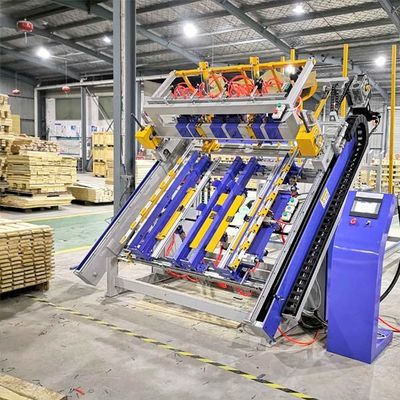

Automatic Wood Stringer Pallet Nailing Machine

Introduction of Automatic Wood Stringer Pallet Nailing Machine

Automatic wood stringer pallet nailing machine is mainly used to nail the wood bars and block feet together, workers just wood bars on the support frame. Then automatic wood stringer pallet nailing machine can nail automatic, and automatic wood stringer pallet nailing machine can lift the finished wood pallet to the stack machine, and the stack machine can stack the wood pallet layer by layer.

Technical Parameters of Automatic Wood Stringer Pallet Nailing Machine

How does automatic wood stringer pallet nailing machine work?

Put the pallet vertical bottom panels on automatic wood stringer pallet nailing machine, and it will be clamp automatic.

Then, put the horizontal panels, automatic wood stringer pallet nailing machine will nail them together automatically. Then the same way nail the top side.

The automatic stacking system of automatic wood stringer pallet nailing machine can add transport system, then it can make the pallets stack more to save your space and labor cost.

What's the operation system of automatic wood stringer pallet nailing machine?

Automatic wood stringer pallet nailing machine is controlled by a touch screen. You can choose different programs according to different wood boards and different size wood pallets.

What will happen when a pallet is nailed?

After one wood pallet is nailed, we have an automatic stacking machine that can stack the wood pallets tidy, then you can use your forklift to transport the wood pallets.

What makes automatic wood stringer pallet nailing machine stable and durable?

Thanks for the support of our raw material and spare parts supplier such as “Max" brand nail gun, "Delta" brand industrial control, brand electric and motor, etc., those make automatic wood stringer pallet nailing machine stable, and convenient maintenance.

Who we are?

We are ThoYu, the professional wood pallet nailing machine factory, and we produce pallet machines such as pallet notcher, pallet making machine, pallet block making machine, wood pallet block cutting saw, wood sawdust dryer, wood sawdust glue mixer, and so on.

Features of Automatic Wood Stringer Pallet Nailing Machine

Pallet type: Stringer/American pallets, customizable special-shaped pallets

Suitable for wood pallet size: 1200*1000mm/1200*800mm/1100*1100mm/1300*1100mm etc.

Stringer height: 70-130 mm

Stringer width: 30-50mm, +/-3mm tolerance

Foot & roof board thickness: 10-25 mm

1. Operation: Automatic wood stringer pallet nailing machine will auto clamping after the worker put the wood pallet bottom bean in the machine, then put wood pallet plate, after automatic nailing. When complete it, the work needs to flip the other side, put the plate in, then nailing it.
2. Operation program: Touch screen control, advanced programming, feeding mechanism, and nailing machine multi-axis linkage at the same time when working. Automatic wood stringer pallet nailing machine achieves fast and efficient nailing work. One more thing, it could switch different program basis on different material plates to produce nonstandard pallets.
3. Automatic stacking: Automatic wood stringer pallet nailing machine will form a line with nailing machine, after nailing, flip the wood pallet to stacking platform. It will achieve the effect of automatic collect wood pallet and easy to transport. It saves labor and operation time.
4. Option: basis on stacking platform, automatic wood stringer pallet nailing machine could increase transport platform, achieve stacking 4-5 stack.

Advantages of Automatic Wood Stringer Pallet Nailing Machine

1. Automatic wood stringer pallet nailing machine can produce Block pallet and Stringer pallet, Euro pallet, etc. the capacity is 100-200 pcs/h, need 2-4 workers to operate.
2. Automatic wood stringer pallet nailing machine mainly can apply to produce American stringer pallets and European block pallets.
3. Automatic wood stringer pallet nailing machine is equipped with auto stacking platform, wood pallet lifting device, and flip picking device. High Degree automation, smooth close process, complete nailing, and stacking in one time.
