Solid Wood Boards Wood Cutting Saw Machine For Stringer Pallets
Contact Person : Robin
Phone Number : +86-13733828553
WhatsApp : +8613733828553
Minimum Order Quantity : | 1 set | Price : | Negotiation |
---|---|---|---|
Packaging Details : | Strong wooden pallet for global shipping | Delivery Time : | 10-120 working days |
Payment Terms : | L/C, D/A, Western Union, MoneyGram | Supply Ability : | 20 sets per month |
Place of Origin: | China | Brand Name: | ThoYu |
---|---|---|---|
Certification: | CE | Model Number: | TYCS-4000 |
Detail Information |
|||
Product Name: | CNC Wood Timber Table Saw Machine | Dimension Of Working Table: | 5000*700*980 Mm |
---|---|---|---|
Max Cutting Length: | 4000 Mm | Max Cutting Width: | 200 Mm |
Blade Diameter: | 500 Mm | Main Motor Power: | 7.5 KW |
High Light: | 5000mm Horizontal Band Saw,CNC Horizontal Band Saw,Wood Processing Horizontal Band Saw |
Product Description

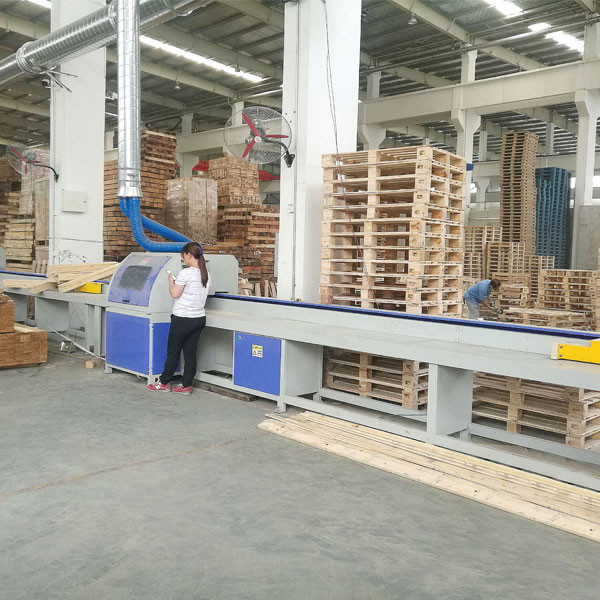

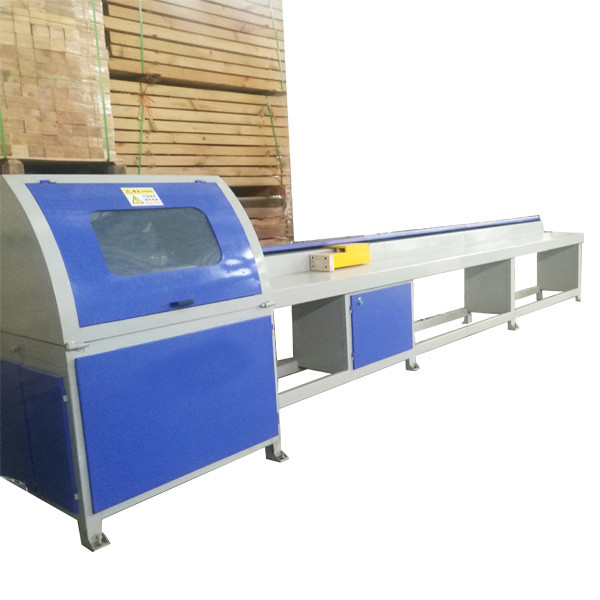

CNC Wood Timber Table Saw Machine For Cutting Wood Plank Block
CNC wood timber table saw machine is the computer program control wood cutting saw. And it is mainly used for the blanking process of pallet panels, pallet blocks, and traditional wooden boxes. Besides, CNC wood timber saw machine is also be used for the production of furniture components.
CNC wood timber table saw machine automatically cutting accord to the cutting size, it also has cutting program can edit and save cutting plans, which greatly increases the efficiency of the crushing process, saving labor, safety, and efficiency.
Model | TYCS-4000 | TYCS-6000 |
Dimension of working table | 5000*700*980 mm | 7000*700*980 mm |
Max cutting length | 4000 mm | 6000 mm |
Max cutting width | 200 mm | 200 mm |
Blade diameter | 500 mm | 500 mm |
Max cutting height | 100-160 mm | 100-160 mm |
Main spindle rotating speed | 3500/rpm | 3500/rpm |
Main motor power | 7.5 kW | 7.5 kW |
Net weight | 950 kg | 1100 kg |
Overall dimension | 7300*1200*1500 mm | 9300*1200*1500 mm |
CNC wood timber table saw machine features
