Quick Wood Pallet Maker Nailing Machine For Pallets

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-60 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-TPJ-1300MD

Detail Information

Product Name: Quick Wood Pallet Maker Nailing Machine For Pallets Motor Power: 1.5 KW
Air Pressure: 0.8 MPa Voltage: Customized
Capacity: 1-2 Pallets/minute Weight: 2000 Kg
High Light:

wood pallet maker

,

nailing machine for pallets

,

quick pallet maker

Product Description

Quick Wood Pallet Maker Nailing Machine For Pallets

Introduction of Quick Wood Pallet Maker Nailing Machine For Pallets

Quick Wood Pallet Maker Nailing Machine For Pallets is designed to produce American standard pallets, European standard pallets, and customized pallets.

Quick Wood Pallet Maker Nailing Machine For Pallets is equipped with the finished pallet reversing and picking device, which has a high automation degree, smooth and tight process flow, and also can be equipped with automatic pallet stacking machine and one-stop nailing and stacking production.

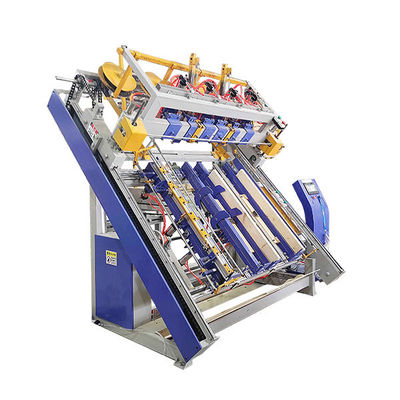

Quick Wood Pallet Maker Nailing Machine For Pallets 0

















































Technical Parameters of Quick Wood Pallet Maker Nailing Machine For Pallets

Model TY-TPJ-1300MD
Capacity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Air pressure 0.8 MPa
Voltage Customized service is available.
Weight 2000 kg
Overall dimensions The host 2000*2800*2600 mm
Stacking 2600*1900*1600 mm

Auto pallet nailing machine adopts fully automatic program, and the operating system adopts imported PLC control, the touch screen is simple to operate, with convenient control, and accurate nailing position. Compared with the domestic conventional production process, auto pallet nailing machine is with multiple processes are completed at one time, which greatly improves the work efficiency.

Quick Wood Pallet Maker Nailing Machine For Pallets 1

Characteristics of Quick Wood Pallet Maker Nailing Machine For Pallets

  1. User-friendly operation by means of a touch terminal guiding the user.
  2. Increased productivity (1 or 3 pallets per minute depending on machine configuration).
  3. Production change in a matter of seconds.
  4. Quick Wood Pallet Maker Nailing Machine For Pallets is an adjustable, semiautomatic pallet nailing table for pallets of different sizes.
  5. Quick Wood Pallet Maker Nailing Machine For Pallets’ ergonomic construction allows fast and easy modification of the pallet size. The conventional storage can store 2 stacks of pallets and 16 pallets per stack.
  6. Possibility of making 2 pallets of the same size during the same operation of Quick Wood Pallet Maker Nailing Machine For Pallets.
  7. Quick Wood Pallet Maker Nailing Machine For Pallets runs with high precision and small error, and can work continuously for ten thousand meters without error, which ensures the high consistency of the working dimension.
  8. These features of Quick Wood Pallet Maker Nailing Machine For Pallets will allow the operator to use varying degrees of width, thickness, and conditions of material without adjustment or set-up.

Quick Wood Pallet Maker Nailing Machine For Pallets 2



Quick Wood Pallet Maker Nailing Machine For Pallets 3
