Automatic Wood Pallet Block Cutters

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TY-1250DP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-30 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 60 sets per month

Detail Information

Product Name: Pallet Block Cutter Machine Precision: 0.5 Mm
Max Cut Width: 200 Mm Max Cut Thickness: 110 Mm
Max Cut Length: 1250 Mm Motor Power: 22+1.1 KW
High Light:

Wood pallet block cutters


Automatic Pallet Block Cutters


ThoYu Pallet Block Cutters

Product Description

Automatic Multiple Blade Wood Block Pallet Block Cutter Machine

Wood pallet block cutter machine (multiple-blade model), suitable for processing shavings pallet blocks, solid woods, and multi-layer woods. The machine is stable, efficient, safe, and simple, and so on. And it is also dominant in wood pallet processing equipment.

This wood pallet block cutter machine is with simple operation, no error, no-fault, and easy to operate, any workers can be directly on the job, after the factory 3-5 hours of training. The dust of the machine is less when cutting the pallet blocks, the dust-collecting effect is much better than the pallet cutting machine.

Chain plate/chain feeding, and navigation sheet discharge, is suitable for processing shorter wood. The feeding chain penetrates the machine frame, and the whole chain feeding can cut the shorter wooden side and the sawing is smoother. This device can make it more economical than other types of multi-blade saws.

Pallet block cutter application

This machine is used to cut wood blocks, which usually used as the feet in the wood pallet.

Pallet block cutter technical parameters

Model TY-1250DP
Overall dimension 1960*1560*1360 mm
Precision 0.5 mm
Max cut width 200 mm
Max cut thickness 110 mm
Max cut length 1250 mm
Motor power 22 kW+1.1 kW
Voltage Customized service is available.
Net weight 1100 kg

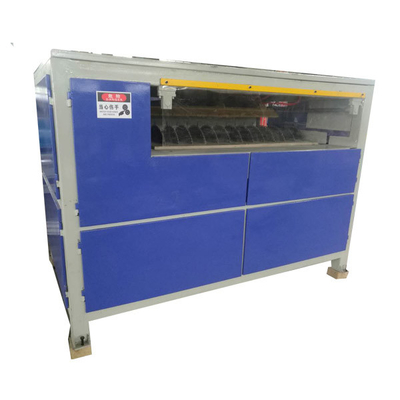

Automatic Wood Pallet Block Cutters 0

Wood pallet block cutter machine features

  1. High production efficiency, with cutting 5 m3 in one hour.
  2. The bullet-proof chain is installed at the inlet to prevent the wood chips from rebounding. And the slope is installed at the discharge port, and the discharge is smooth, preventing the wood from flying out.
  3. There is a safety shield on the top of pallet block cutting machine (multiple-blade model), so it is safer to place the wood.
  4. The whole process is automatic feeding, the upper and lower shaft structure, multi-piece sawing, continuous discharging, so the efficiency is increased by 5-6 times, and the sawing road is thinner than other machines.
  5. Excellent quality motor for long service life.
  6. The multi-blade sawing process is stable, the sawing precision is high, the surface is smooth and flat, no need to re-process, and reducing wood waste.

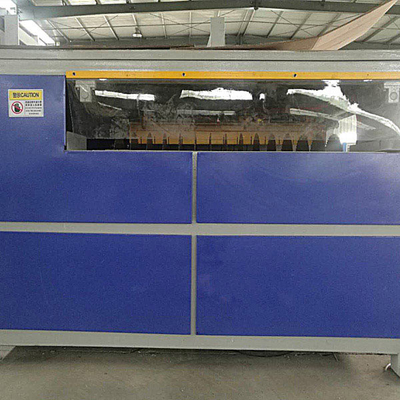

Automatic Wood Pallet Block Cutters 1

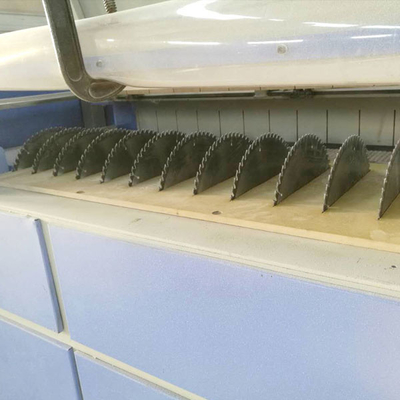

Automatic Wood Pallet Block Cutters 2
