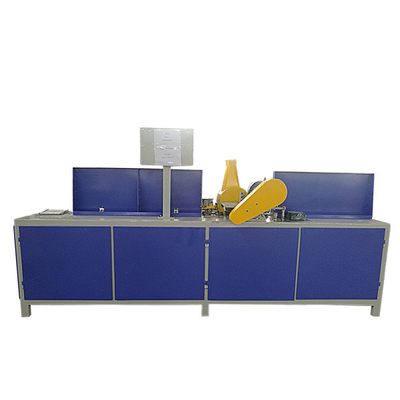

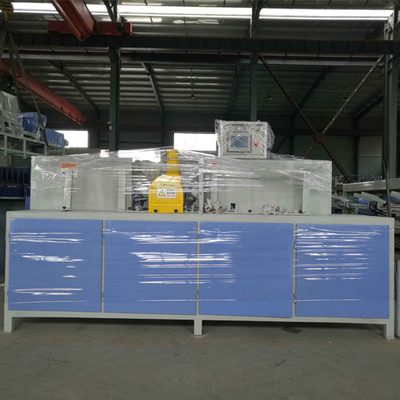

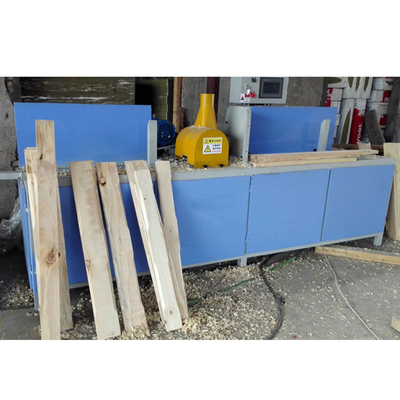

Deck Board Pallet Chamfering Machine

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYDB-1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-30 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 50 sets per month

Detail Information

Product Name: Wood Pallet Chamfer Machine Chamfer Length: 1300 Mm
Chamfer Width: 90-130 Mm Chamfer Thickness: 30-40 Mm
Operator: 1 Worker Capacity: 500-700 Pieces/hour
High Light:

Board Pallet Chamfering Machine


Deck Pallet Chamfering Machine


Pallet Chamfering Machine

Product Description

Wood Deck Board Pallet Chamfer Machine

Wood pallet chamfer machine is used to chamfering the bottom stringer with a small edge and make the lift fork that can hold the wood pallet easily.

When the equipment is running, the worker puts the whole piece of wood to be processed on the operation table. When placing the wood, it is necessary to pay attention to placing the wood in the feeding trough of the machine operation table to prevent the wood material from shifting during the movement. The wood is pushed forward at a constant speed to the cutting blade as the chain runs, and the blade rotates the milling edge. The wood from the side of the milling is pushed along with the running chain to the finished product discharge chute, and the milling process is completed.

Pallet chamfer machine parameters

Power 4.5 kW
Capacity 500-700 pieces/hour
Chamfer length 1300 mm
Chamfer width 90-130 mm
Chamfer thickness 30-40 mm
Blade material alloy
Working mode continuous automatic feeding and discharging, 2 side at the same time out
Weight 350 kg (using stepper motor control system)
Dimensions 3000*700*1300 mm

Deck Board Pallet Chamfering Machine 0

  • Pallet chamfer function: the wooden pallet bottom plate automatically pours out the corners, which is convenient to push the cart, the forklift enters and leaves.
  • Easy Operation: 1 worker.
  • Capacity: 500-700 pieces/hour
  • Wood board specification: 80-145 mm
  • Working mode: automatic feeding

Deck Board Pallet Chamfering Machine 1


Deck Board Pallet Chamfering Machine 2
