Stringer Wood Pallet Bottom Board Chamfer Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-30 work days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 40 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYKM-400

Detail Information

Name: Wood Pallet Chamfer Machine Easy Operation: 1 Worker
Wood Board Specification: 80-145 Mm Chamfer Width:: 90-130 Mm
Working Mode: Continuous Automatic Feeding And Discharging Speed Control: Changeable
High Light:

pallet board chamfer machine


stringer pallet chamfer


wood pallet chamfer machine

Product Description

Wood Pallet Chamfer Machine


Introduction of Wood Pallet Chamfer Machine


Wood pallet chamfer machine manufactured by ThoYu is designed to precision chamfer board for banding straps. Equipped with split indexable data chipping blades. Frame constructed of heavy gauge square and rectangle tubing.

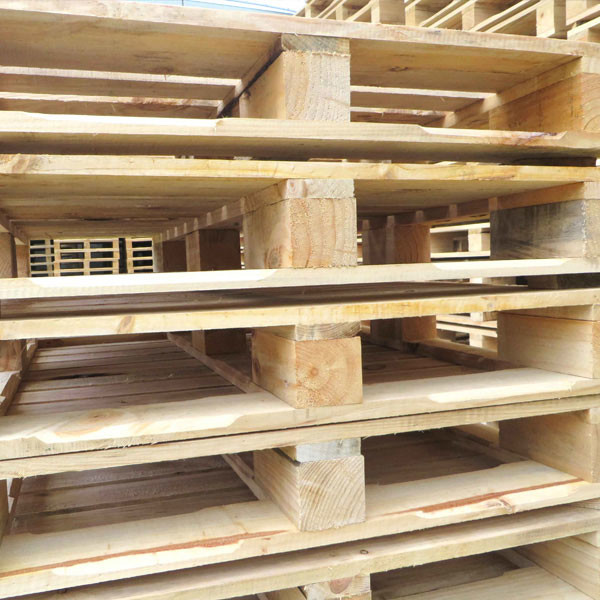

Wood pallet type:

1. Stringer pallet

2. Block pallet

3. Other special pallets

4. Euro pallet

5. American pallet

6. Other pallets.


Technical Specification of Wood Pallet Chamfer Machine

Model TYKM-400
Overall dimension 3000*700*1300 mm
PLC control Adjustable size
Touch screen Easy to adjust
Speed control Changeable
Max speed 8000 rpm
Capacity 700 pieces/hour
Main motor power 4.5 kW
Voltage 380 V, 50 Hz, 3P
Net weight 350 kg


Features of Wood Pallet Chamfer Machine

  1. Easy Operation: 1 worker.
  2. Wood board specification: 80-145 mm
  3. Working mode: automatic feeding
  4. Chamfer length range: 1300 mm, thickness 30-40 mm
  5. Chamfer width: 90-130 mm
  6. Working mode: continuous automatic feeding and discharging, 2 sides at the same time out.
  7. Dual heads cut, wide chamfer at a rate up to 6300 boards per hour.
  8. Simple machine maintenance—material hold downs lift off for ease of cleaning.
  9. Dual side 10” diameter vacuum connection allows for swift evacuation of wood particles.
  10. Programmable on/off control for upstream equipment promotes safe operation.

Stringer Wood Pallet Bottom Board Chamfer Machine 0



Characteristics of Wood Pallet Chamfer Machine

  1. Wood pallet chamfer machine is perfect for your chamfering requirements. And wood pallet chamfer machine requires only one person to operate, and with the optional chamfering attachment, it can also be used as a chamfering machine.
  2. Wood pallet chamfer machine adopts a continuous feed, work platform automatic discharge mode, you can also open a dual-slot, trench smooth without rough parts, standard size, high precision, adjustable slot depth specifications.
  3. Wood pallet chamfer machine is high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanically, completely replace the previous trough excavation work manually.
  4. Wood pallet chamfer machine has minimal set-up time and four second cycle times. The operator places two to three stringers at a time in the stringer magazine. The stringers are positioned to the left or right end stop. The two palm buttons are then pressed and the first chamfer pass is made. The material is then slid over to the opposite stop and the process is repeated to make the second chamfer. Stack the finished product.
  5. Reliable security guards, when workers operate completely without touching knives, quiet high;
  6. Wood pallet chamfer machine is with product design, design ideas unique in the country.
  7. Customizable to your operational needs. ThoYu manufactures many different standard and custom machine variations. We can provide the best possible machine for your application. We strive to build our equipment sturdy enough for the toughest environment of any pallet production location.

Stringer Wood Pallet Bottom Board Chamfer Machine 1

Stringer Wood Pallet Bottom Board Chamfer Machine 2
