France Sawdust Wood Block Press Machine For Euro Pallet

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 35 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYS, TYD, TYT

Detail Information

Item: France Sawdust Wood Pallet Press Machine For Euro Block Pallet Material: Sawdust
Power: 16.86-30.26 KW Glue Consumption: 90-100 Kg/m3
Block Density: 550-600 Kg/m3 Color: Blue
Keywords: Sawdust Wood Block Press Machine, Sawdust Block Press Machine, France Pallet Machine
High Light:

france pallet machine

,

sawdust wood block press machine

,

sawdust block press machine

Product Description

France Sawdust Wood Block Press Machine For Euro Pallet



Introduction of France Sawdust Wood Block Press Machine For Euro Pallet

France Sawdust Wood Block Press Machine For Euro Pallet is specially designed for pressing sawdust, wood shavings, and other wood scraps into pallet blocks by heating and extruding system.

Raw material application: Small logs, tree branches, sawdust, wood chips, timber residue, log off-cuts, plywood trimmings, old board, and so on.

Pallet block density: 550-650 kg/m³

Pallet block features: Free fumigation, water-proof, high nail holding ability, formaldehyde release conform to the national standard, and eco-friendly.

NOTE: We supply both France Sawdust Wood Block Press Machine For Euro Pallet and the complete sawdust pallet press production line.

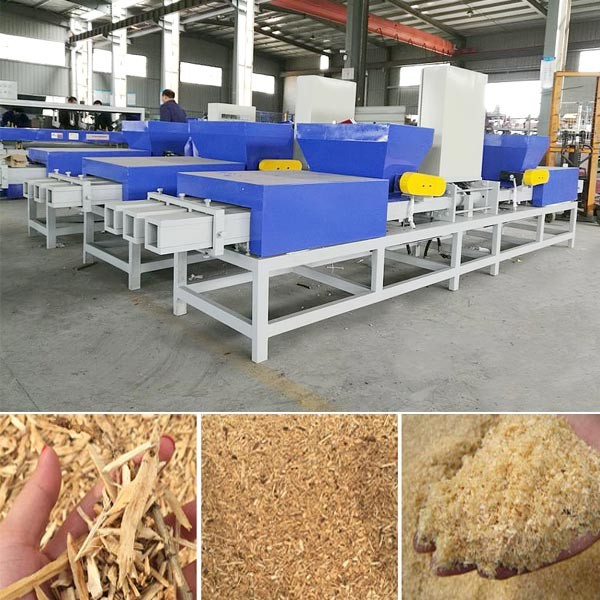

France Sawdust Wood Block Press Machine For Euro Pallet 0

Technical Parameters of France Sawdust Wood Block Press Machine For Euro Pallet

Model TYS TYD TYT
Size (mm) 4800*780*1320 4800*780*1320 4800*900*1420
Length and width of block (mm) 75-145
Power (kW) 16.86 22.26 30.26
Density (kg/m3) 550-600
Glue consumption (kg/m3) 90-100
Production efficiency (m3/24h) 2-5 3-6 5-9
Dimension with saw (mm) 8000*600*1500 8000*700*1500 8000*700*1500
Weight (kg) 1000 1500 2000
Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required.

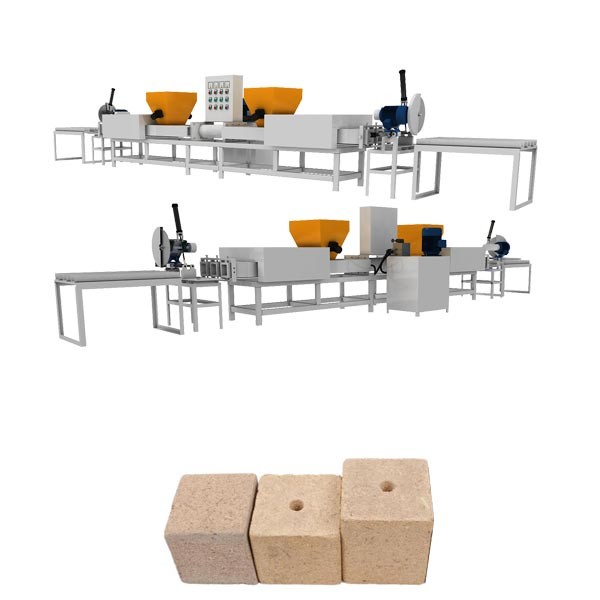

France Sawdust Wood Block Press Machine For Euro Pallet 1

Features of France Sawdust Wood Block Press Machine For Euro Pallet:

France Sawdust Wood Block Press Machine For Euro Pallet is crucial in the pallet block/feet/leg manufacturing. The advanced horizontal hydraulic system pressure can reach up to 10MPA within a short time to press the feedstock tightly to get a qualified block. ThoYu can provide the single sawdust pallet block making machine or the complete pallet block production line for different scale production. Generally, the whole production line mainly consists of wood crusher, wood dryer, glue blender, pallet block press machine, and pallet block cutting machine, each section will make a big difference to determine the final pallet block quality.

1. Crushing section: Wood crusher will crush all the wood materials into the proper size.

2. Drying section: Material moisture content will be reduced at 8-12%, we have an airflow dryer or rotary dryer as an option.

3. Glue blending section: Special designed mixing device can get the uniform blended material.

4. Hot pressing section: The blended material will be fed into the feeding port of the press machine and get the extruded blocks with high-strength. There is no limit on the block length, but generally, it will be cut into 1 meter or 1.2 meters in this stop.

5. Block cutting section: Cut the 1 m/1.2 m pallet blocks into the required size by cutting machine or by hand.

France Sawdust Wood Block Press Machine For Euro Pallet is easy to operate, and 1 person can look after 3 working machines. Just set the parameters of France Sawdust Wood Block Press Machine For Euro Pallet and feeding raw mixed materials, then waiting for the out pallet blocks.

The final wood pallet block can be used as pallet and foot pier replaced log, also can be used in the export package. France Sawdust Wood Block Press Machine For Euro Pallet could recycle the wood waste efficiently, and it is changing the waste wood into the pallet block, so it helps to protect the environment. The final products of France Sawdust Wood Block Press Machine For Euro Pallet are pressed pallet blocks, and they have a smooth and beautiful surface with a large carrying capacity. They are strong, durable, and away from worms.

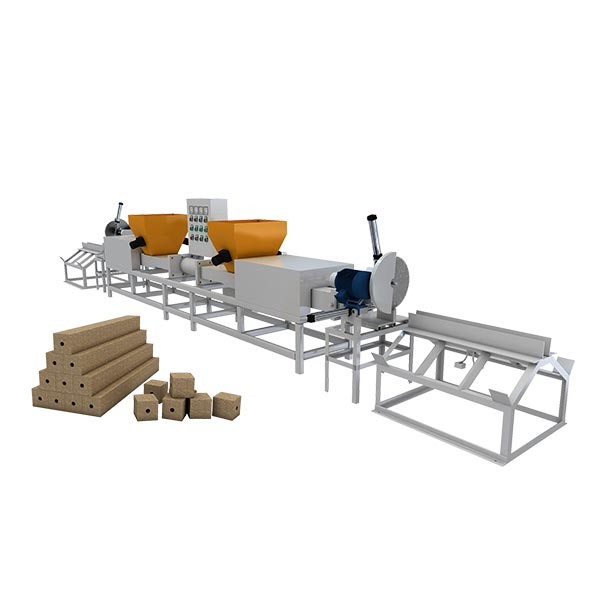

France Sawdust Wood Block Press Machine For Euro Pallet 2

Features of Final Sawdust Pallet Blocks

Free fumigation and free quarantine.

The size of the final sawdust pallet block can be customized, and the size ranges from 75*75-145*145 mm, and 90*90 mm, 80*90 mm, and 100*100 mm are the common styles.

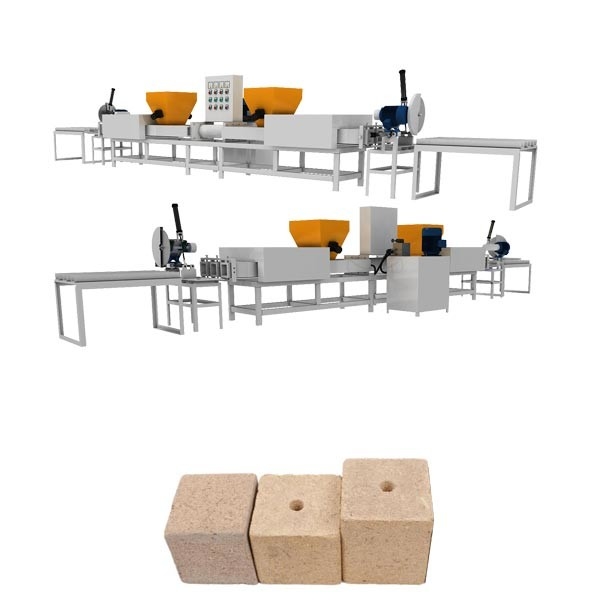

France Sawdust Wood Block Press Machine For Euro Pallet 3
