Hot Press Wood Pallet Feet Sawdust Block Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 40-70 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 15 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYD

Detail Information

Name: Sawdust Pallet Feet Machine Automatic: Semi Automatic
Machine Power: 22.26 Raw Material: Wood Chips
Machine Dimension With Saw (mm): 8000*700*1500 Production Efficiency (m3/24h): 3-6
High Light:

wood pallet feet machine

,

sawdust pallet feet machine

,

hot press sawdust block machine

Product Description

Hot Press Wood Pallet Feet Sawdust Block Machine



Sawdust pallet feet machine is used to make blocks/feet/logs for wooden pallets, which can be used in the packing industry and logistics(transportation).



Raw Material: Wood Sawdust, wood shavings, wood chips, waste wood, used pallet, and so on, also the glue (Urea formaldehyde resin& UF resin).



Equipment disposition: Generally four hot pressing are a production line, must provide the dryer, the gluing machine, grinder each. (dryer, gluing machine, crusher, and so on supporting facility customer buys in addition.



Personnel disposition: Production personnel 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).



Production cycle: After confirmation order form and payment advanced payment, 40 super craftsmen ship factory delivery. Our factory is responsible for the technical training and provides the consummation the post-sale service.



Parameters of Sawdust Pallet feet machine

Model TYS TYD TYT
Size (mm) 4800*780*1320 4800*780*1320 4800*900*1420
Length and width of block (mm) 75-145
Power (kW) 16.86 22.26 30.26
Density (kg/m3) 550-600
Production efficiency (m3/24h) 2-5 3-6 5-9
Dimension with saw (mm) 8000*600*1500 8000*700*1500 8000*700*1500
Weight (kg) 1000 1500 2000
Customized service is available.



Hot Press Wood Pallet Feet Sawdust Block Machine 0



Crusher or Wood shaving machine (it is used for the raw material with much large size)

Please use wood shavings and sawdust to make pallets. If the raw material is not very big, it is unnecessary to crush.



Dryer machine

Drying the raw material to keep the 10%-15% moisture.



Gluing machine

Mixing the material together tighter for the next step.

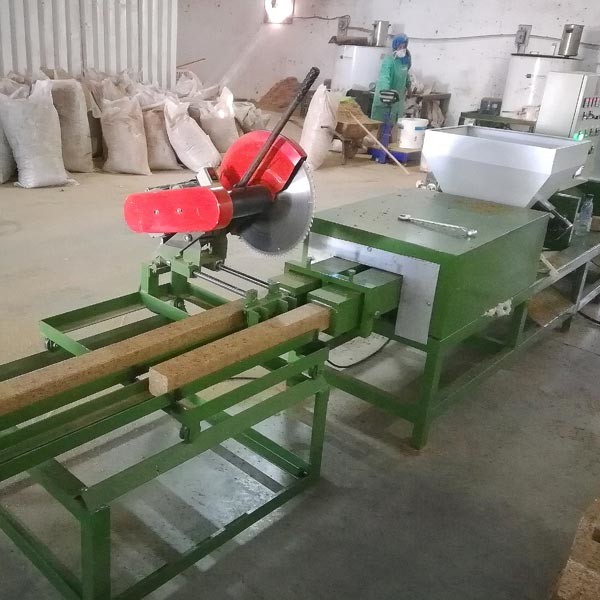

Sawdust pallet feet machine (the main machine of the wood pallet block production line)

Three types of models of the hot press machine



The biggest characteristics will create a dust-free workshop after our improvement.



Four heads of Sawdust pallet feet machine



Hot Press Wood Pallet Feet Sawdust Block Machine 1



Six heads of  Sawdust pallet feet machine ( new released model)



Hot Press Wood Pallet Feet Sawdust Block Machine 2



Hot Press Wood Pallet Feet Sawdust Block Machine 3
