Plastic Pallet Machine Moulded Plastic Pallet Production Line

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TY-1000, TY-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 30-45 work days
Payment Terms: L/C D/A Western Union MoneyGram
Supply Ability: 20 sets per month

Detail Information

Name: Plastic Pallet Machine Moulded Plastic Pallet Production Line Output: 180 Pieces/day
Power: 18.5 KW Hydraulic Cylinder Quantity: 4 Pieces
Pressure: 0-1200 Tons (adjustable) Weight: 22 Tons
Keywords: Plastic Pallet Machine, Plastic Pallet Production Line, Moulded Plastic Pallet Machine
High Light:

Moulded Plastic Pallet Making Machine

,

18.5kW Plastic Pallet Making Machinery

,

Molded Plastic Pallet Making Machine

Product Description

Plastic Pallet Machine Moulded Plastic Pallet Production Line



Introduction of Plastic Pallet Machine Moulded Plastic Pallet Production Line

Plastic pallet machine moulded plastic pallet production line is designed to produce moulded plastic pallets, with high pressing technology process. ThoYu provides the full range of service including the design, manufacturing, and installation of plastic pallet machine moulded plastic pallet production line. We design and manufacture equipment for the new type of plastic pallet machine moulded plastic pallet production line.



Technology Process of Plastic Pallet Machine Moulded Plastic Pallet Production Line

There are two main workshop sections: raw material preparation and pallet pressing section.

1. Raw material preparation

Raw materials for plastic pallet machine moulded plastic pallet production line are very wide. And they are spreading anywhere all over the world.

They are waste plastic, HDPE scrap, PET cold wash piece, PE scrap, PP scrap, PVC wire skin, woven, glass fibre yarn waste, circuit board, battery jar ABS particle, mineral water bottles, plastic bottles, and so on.

2. Pallet pressing section

The pressing section is the core part of the plastic pallet machine moulded plastic pallet production line, and the machine is moulded plastic pallet machine.

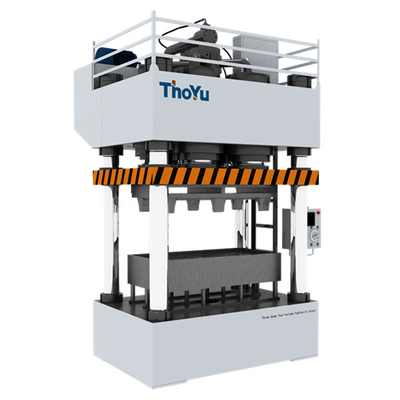

Characteristics of Plastic Pallet Machine Moulded Plastic Pallet Production Line

  1. ThoYu design and manufacture plastic pallet making machine independently.
  2. It presses one time under high temperature and high pressure to produce plastic pallet.
  3. The frame of the machine adopts a 3-beam 4-column structure, with high strength, rigidity and precision.
  4. The mould is engraved by a whole high strength steel board with the resistance of high temperature and high pressure.
  5. The control system adopts a PLC system, which completes the whole producing process.
  6. Production counting, which can auto-stop or alarm in advance.
  7. The hydraulic transmission is adjustable, and accurate and steady running.
  8. The hydraulic columns have nice characteristics with nice rigidity, wear-resistance and exact guiding performance.
  9. All the parts are modules design, which is easy to install and maintain.

Plastic Pallet Machine Moulded Plastic Pallet Production Line 0

Advantages of Plastic Pallet Machine Moulded Plastic Pallet Production Line

1. Advanced technology.

We update the traditional plastic pallet making machine and independently produce the moulded plastic pallet machine. Plastic pallet machine moulded plastic pallet production line adopts new technology to reduce the cost of raw materials.

2. Environmental protection.

Plastic pallet machine moulded plastic pallet production line is the ideal line to recycle waste plastic. Plastic pallet machine moulded plastic pallet production line is changing the waste plastic into the plastic pallet, so it helps to protect the environment.

3. Low production cost

The price of the raw materials is less than 50%, so the production cost is also lower than 50%. In addition, the technology process of Plastic pallet machine moulded plastic pallet production line is easier and easy to operate.

4. Good final pallet.

The quality of the final plastic pallets is as good as the traditional ones. Meanwhile, the final pallets are a one-piece design, which is saving space 60% than the traditional ones.

Plastic Pallet Machine Moulded Plastic Pallet Production Line 1

Technology Parameters of Plastic Pallet Machine Moulded Plastic Pallet Production Line:

Model TY-1000 TY-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pieces/day (24 hours) 240 pieces/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 tons (adjustable) 0-1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm







Plastic Pallet Machine Moulded Plastic Pallet Production Line 2

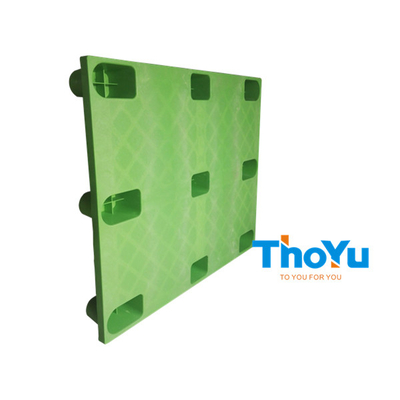

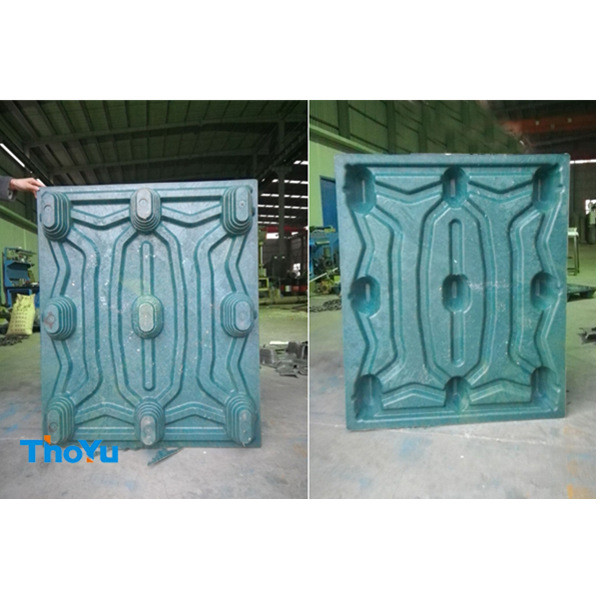

Features of Finished Moulded Plastic Pallet

1. Plastic pallet structure is stable, not easy to deformation. Plastic pallet is with long service life and is up to 8 -- 10 years.

2. Raw materials of the plastic pallet are polypropylene (PP) or high-density polyethylene, so it has excellent impact and bending performance.

3. Plastic pallet moisture, no mould, no worms, no decay, corrosion resistance. The plastic pallet is easy to clean, hygienic and durable and meets the requirements of health testing.

5. Plastic pallet is beautiful and clean, which is the best choice to enhance the company's warehousing image.

6. Plastic pallets salvage value is high, after the scrapped 1/3 salvage value, so the cost of bulk purchase is low. The plastic pallet is with high security, no nail, no burr, no sharp corners, to protect labour safety.



Plastic Pallet Machine Moulded Plastic Pallet Production Line 3
