No Fumigation Sugar Cane Bagasse Wood Pallet Making Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 30-60 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 10 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYYJ-1000

Detail Information

Product Name: Sugar Cane Bagasse Pallet Making Machine Machine Voltage: Customized
Total Power: 18.5 KW Number Of Hydraulic Cylinders: 4 Pieces
Pressure: 0-1000 Tons 24 Hours Capacity: 180 Pieces
High Light:

bagasse pallet making machine

,

wooden pallet making machine

,

sugar cane pallet making machine

Product Description

No Fumigation Sugar Cane Bagasse Pallet Making Machine



Sugar cane bagasse pallet making machine is a pallet production equipment to produce bagasse pallet. Sugar cane is one of the main raw materials for sugar production. After the sugar is extracted, the remaining bagasse is not as fibrous as wood and bamboo, but it is slightly better than rice and wheat straw.



Bagasse can be papermaking, plate making, and so on. At present our country already has a very high technology will bagasse instead of wood to become the manufacture of paper cups, mulch, paper catering utensils of raw materials, can reduce the felling of trees, protect the environment. And it can also make disposable utensils become a green environmental protection class of tableware.

No Fumigation Sugar Cane Bagasse Wood Pallet Making Machine 0

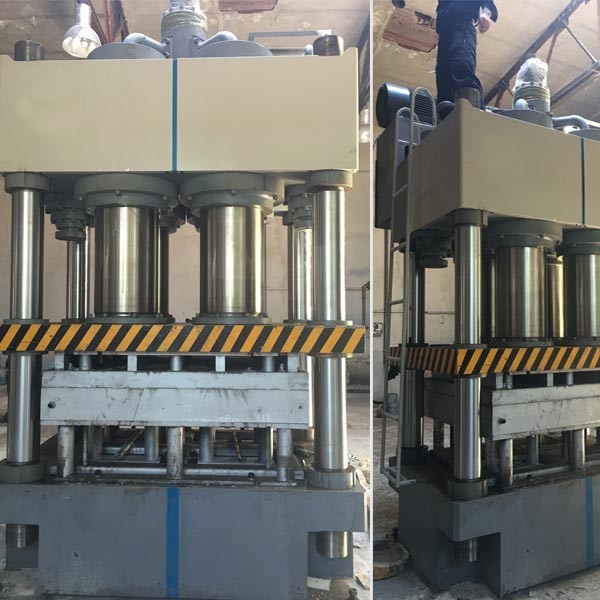

Sugar cane bagasse pallet making machine parameters



Sugar cane bagasse pallet making machine
Model TYYJ-1000 TYYJ-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pcs/day (24 hours) 240 pcs/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 tons (adjustable) 0-1200 tons (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm



No Fumigation Sugar Cane Bagasse Wood Pallet Making Machine 1



Sugar cane bagasse pallet making machine application



Wood pallet machine can recycle materials to pallets, such as bamboo, wood waste, waste pallet, coconut shells, etc.

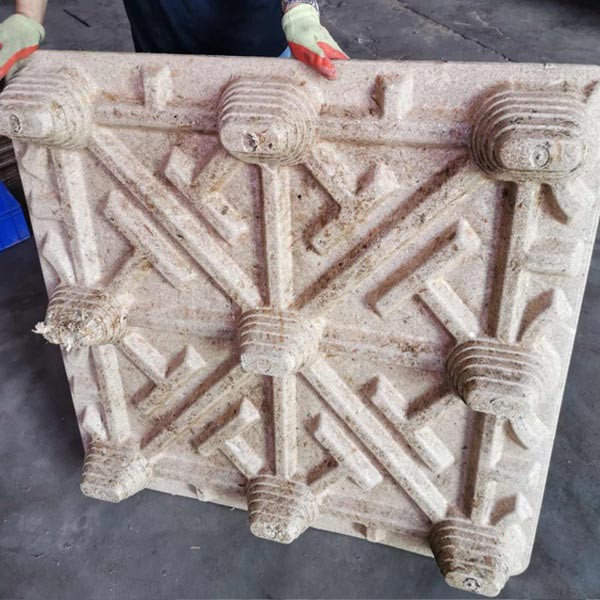

Sugar cane bagasse pallet features

  • 1. Green, environmental protection
    We produced the bagasse pallet that only contains natural bagasse and synthetics resins. The final bagasse pallets are molded pallets without nails, and they are reused and recycled. Besides, they do not poison the environment when they are broken. Additionally, the broken pallets are also the raw materials for the new pallets. Hence, it also meets the circular economy.
  • 2. Very low cost to make pallets
    The bagasse is the dry pulpy fibrous residue that remains after sugarcane or sorghum stalks are crushed to extract their juice. So the price of the raw material is very cheap, which also reduces the investment. Some sugar plants also have the problem that how to deal with bagasse. What’s more, bagasse pallets are also good products in the logistics and warehouse industry.
  • 3. Nested for space-saving
    The molded bagasse pallets save space up to 70%. For example, the height of 50 pieces of molded nestable pallets is about 2.73 meters. However, the height of 50 pieces of traditional wooden pallets is 7 meters.
  • 4. Easy to export
    Molded wood pallet machine builds the bagasse pallets with high pressure and high temperature. So they are one-time forming pallets. The final bagasse pallets meet ISPM15, and is ready for export. Hence, it will save a lot of time required for the customs clearance process. Free fumigation and popular in import and export transportation. And bagasse pallets also can reduce the clearance costs.
  • 5. Customized type size
    The size of our tested bagasse pallet is 1200*1000 mm. But, we also can design special molds for custom designs or sizes. Rounded one-piece design to prevent goods damage in the packaging and transportation process. And perfect reinforcing rib to enhance loading ability.

No Fumigation Sugar Cane Bagasse Wood Pallet Making Machine 2



No Fumigation Sugar Cane Bagasse Wood Pallet Making Machine 3
